The Hager 4P 630A load break switch provides reliable isolation and load switching for three‑phase+N systems. Rated 630A across AC21/AC22/AC23 with 26kA Icm and 13kA Icw (1s), it serves as main, maintenance or safety switch. Ui 1000V, Uimp 8kV, Ue 380-415V, 50-60Hz. Fixed built‑in with long rotary handle and interlocking, IP00. Handles 2×300 mm² cables. Operating −20 to 70°C. Ideal for industrial switchboards.
EAN
3250613114589
VPE
1 piece
Load break switch 3P 800A Icw 26kA Icm 48kA Long rotary handle HA458
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Terminal cover 4 product.page.accessories.products-available -
Auxiliary contact block 1 product.page.accessories.products-available -
Switch operating shaft 2 product.page.accessories.products-available -
Door coupling handle for switchgear 2 product.page.accessories.products-available -
Accessories/spare parts for low-voltage switch technology 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Electric current
-
Rated current IN630 A
-
Rated short-time withstand current Icw IEC 6094713 kA
-
Acceptable current rating AC21630 A
-
Acceptable current rating AC21 category A630 A
-
Acceptable current rating AC21 category B630 A
-
Acceptable current rating AC22 category A630 A
-
Acceptable current rating AC22 category B630 A
-
Acceptable current rating AC23 category A630 A
-
Acceptable current rating AC23 category B630 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-326 kA
-
Rated short-time withstand current Icw 1s IEC 6094713 kA
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Device construction typeFixed built-in
-
Type of pole4P
Dimensions
-
Height270 mm
-
Width160 mm
-
Depth315 mm
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Connection
-
Cross-section rigid conductor2x 300 mm²
-
Cross-section flexible conductor2x 300 mm²
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp8000 V
-
Rated operational voltage Ue380 - 415 V
Power
-
Power loss per pole at In30.90 W
-
Power dissipation at IN92.70 W
-
Rated operational power under 400 V AC AC1414000 W
-
Rated operational power under 400 V AC AC23225000 W
Controls and indicators
-
Motor drive integratedNo
Use conditions
-
Operating temperature-20 - 70 °C
Frequency
-
Frequency50 - 60 Hz
Functions
-
Is reversing switchNo
-
Version as emergency stop installationNo
-
Version as main switchYes
-
Version as maintenance/service switchYes
-
Version as safety switchYes
-
Version as switch disconnector compactYes
Equipment
-
Motor drive optionalNo
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Installation, mounting
-
Nominal tightening torque40 - 45 Nm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

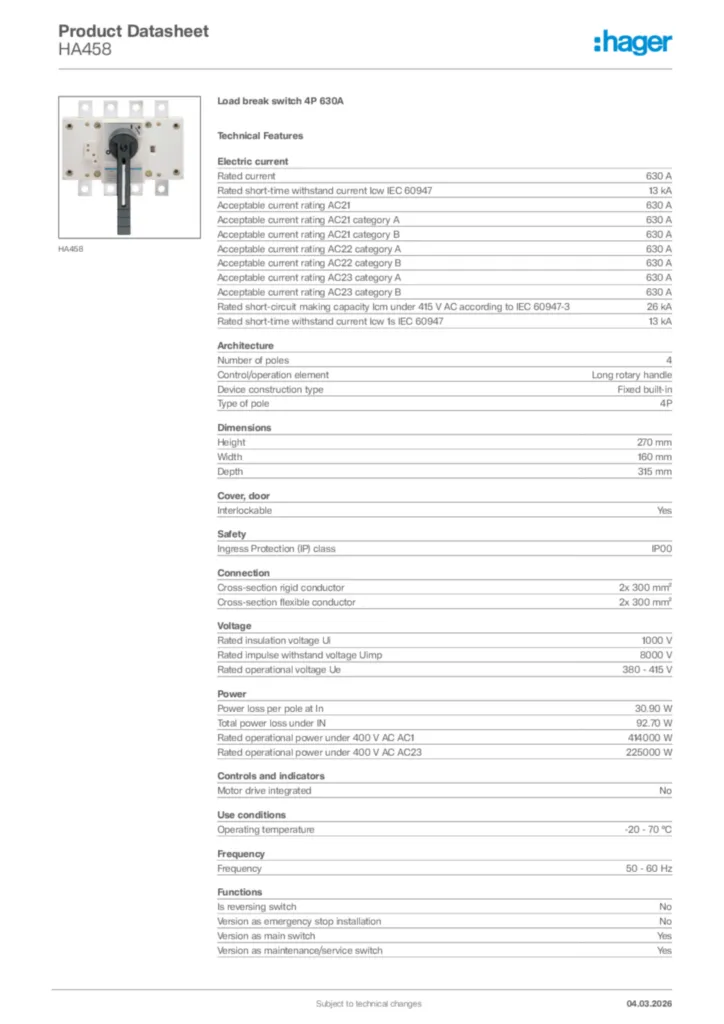

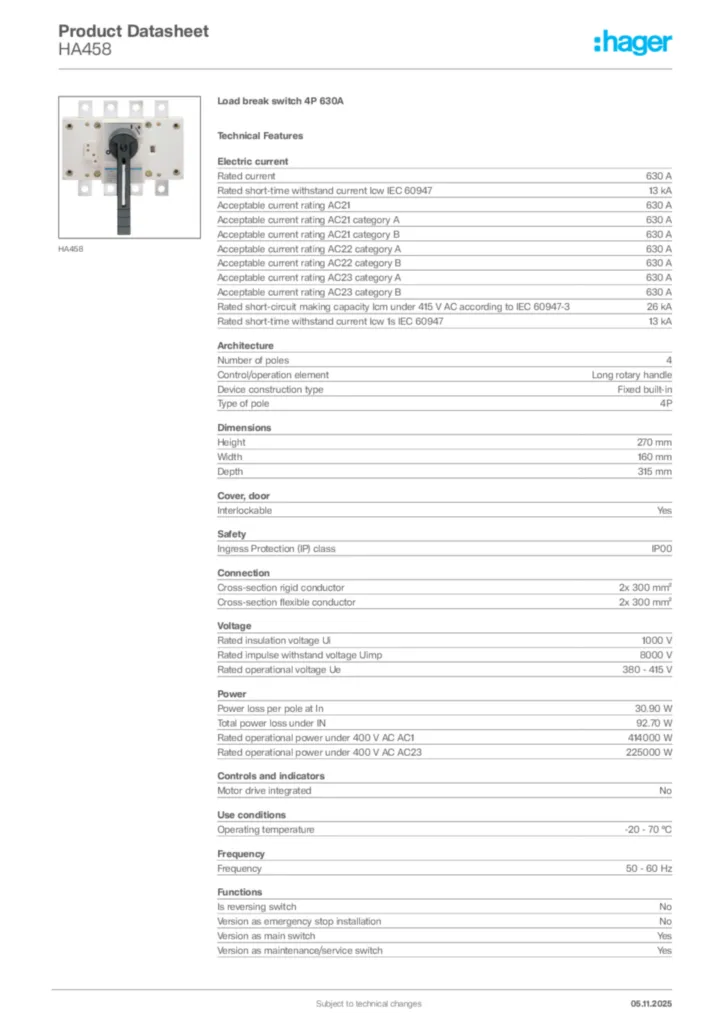

Hager Product data sheet HA458
