Load break switch 3P 100A HAD310

EAN
3250613140434
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Load break switch 3P 100A

HAD310

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Switch oper­ating shaft 3 products available
  • Auxil­iary contact block 2 products available
  • Door coup­ling handle for switchgear 1 products available
  • Terminal cover 1 products available

Complete your system

  • Switch oper­ating shaft
  • Auxil­iary contact block
  • Door coup­ling handle for switchgear
  • Terminal cover
  • HZC111

    Shaft extension N°5 150mm LBS 20-125A
    0.00 €  / *
  • HZC113

    Shaft extension N°5 320mm LBS 20-125A
    0.00 €  / *
  • HZC112

    Shaft extension N°5 200mm LBS 20-125A
    0.00 €  / *
  • HZC312

    Auxiliary contact 2C LBS 20-160A
    0.00 €  / *
  • HZC311

    Auxiliary contact 1C+1O LBS 20-160A
    0.00 €  / *
  • HZC011

    Grey handle LBS 100-125A
    0.00 €  / *
  • HZC215

    Terminal shrouds 3P LBS 100A-125A
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    100 A
  • Accept­able current rating AC21
    100 A
  • Accept­able current rating AC21 category A
    100 A
  • Accept­able current rating AC21 category B
    100 A
  • Accept­able current rating AC23 category A
    100 A
  • Rated short-­time with­stand current Icw 1s IEC 60947
    2.75 kA
  • Rated short-­time with­stand current Icw IEC 60947
    2.75 kA
Archi­tec­ture
  • Control/­op­er­a­tion element
    Short rotary handle
  • Number of poles
    3
Connec­tion
  • Cross-sec­tion rigid conductor
    70 mm²
Voltage
  • Rated insu­la­tion voltage Ui
    800 V
  • Rated impulse with­stand voltage Uimp
    8000 V
  • Rated oper­a­tional voltage Ue
    380 - 415 V
Power
  • Power loss per pole at In
    4.30 W
  • Total power loss under IN
    12.90 W
  • Rated oper­a­tional power under 400 V AC AC1
    65000 W
  • Rated oper­a­tional power under 400 V AC AC23
    45000 W
Install­a­tion, mounting
  • Nominal tight­ening torque
    4 - 4.4 Nm
Equip­ment
  • Motor drive optional
    No
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
Use condi­tions
  • Oper­ating temper­ature
    -20 - 70 °C
Cover, door
  • Inter­lock­able
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP20
Frequency
  • Frequency
    50 - 50 Hz
Connectivity
  • Type of connec­tion
    Screw terminal
Func­tions
  • Is reversing switch
    No
  • Version as emer­gency stop install­a­tion
    No
  • Version as main switch
    Yes
  • Version as main­ten­ance/ser­vice switch
    Yes
  • Version as safety switch
    Yes
  • Version as switch discon­nector compact
    Yes
Capa­city
  • Number of modules
    4.45

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration HAD310
PDF
Hager RoHS report HAD310
PDF

Downloads

  • Image HAD310 | Hager Africa

    Product Image HAD310

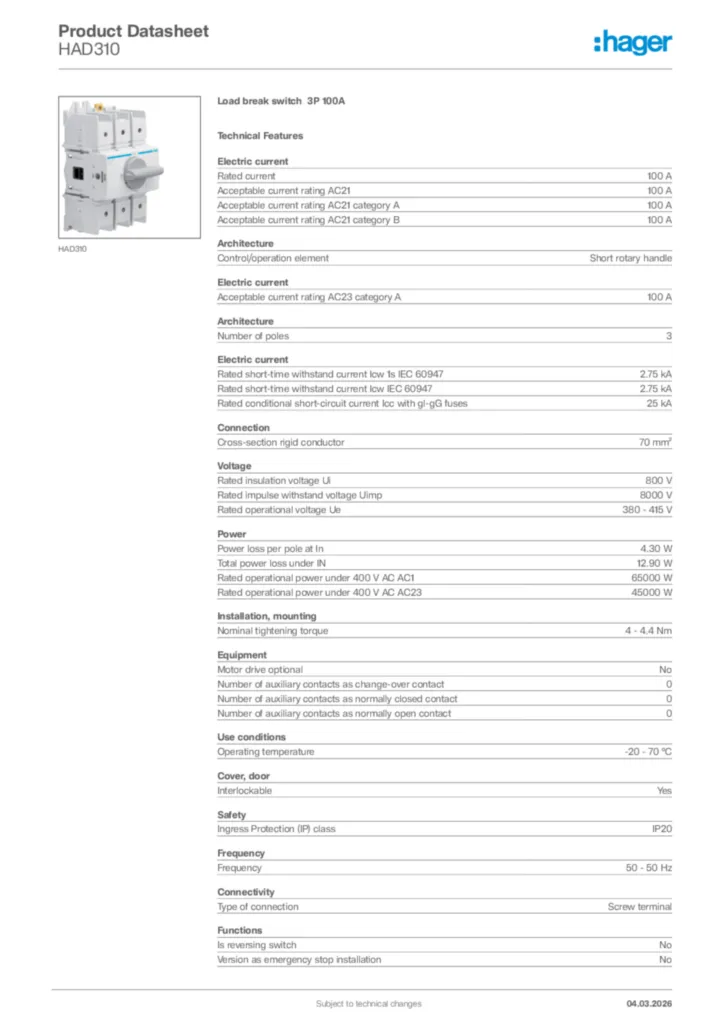

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2022-04-13

    PDF
    835,39 kB
    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2022-09-07

    PDF
    635,00 kB
