Load break switch 4P 80A HAC408

Accessories
Technical properties
Environmental value
Documentations
More products

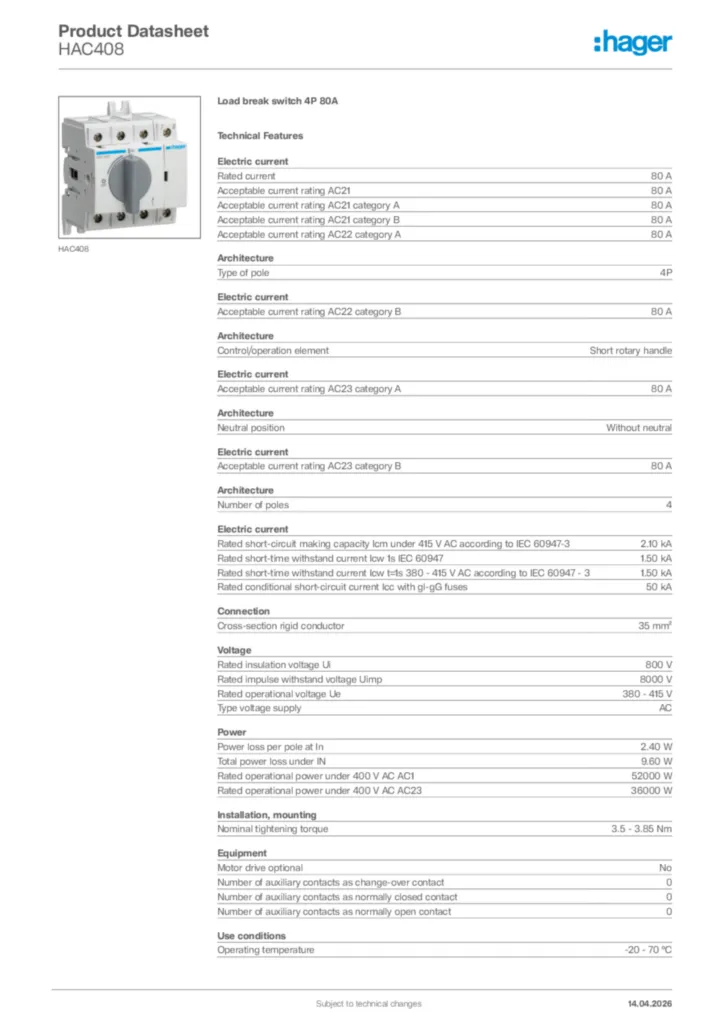

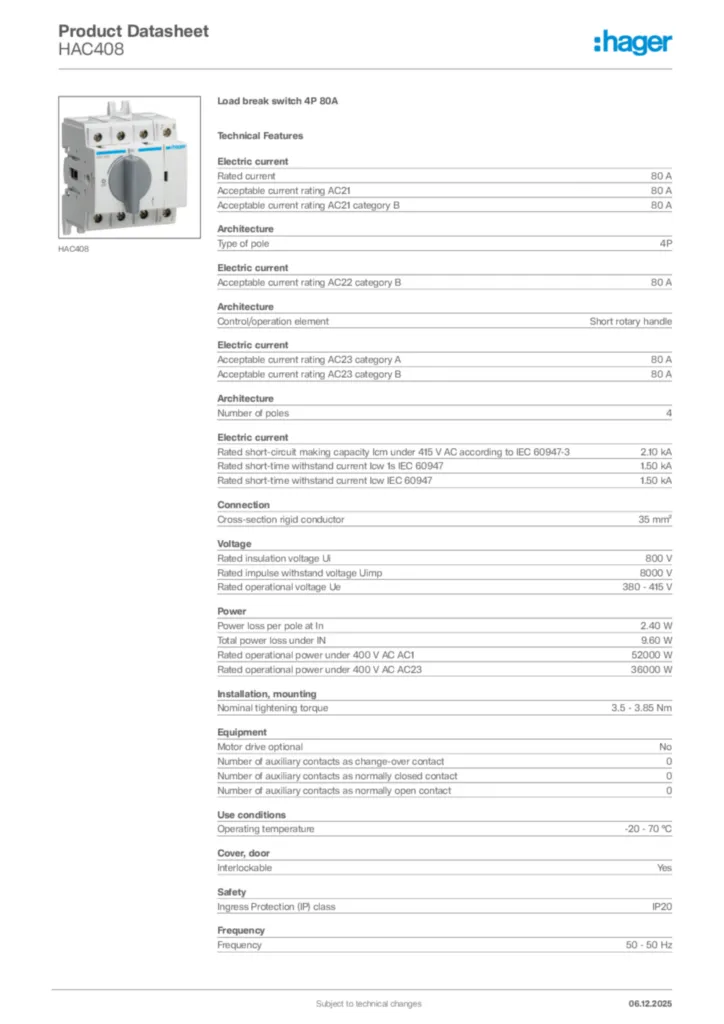

Download the data sheet

Complete your system

Switch operating shaft 3 products available
Terminal cover 1 products available
Door coupling handle for switchgear 1 products available
Auxiliary contact block 2 products available

Technical properties

Rated current

80 A
Acceptable current rating AC21

80 A
Acceptable current rating AC21 category B

80 A
Acceptable current rating AC22 category B

80 A
Acceptable current rating AC23 category A

80 A
Acceptable current rating AC23 category B

80 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

2.10 kA
Rated short-time withstand current Icw 1s IEC 60947

1.50 kA
Rated short-time withstand current Icw IEC 60947

1.50 kA

Type of pole

4P
Control/operation element

Short rotary handle
Number of poles

4

Cross-section rigid conductor

35 mm²

Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8000 V
Rated operational voltage Ue

380 - 415 V

Power loss per pole at In

2.40 W
Total power loss under IN

9.60 W
Rated operational power under 400 V AC AC1

52000 W
Rated operational power under 400 V AC AC23

36000 W

Nominal tightening torque

3.5 - 3.85 Nm

Motor drive optional

No
Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0

Operating temperature

-20 - 70 °C

Interlockable

Yes

Ingress Protection (IP) class

IP20

Frequency

50 - 50 Hz

Type of connection

Screw terminal

Is reversing switch

No
Version as emergency stop installation

No
Version as main switch

Yes
Version as maintenance/service switch

Yes
Version as safety switch

Yes
Version as switch disconnector compact

Yes

Number of modules

4

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
