The Hager HA7 80x120 light grey slotted panel trunking organises and protects wiring in control panels. Supplied with cover, its 80x120 mm section and 2 m length with 6/6.5 mm slots enable tidy cable routing and easy breakout. Made of PC-ABS, self-extinguishing UL94 V0, fire class M1, RAL7035. Rigid design (non-flexible) for clean, secure installations.
EAN
4012740199339
VPE
16 meters
Liféa trunking 30x30 PVC 2m Stone Grey IP40 IK07 pre-equipped couplers HA780120
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Spacer sleeve 2 product.page.accessories.products-available -
Wire clamp slotted cable duct system 1 product.page.accessories.products-available -
Draper hand riveter 3 product.page.accessories.products-available -
Screw rosette 1 product.page.accessories.products-available -
Shears for cutting trunking 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Height80 mm
-
Width120 mm
-
Length2000 mm
-
Slit width6 mm
-
Slot width6.50 mm
-
Inner cross-section7898 - 7898 mm²
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPC-ABS
-
ColourLight grey
-
RAL code7035
Functions
-
Is self-extinguishingYes
Standards
-
Flammability class according UL94V0
Safety
-
Fire resistance classM1
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Connectivity
-
Mounting typeScrew mounting, Rivet mounting
Installation, mounting
-
Mounting onMounting plate
Electric current
-
Is current leak stableYes
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

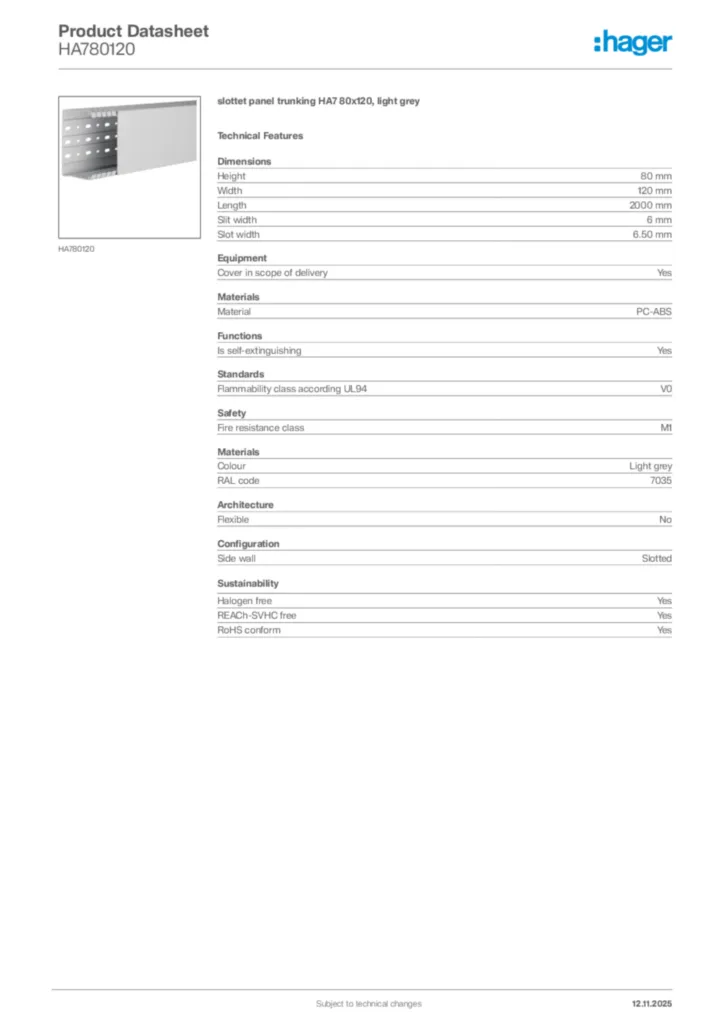

Hager Product data sheet HA780120
slottet panel trunking HA7 80x120, light grey
PDF -
ProductBimStep
Step Model HA780120
STEP files International 2026-04-15
STP859,34 kB -
ProductECDeclaration
Declaration of conformity en-GB 2026-08-07
PDF303,50 kB
