The Hager HA7 slotted panel trunking 25x80mm in light grey (RAL7035) organizes and protects wiring in switchboards and control panels. Halogen‑free PC‑ABS and self‑extinguishing performance enhance safety. Supplied with cover, 2 m length, 6 mm slits/6.5 mm slots enable easy cable breakout and neat routing. Rigid design ensures clean installation and durable cable management.
EAN
4012740859851
Packaging
24 Meters
BA7A Slotted panel trunking PVC 80x100mm 2m Self-extinguishing with cover HA725080
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Spacer sleeve 2 products available -
Wire clamp slotted cable duct system 1 products available -
Draper hand riveter 3 products available -
Screw rosette 1 products available -
Shears for cutting trunking 1 products available
Complete your system

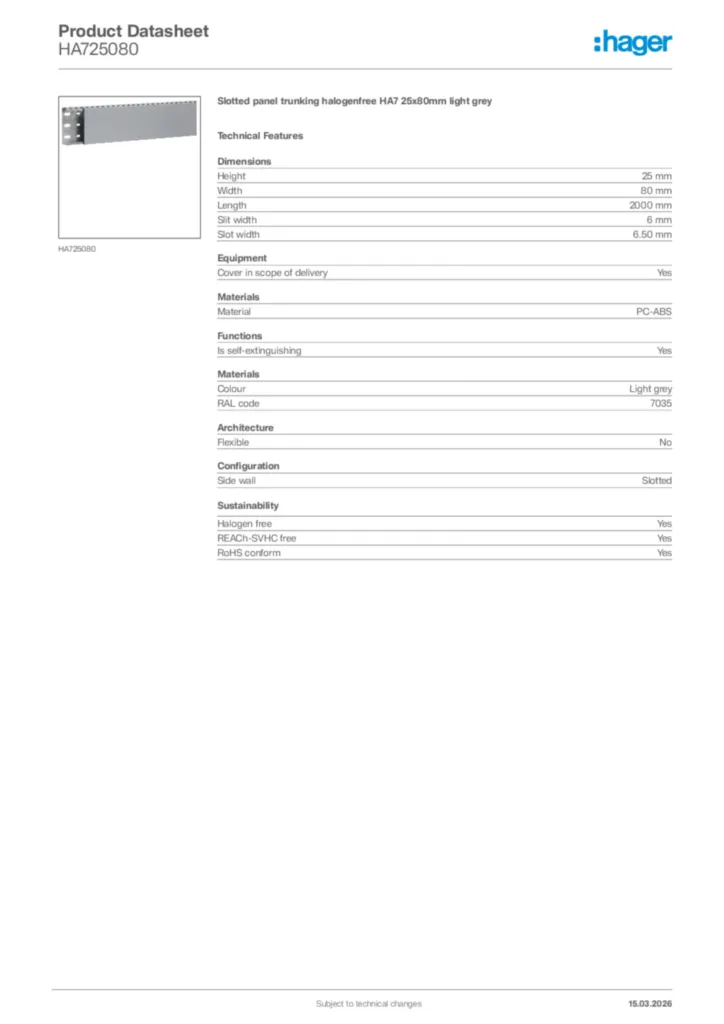

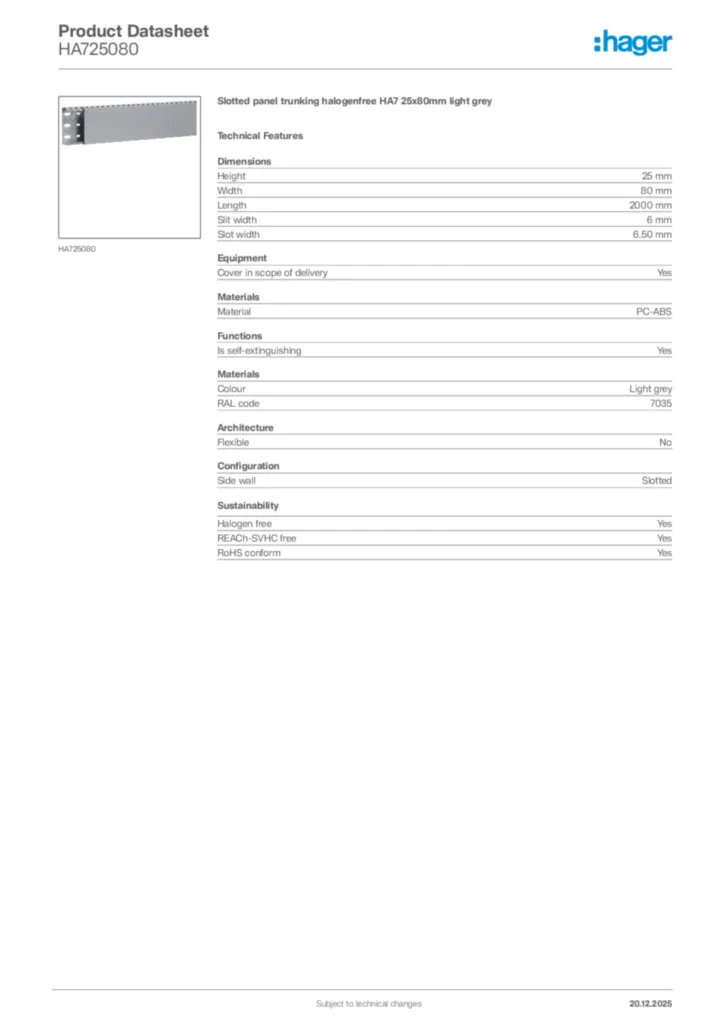

Technical properties
Dimensions
-
Height25 mm
-
Width80 mm
-
Length2000 mm
-
Slit width6 mm
-
Slot width6.50 mm
-
Inner cross-section642 - 642 mm²
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPC-ABS
-
ColourLight grey
-
RAL code7035
Functions
-
Is self-extinguishingYes
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Connectivity
-
Mounting typeScrew mounting
Installation, mounting
-
Mounting onMounting plate
Electric current
-
Is current leak stableYes
