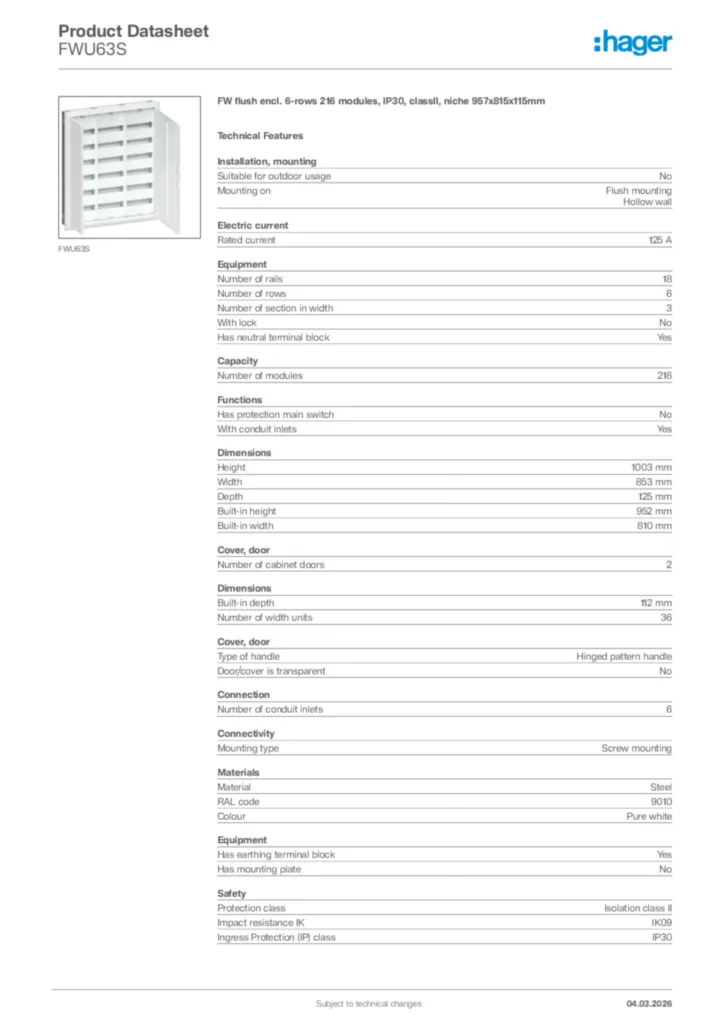

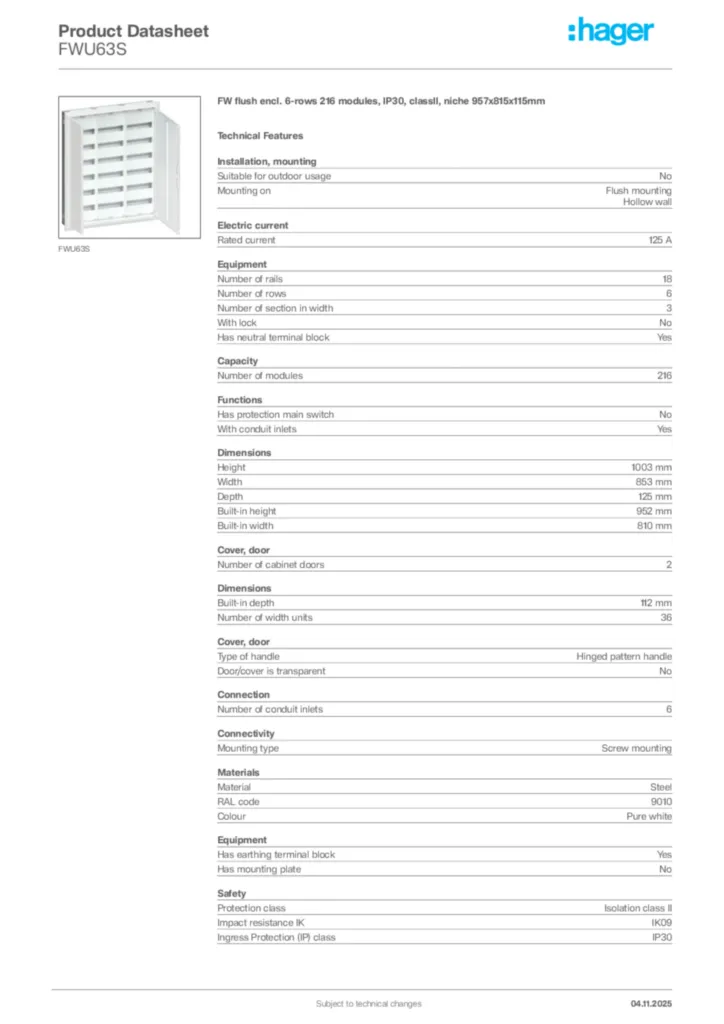

FW flush encl. 6-rows 216 modules, IP30, classII, niche 957x815x115mm FWU63S

EAN
3250612739721
Packaging
1 Piece

Complete your system

Optional accessories

  • See more (62)
    • Built-in field for tele­com­mu­nic­a­tions 6 products available
    • Rail terminal bar 4 products available
    • DIN rail 4 products available
    • Mounting accessories 4 products available
    • Lock system 11 products available
    • Cover strip 1 products available

    Technical properties

    Connec­tion
    • Number of conduit inlets
      6
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting, Hollow wall
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rails
      18
    • Number of rows
      6
    • Number of section in width
      3
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      216
    Func­tions
    • Has protec­tion main switch
      No
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      1003 mm
    • Width
      853 mm
    • Depth
      125 mm
    • Built-in height
      952 mm
    • Built-in width
      810 mm
    • Built-in depth
      112 mm
    • Number of width units
      36

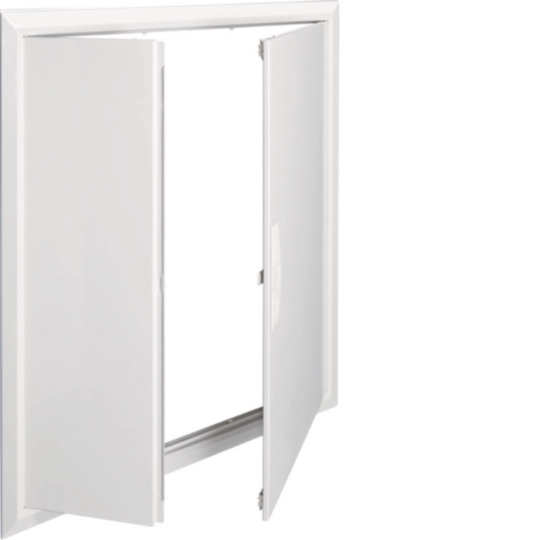

    Cover, door
    • Number of cabinet doors
      2
    • Type of handle
      Hinged pattern handle
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK09
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock
    • Glow wire test
      850 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Enclosures FWP, univers, IP44, SKII, 120PLE (english)
    PDF
    8,50 MB
    Hager REACH declaration FWU63S
    PDF
    Hager RoHS report FWU63S
    PDF
