    • FWU42GS
    The Hager FW flush enclosure (96 modules) with transparent single hinged door streamlines indoor distribution up to 125 A. Four rows on 8 rails across 2 sections maximise space for tidy wiring, with neutral and earth terminal blocks included. Class II, IP30, IK07 steel cabinet in RAL 9010. For flush or hollow-wall mounting into a 657x565x115 mm niche, ideal for residential and light commercial panels.
    EAN
    3250610660485
    Packaging
    1 Piece
    • FW flush-­mounted distri­bu­tion boards

    Flush enclosure 72M 3-row 6-rail 125A IP30 Class II transparent door FWU42GS

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Flush enclosure 72M 3-row 6-rail 125A IP30 Class II transparent door

    FWU42GS

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (24)
    • DIN rail 3 products available
    • Cover for install­a­tion duct 1 products available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 1 products available
    • Rail terminal bar 3 products available
    • Built-in field for tele­com­mu­nic­a­tions 3 products available
    • Lock system 4 products available

    Complete your system

    • DIN rail
    • Cover for install­a­tion duct
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Rail terminal bar
    • Built-in field for tele­com­mu­nic­a­tions
    • Lock system
    • Cover strip
    • Mounting accessories
    • Cover for distri­bu­tion board
    • Docu­ment holder
    • Gland plate for enclosure
    • Vent­il­a­tion plate
    • UT22C

      Insulated DIN rail, univers, 7, 5mm high, deep-adjustable until 21mm, 11, 5 mod. wide
      €0.00  / *
    • UN03FN

      Vertical uprights, univers FW, height 450mm, 2 pieces
      €0.00  / *
    • UN07FN

      Vertical uprights, univers FW, height 1050mm, 2 pieces
      €0.00  / *
    • FWU00P1

      Cable entry plate f. flush enclosure FWU
      €0.00  / *
    • FWU00V4

      Partition plate vertical for 4-rows FWU flush encl. height 650mm
      €0.00  / *
    • KM13A

      PE/N Terminal, universZ, 2x13 clamping points, 6x16/7x10 mm²
      €0.00  / *
    • KM25A

      PE/N Terminal, univers Z, 2x25 clamping points, 11x16/14x10 mm²
      €0.00  / *
    • KM05B

      PE/N Terminal, universZ, 4x5 clamping points, 2x6/2x10/1x25mm², with clamp for 25mm²
      €0.00  / *
    • UN31TN

      Kit, univers FW, media with perforated mounting plate, 450x250mm
      €0.00  / *
    • UN41TN

      Kit, univers FW, media with perforated mounting plate, 600x250mm
      €0.00  / *
    • UN42TN

      Kit, univers FW, media with perforated mounting plate, 600x500mm
      €0.00  / *
    • FZ451N

      Lock, univers, square 7mm, with 1 key, for enclosure IP44/54
      €0.00  / *
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
      €0.00  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
      €0.00  / *
    • FZ226

      Sealing cap, univers, for Door of IP44/54 enclosures
      €0.00  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm
      €0.00  / *
    • FZ279

      Deep-adjustment kit, 12 to 32mm, for frame of FW flush enclosure FWxxU.
      €0.00  / *
    • US32A1

      Cover plate, universN, 450x500mm, plain
      €0.00  / *
    • US42A1

      Cover plate, universN, 600x500mm, plain
      €0.00  / *
    • US11A3

      Cover plate, universN, 150x250mm, 1x12M, slot asymmetric
      €0.00  / *
    • US21A3

      Cover plate, universN, 300x250mm, 2x12M, slot distance 125mm
      €0.00  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive
      €0.00  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards
      €0.00  / *
    • FD00P5

      Kit, NewVegaD, universFW, with 2 aeration grids, for FD…, FWU...
      €0.00  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting, Hollow wall
    Elec­tric current
    • Rated current IN
      125 A
    Equip­ment
    • Number of rails
      8
    • Number of rows
      4
    • Number of section in width
      2
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      96
    Dimen­sions
    • Height
      703 mm
    • Width
      603 mm
    • Depth
      125 mm
    • Built-in height
      652 mm
    • Built-in width
      603 mm
    • Built-in depth
      112 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      1
    • Type of handle
      Hinged pattern handle
    • Door/­cover is trans­parent
      Yes
    • Cabinet door type
      Single door
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - FWB enclosure,UNIVERS range, 5-rows 180 modules (English)
    PDF
    49,47 MB
    REACH declaration FWU42GS
    PDF
    RoHS report FWU42GS
    PDF

    Downloads

    • Image FWU42GS | Hager Africa

      Product Image FWU42GS

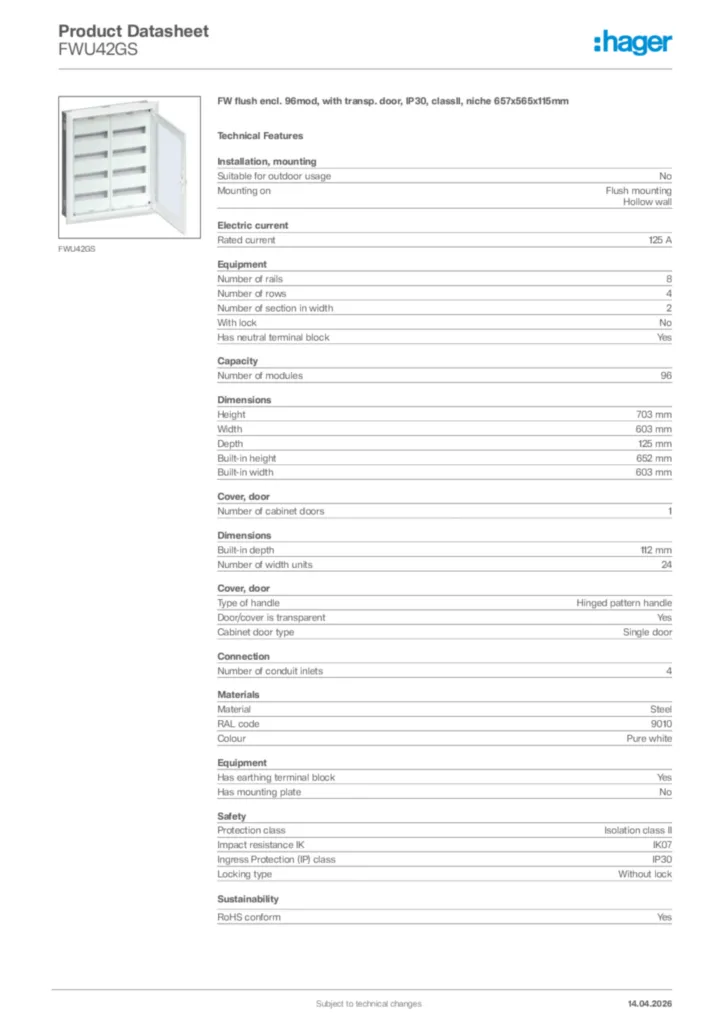

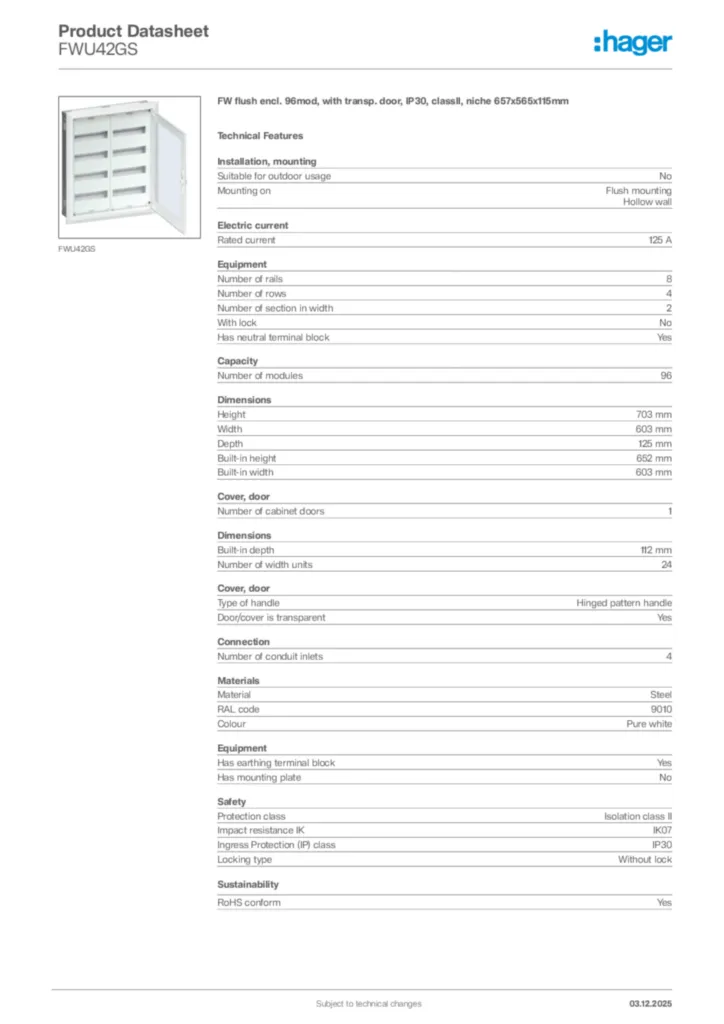

    • Product datasheet

      Image Hager Product data sheet FWU42GS | Hager Africa

      Hager Product data sheet FWU42GS

      FW flush encl. 96mod, with transp. door, IP30, classII, niche 657x565x115mm

      PDF

    • Handbook

      Image Handbook en-GB 2023-04-11 | Hager Africa

      Handbook en-GB 2023-04-11

      Flush boards and accessories (EN)

      PDF
      5,83 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
      Image Declaration of conformity en-GB 2026-07-22 | Hager Africa

      Declaration of conformity en-GB 2026-07-22

      PDF
      1,07 MB
      Image Declaration of conformity en-GB 2026-07-22 | Hager Africa

      Declaration of conformity en-GB 2026-07-22

      PDF
      532,42 kB
