    • FWU42D
    EAN
    3250610660232
    Packaging
    1 Piece
    • FW flush-­mounted distri­bu­tion boards

    FW flush encl. 2x4-rows, empty, IP30, classII, niche 657x565x115mm FWU42D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    FW flush encl. 2x4-rows, empty, IP30, classII, niche 657x565x115mm

    FWU42D

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (58)
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 2 products available
    • Lock system 11 products available
    • Cover strip 1 products available
    • Accessor­ies/s­pare parts for terminals 2 products available
    • Built-in field for tele­com­mu­nic­a­tions 4 products available
    • Rail terminal bar 4 products available

    Complete your system

    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Lock system
    • Cover strip
    • Accessor­ies/s­pare parts for terminals
    • Built-in field for tele­com­mu­nic­a­tions
    • Rail terminal bar
    • DIN rail
    • Panel for distri­bu­tion board
    • Cover for install­a­tion duct
    • Mounting plate for distri­bu­tion board
    • Door/­op­er­ating panel
    • Cover for distri­bu­tion board
    • Touch-up stick
    • Tapping screw
    • Mounting accessories
    • Vent­il­ator for enclosure
    • Gland plate for enclosure
    • Docu­ment holder
    • ZZ10H

      Partition, univers Z, horizontal, 1-field width

      0.00 €  / *
    • FWU00V4

      Partition plate vertical for 4-rows FWU flush encl. height 650mm

      0.00 €  / *
    • FZ453N

      Lock, univers, cylinder Nr.455, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ452N

      Lock, univers, cylinder Nr.405, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ451N

      Lock, univers, square 7mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ598N

      Door shield with handle, for enclosure univers IP44

      0.00 €  / *
    • FZ821N

      Lock, univers, square 8mm with seal cover, for enclosure IP44, with 1 key

      0.00 €  / *
    • FZ822N

      Lock, univers, square 7mm with seal cover, for enclosure IP44, with 1 key

      0.00 €  / *
    • FZ823N

      Lock, univers, plastic slot with seal cover for enclosure IP44

      0.00 €  / *
    • FZ824N

      Lock, univers, cylinder Nr.1242E with seal cover and 2 keys

      0.00 €  / *
    • FZ226

      Sealing cap, univers, for Door of IP44/54 enclosures

      0.00 €  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm

      0.00 €  / *
    • KN00A

      Terminal carrier, QC, universal adapter

      0.00 €  / *
    • UZ00K1

      Connection support, univers, for DIN rail mounting of QuickConnect modules

      0.00 €  / *
    • UN31TN

      Kit, univers FW, media with perforated mounting plate, 450x250mm

      0.00 €  / *
    • UN41TN

      Kit, univers FW, media with perforated mounting plate, 600x250mm

      0.00 €  / *
    • UN42TN

      Kit, univers FW, media with perforated mounting plate, 600x500mm

      0.00 €  / *
    • UM41UK

      Kit with plastic mounting plates for Multimedia applications, 600x250mm

      0.00 €  / *
    • KM13A

      PE/N Terminal, universZ, 2x13 clamping points, 6x16/7x10 mm²

      0.00 €  / *
    • KM22A

      PE/N Terminal, univers Z, 2x22 clamping points, 10x16/12x10 mm²

      0.00 €  / *
    • KM25A

      PE/N Terminal, univers Z, 2x25 clamping points, 11x16/14x10 mm²

      0.00 €  / *
    • KM05B

      PE/N Terminal, universZ, 4x5 clamping points, 2x6/2x10/1x25mm², with clamp for 25mm²

      0.00 €  / *
    • UT22C

      Insulated DIN rail, univers, 7, 5mm high, deep-adjustable until 21mm, 11, 5 mod. wide

      0.00 €  / *
    • U842B

      DIN rail, universZ, 35x248x7, 5mm, galvanized steel

      0.00 €  / *
    • UN03FN

      Vertical uprights, univers FW, height 450mm, 2 pieces

      0.00 €  / *
    • UN04FN

      Vertical uprights, univers FW, height 600mm, 2 pieces

      0.00 €  / *
    • UN07FN

      Vertical uprights, univers FW, height 1050mm, 2 pieces

      0.00 €  / *
    • UW41U

      Equipment unit, univers FW, with DIN rails, for FW flush encl.4rows, 600x250mm, QC

      0.00 €  / *
    • FWU00P1

      Cable entry plate f. flush enclosure FWU

      0.00 €  / *
    • FWU00F1

      Association kit for univers FW enclosures, horizontal or vertical

      0.00 €  / *
    • UZ31M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm

      0.00 €  / *
    • UZ32M5

      Mounting plate univers, for telcommunication, 2field, for enclosure height 500mm

      0.00 €  / *
    • UZ41M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 650mm

      0.00 €  / *
    • UZ42M5

      Mounting plate univers, for telcommunication, 2field, for enclosure height 650mm

      0.00 €  / *
    • UZ21M6

      Mounting plate, univers, 240x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ31M6

      Mounting plate, univers, 390x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ41M6

      Mounting plate, univers, 570x247mm, perforated, with mounting screws

      0.00 €  / *
    • FZ104N

      Door, univers, right, transparent, for enclosure H:650xW:550mm

      0.00 €  / *
    • FZ142F

      Frame, univers FW, with plain door, IP30, 90SL, RAL9010 for FWU42.., height 13mm

      0.00 €  / *
    • US31A3

      Cover plate, universN, 450x250mm, 3x12M, slot distance 125mm

      0.00 €  / *
    • US41A5

      Cover plate, universN, 600x250mm, 4x12M, slot distance 125mm

      0.00 €  / *
    • US31A1

      Cover plate, universN, 450x250mm, plain

      0.00 €  / *
    • US32A1

      Cover plate, universN, 450x500mm, plain

      0.00 €  / *
    • US41A1

      Cover plate, universN, 600x250mm, plain

      0.00 €  / *
    • US42A1

      Cover plate, universN, 600x500mm, plain

      0.00 €  / *
    • US11A3

      Cover plate, universN, 150x250mm, 1x12M, slot asymmetric

      0.00 €  / *
    • US21A3

      Cover plate, universN, 300x250mm, 2x12M, slot distance 125mm

      0.00 €  / *
    • FZ791N

      Touch-up pencil, 9ml, color RAL 9010

      0.00 €  / *
    • UZ100

      Self tapping screws, universN, 4, 2x9, 5mm, 100 pieces

      0.00 €  / *
    • VZ405N

      Mounting kit for hollow wall, Volta, VegaD, FWU, for wall box fixation, 4 pcs.

      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces

      0.00 €  / *
    • UZ01V2

      Support, universZ, simple, for cable bracket, 20 pieces

      0.00 €  / *
    • FZ279

      Deep-adjustment kit, 12 to 32mm, for frame of FW flush enclosure FWxxU.

      0.00 €  / *
    • FD00P5

      Kit, NewVegaD, universFW, with 2 aeration grids, for FD…, FWU...

      0.00 €  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards

      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive

      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      703 mm
    • Width
      603 mm
    • Depth
      125 mm
    • Thick­ness of side­wall
      1 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP30
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      Without lock
    • Impact resist­ance IK
      IK09
    Equip­ment
    • Number of section in width
      2
    • Number of flange plate open­ings
      4
    • Number of rows
      4
    Install­a­tion, mounting
    • Mounting on
      Flush mounting, Hollow wall
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      125 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    FWB enclosure,UNIVERS range, 5-rows 180 modules
    PDF
    49,47 MB
    REACH declaration FWU42D
    PDF
    Hager RoHS report FWU42D
    PDF

    Downloads

    • Image FWU42D  | Hager Africa

      Product Image FWU42D

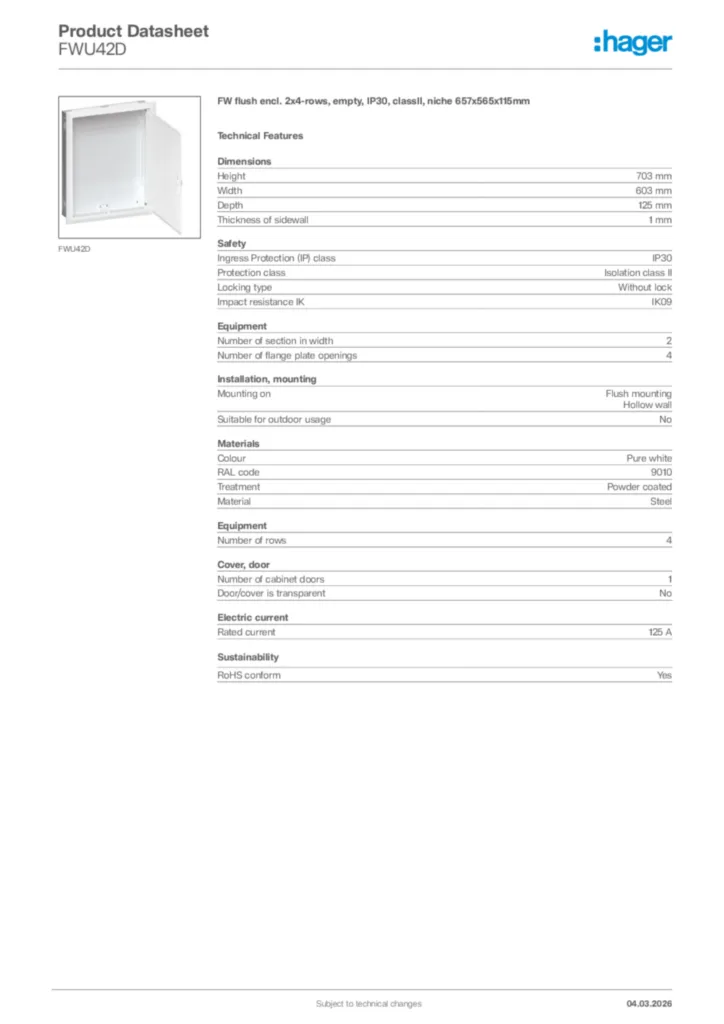

    • Product datasheet

      Image Hager Product data sheet FWU42D  | Hager Africa

      Hager Product data sheet FWU42D

      FW flush encl. 2x4-rows, empty, IP30, classII, niche 657x565x115mm

      PDF
    • Handbook

      Image Handbook en-GB 2023-04-11  | Hager Africa

      Handbook en-GB 2023-04-11

      PDF
      5,83 MB
    • Declaration of conformity

      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-08-29

      PDF
      143,25 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2021-01-08

      PDF
      289,50 kB
