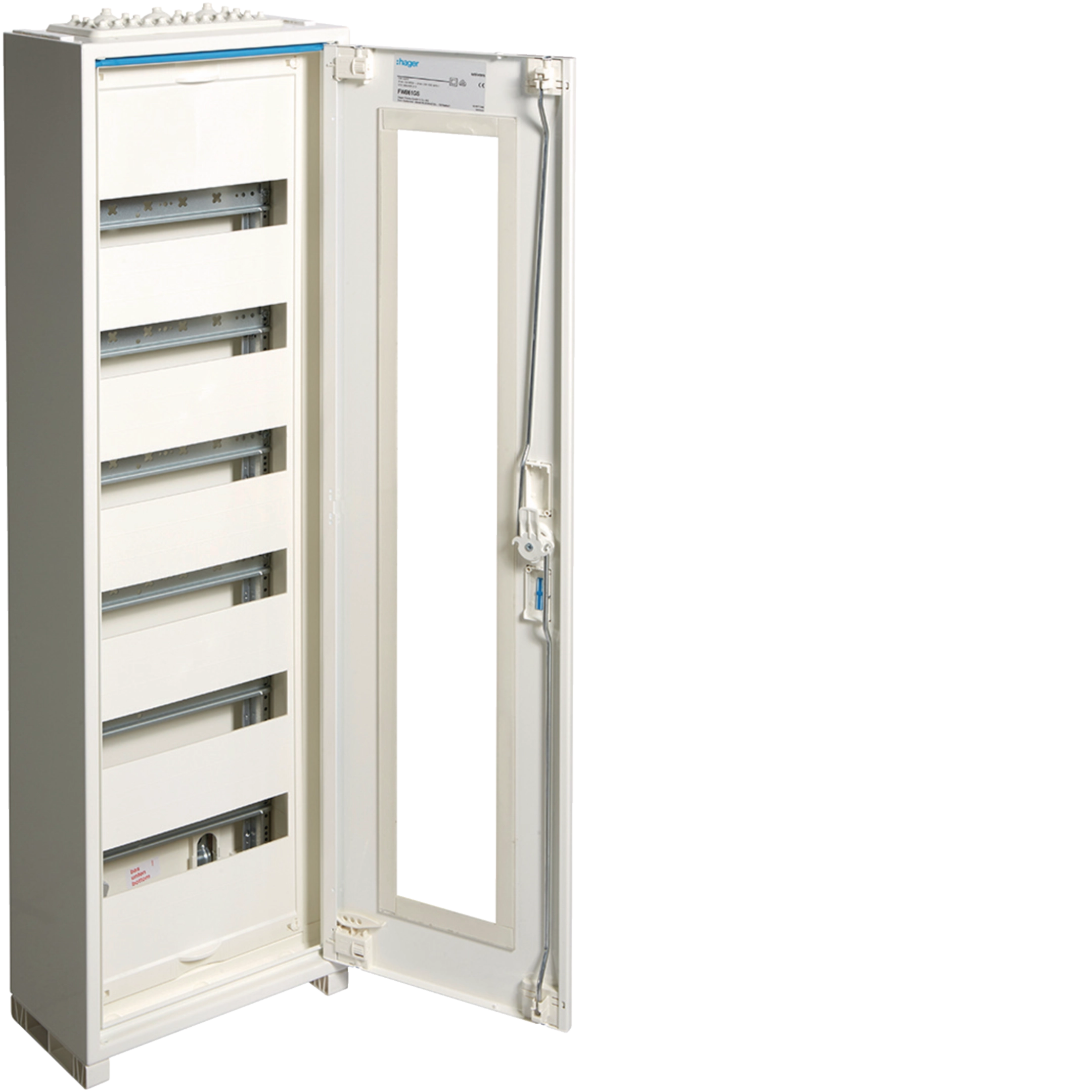

The Hager FWB universal surface-mount enclosure with transparent single door is a robust indoor distribution solution. Rated 125A, Class II and IP44/IK07, it protects against dust and splashes. With 6 rows/72 modules (6 rails), N and PE terminal blocks, 4 conduit inlets and latch handle, it simplifies wiring and expansion. Steel RAL9010 body, 950×300×161 mm, ideal for neat residential or commercial panels.
EAN
3250612737727
Packaging
1 Piece
Surface-mount steel enclosure IP44 Class II 5-row 60M 125A 800x300x161 FWB61GS
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Separation plate for meter/distribution boards 2 products available -
Mounting plate for distribution board 6 products available -
Built-in field for telecommunications 2 products available -
Rail terminal bar 3 products available -
Gland plate for enclosure 3 products available -
Lock system 4 products available
Complete your system
-
UZ31M5
Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm
-
UZ21M6Mounting plate, univers, 240x247mm, perforated, with mounting screws
-
UZ31M6Mounting plate, univers, 390x247mm, perforated, with mounting screws
-
UZ41M6Mounting plate, univers, 570x247mm, perforated, with mounting screws
-
UZ51M6Mounting plate, univers, 720x247mm, perforated, with mounting screws
-
UZ61M6Mounting plate, univers, 870x247mm, perforated, with mounting screws
Technical properties
Connection
-
Number of conduit inlets4
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN125 A
Equipment
-
Number of rails6
-
Number of rows6
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules72
Functions
-
With conduit inletsYes
Dimensions
-
Height950 mm
-
Width300 mm
-
Depth165 mm
-
Built-in height950 mm
-
Built-in width300 mm
-
Built-in depth161 mm
-
Number of width units12
Cover, door
-
Number of cabinet doors1
-
Number of locks1
-
Type of handleLatch
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialSteel
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP44
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

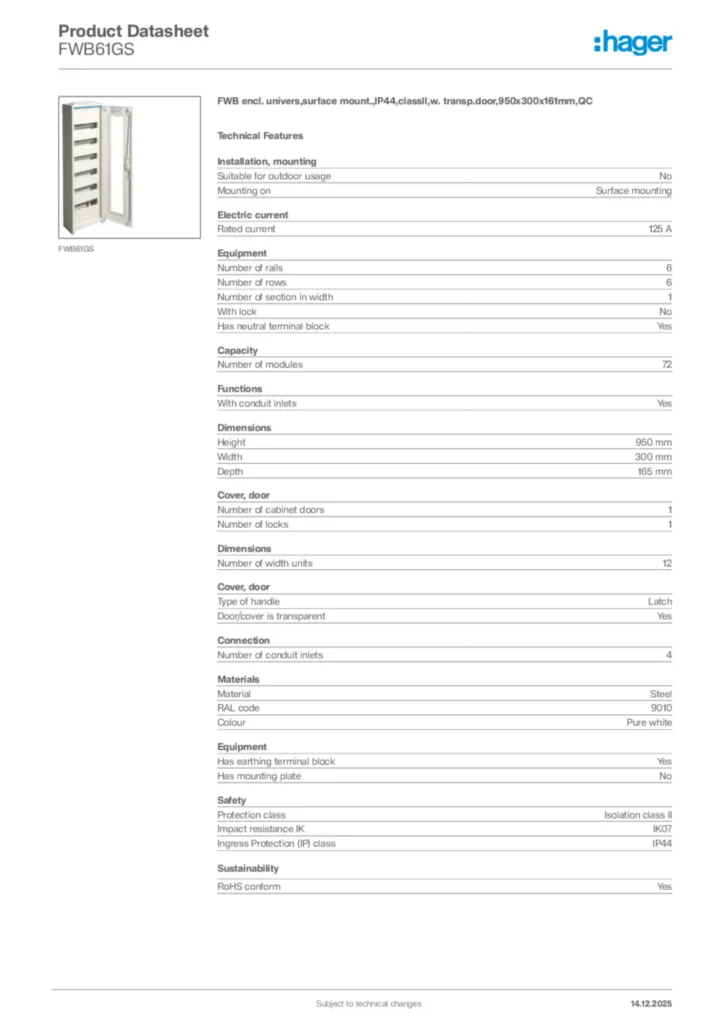

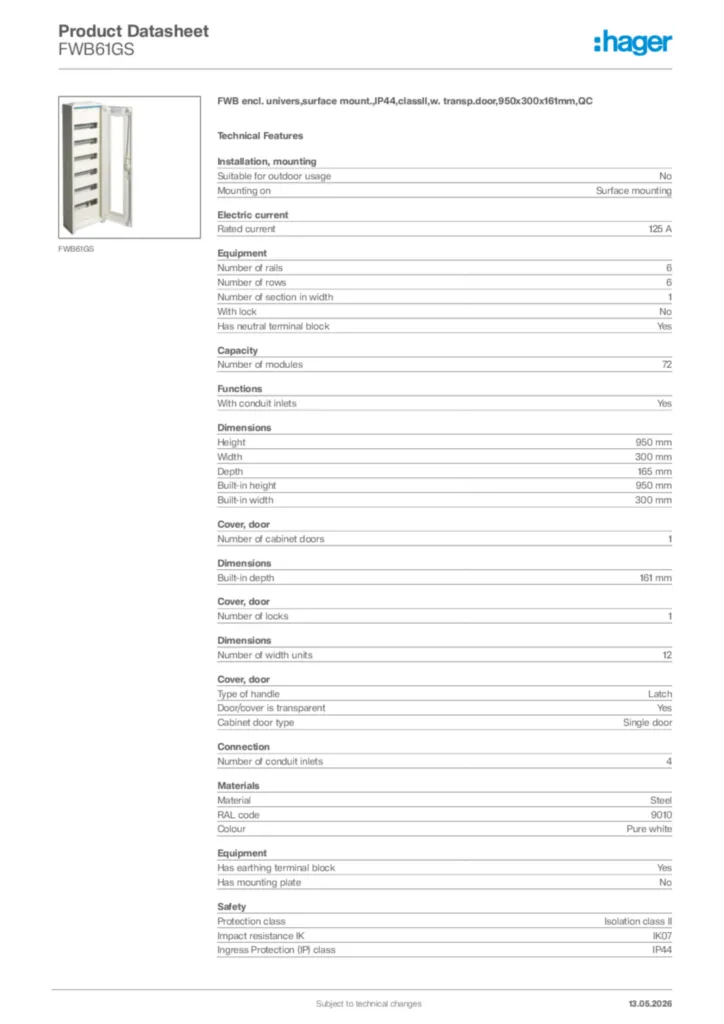

Product datasheet
Hager Product data sheet FWB61GS
FWB encl. univers,surface mount.,IP44,classII,w. transp.door,950x300x161mm,QC
PDF -
Instruction manual
Mounting instruction for Quickconnect terminal universZ
VZxxx / KNxxx
PDF673,51 kB -
Installation manual
Mounting instruction for FWB / FP / ZB enclosure
Wall- / door- and flange mounting
PDF1,88 MB -
Handbook
6LE007924C_ENSurface boards and accessories (EN)
PDF34,45 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-05-12
PDF332,34 kB
Declaration
Declaration of conformity International 2022-03-09
PDF1,44 MB
Declaration of conformity en-GB 2026-07-22
PDF1,07 MB
Declaration of conformity en-GB 2026-07-22
PDF951,28 kB
