    The Hager univers FWB surface-mounted enclosure delivers robust indoor distribution for up to 96 modules across 4 rows (8 rails, 24 MU/row). Rated 125 A, IP44 and Class II for safety. Steel body in RAL 9010 with transparent single door and latch for quick inspection. Includes neutral and earth terminal blocks and 8 conduit inlets. Dimensions 650 x 550 x 161 mm. Ideal for residential and commercial panels.
    EAN
    3250612736744
    VPE
    1 piece
    • FW surface-­mounted distri­bu­tion board

    Universal enclosure FWB surface mount IP44 Class II transparent door 72M 3-row FWB42GS

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Universal enclosure FWB surface mount IP44 Class II transparent door 72M 3-row

    FWB42GS

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (30)
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 2 product.page.accessories.products-available
    • Mounting plate for distri­bu­tion board 5 product.page.accessories.products-available
    • Built-in field for tele­com­mu­nic­a­tions 3 product.page.accessories.products-available
    • Rail terminal bar 3 product.page.accessories.products-available
    • Mounting accessories 1 product.page.accessories.products-available
    • Gland plate for enclosure 3 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Mounting plate for distri­bu­tion board
    • Built-in field for tele­com­mu­nic­a­tions
    • Rail terminal bar
    • Mounting accessories
    • Gland plate for enclosure
    • Lock system
    • Cover strip
    • DIN rail
    • Cover for distri­bu­tion board
    • Trans­ition cover section for install­a­tion duct
    • UZ01F1

      Partition horizontal for FWB/FWQ surface encl., 1 section, screwable
      €0.00  / *
    • UZ40F1

      Partition vertical for FWB/FWQ surface encl. 650mm high, screwable
      €0.00  / *
    • UZ31M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm
      €0.00  / *
    • UZ32M5

      Mounting plate univers, for telcommunication, 2field, for enclosure height 500mm
      €0.00  / *
    • UZ21M6

      Mounting plate, univers, 240x247mm, perforated, with mounting screws
      €0.00  / *
    • UZ31M6

      Mounting plate, univers, 390x247mm, perforated, with mounting screws
      €0.00  / *
    • UZ41M6

      Mounting plate, univers, 570x247mm, perforated, with mounting screws
      €0.00  / *
    • UN41TN

      Kit, univers FW, media with perforated mounting plate, 600x250mm
      €0.00  / *
    • UN42TN

      Kit, univers FW, media with perforated mounting plate, 600x500mm
      €0.00  / *
    • UM41UK

      Kit with plastic mounting plates for Multimedia applications, 600x250mm
      €0.00  / *
    • KM13A

      PE/N Terminal, universZ, 2x13 clamping points, 6x16/7x10 mm²
      €0.00  / *
    • KM25A

      PE/N Terminal, univers Z, 2x25 clamping points, 11x16/14x10 mm²
      €0.00  / *
    • KM05B

      PE/N Terminal, universZ, 4x5 clamping points, 2x6/2x10/1x25mm², with clamp for 25mm²
      €0.00  / *
    • FZ799N

      Fixation lug for pre-handing on wall rail FZ890N
      €0.00  / *
    • FZ460N

      Cable entry plate, univers, IP44/54, 6 x M16, 2 x M20, 2 x M16/25 1 x M25/40/50
      €0.00  / *
    • FZ466N

      Cable entry plate, univers, IP44/54 with 15 x M16 and 4 x M20 precuts
      €0.00  / *
    • FZ468N

      Cable entry plate, univers, IP44/54, w/o precuts
      €0.00  / *
    • FZ451N

      Lock, univers, square 7mm, with 1 key, for enclosure IP44/54
      €0.00  / *
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
      €0.00  / *
    • FZ449N

      Lock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
      €0.00  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
      €0.00  / *
    • FZ821N

      Lock, univers, square 8mm with seal cover, for enclosure IP44, with 1 key
      €0.00  / *
    • FZ823N

      Lock, univers, plastic slot with seal cover for enclosure IP44
      €0.00  / *
    • FZ824N

      Lock, univers, cylinder Nr.1242E with seal cover and 2 keys
      €0.00  / *
    • FZ226

      Sealing cap, univers, for Door of IP44/54 enclosures
      €0.00  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm
      €0.00  / *
    • UT22B

      Insulated DIN rail, univers, 7, 5mm, deep-recessed 31mm, 11 modules wide (198mm)
      €0.00  / *
    • UT22C

      Insulated DIN rail, univers, 7, 5mm high, deep-adjustable until 21mm, 11, 5 mod. wide
      €0.00  / *
    • US42A1

      Cover plate, universN, 600x500mm, plain
      €0.00  / *
    • FZ441

      cable cover, 1-section, wall fixation, Hx W x D195 x 300 x 155mm, RAL9010
      €0.00  / *

    Technical characteristics

    Connec­tion
    • Number of conduit inlets
      8
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current IN
      125 A
    Equip­ment
    • Number of rails
      8
    • Number of rows
      4
    • Number of section in width
      2
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      96
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      650 mm
    • Width
      550 mm
    • Depth
      165 mm
    • Built-in height
      650 mm
    • Built-in width
      550 mm
    • Built-in depth
      161 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Type of handle
      Latch
    • Door/­cover is trans­parent
      Yes
    • Cabinet door type
      Single door
    Connectivity
    • Mounting type
      Surface mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Ingress Protec­tion (IP) class
      IP44

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - FWB enclosure,UNIVERS range, 5-rows 180 modules (English)
    PDF
    3,70 MB
    REACH declaration FWB42GS
    PDF
    RoHS report FWB42GS
    PDF

    Downloads

    • Image FWB42GS | Hager UK

      Product Image FWB42GS

    • GeneratedProductDatasheet

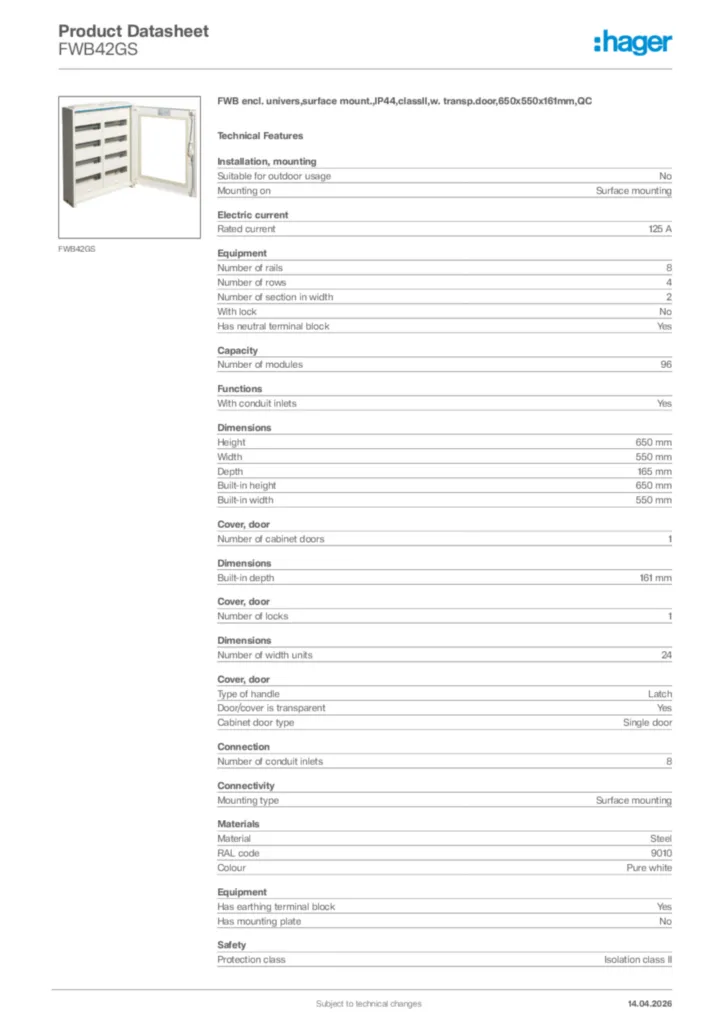

      Image Hager Product data sheet FWB42GS | Hager UK

      Hager Product data sheet FWB42GS

      FWB encl. univers,surface mount.,IP44,classII,w. transp.door,650x550x161mm,QC

      PDF

    • ProductNotice

      Image Mounting instruction for Quickconnect terminal universZ | Hager UK

      Mounting instruction for Quickconnect terminal universZ

      VZxxx / KNxxx

      PDF
      673,51 kB

    • ProductInstallationManual

      Image Mounting instruction for FWB / FP / ZB enclosure | Hager UK

      Mounting instruction for FWB / FP / ZB enclosure

      Wall- / door- and flange mounting

      PDF
      1,88 MB

    • ProductManuals

      Image 6LE007924C_EN | Hager UK


      6LE007924C_EN

      Surface boards and accessories (EN)

      PDF
      34,45 MB

    • ProductECDeclaration

      Image Declaration | Hager UK

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration | Hager UK

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
      Image Declaration of conformity en-GB 2026-07-22 | Hager UK

      Declaration of conformity en-GB 2026-07-22

      PDF
      1,07 MB
      Image Declaration of conformity en-GB 2026-07-22 | Hager UK

      Declaration of conformity en-GB 2026-07-22

      PDF
      951,28 kB
