The Hager FWB universal surface-mount enclosure delivers safe, organized indoor distribution up to 125 A. Offering 3 rows (36 modules each, 108 total) over 9 rails, it suits large assemblies. IP44, Class II and IK07 ensure solid protection. Features 12 conduit inlets, neutral and earth terminals, and a transparent asymmetrical latched door. Steel, RAL9010, pure white. Dimensions: 500×800×161 mm.
EAN
3250612737642
VPE
1 piece
Universal enclosure surface mount IP44 Class II 7rows 252M 1100x800 transp. door FWB33GS
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Separation plate for meter/distribution boards 3 product.page.accessories.products-available -
Mounting plate for distribution board 4 product.page.accessories.products-available -
Built-in field for telecommunications 3 product.page.accessories.products-available -
Rail terminal bar 3 product.page.accessories.products-available -
Mounting accessories 1 product.page.accessories.products-available -
Gland plate for enclosure 3 product.page.accessories.products-available
product.page.accessories.title-modal
-
UZ31M5
Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm
-
UZ32M5Mounting plate univers, for telcommunication, 2field, for enclosure height 500mm
-
UZ21M6Mounting plate, univers, 240x247mm, perforated, with mounting screws
-
UZ31M6Mounting plate, univers, 390x247mm, perforated, with mounting screws
Technical characteristics
Connection
-
Number of conduit inlets12
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN125 A
Equipment
-
Number of rails9
-
Number of rows3
-
Number of section in width3
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules108
Functions
-
With conduit inletsYes
Dimensions
-
Height500 mm
-
Width800 mm
-
Depth165 mm
-
Built-in height500 mm
-
Built-in width800 mm
-
Built-in depth161 mm
-
Number of width units36
Cover, door
-
Number of cabinet doors1
-
Number of locks1
-
Type of handleLatch
-
Door/cover is transparentYes
-
Cabinet door typeDouble door, asymmetric
Materials
-
MaterialSteel
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP44
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

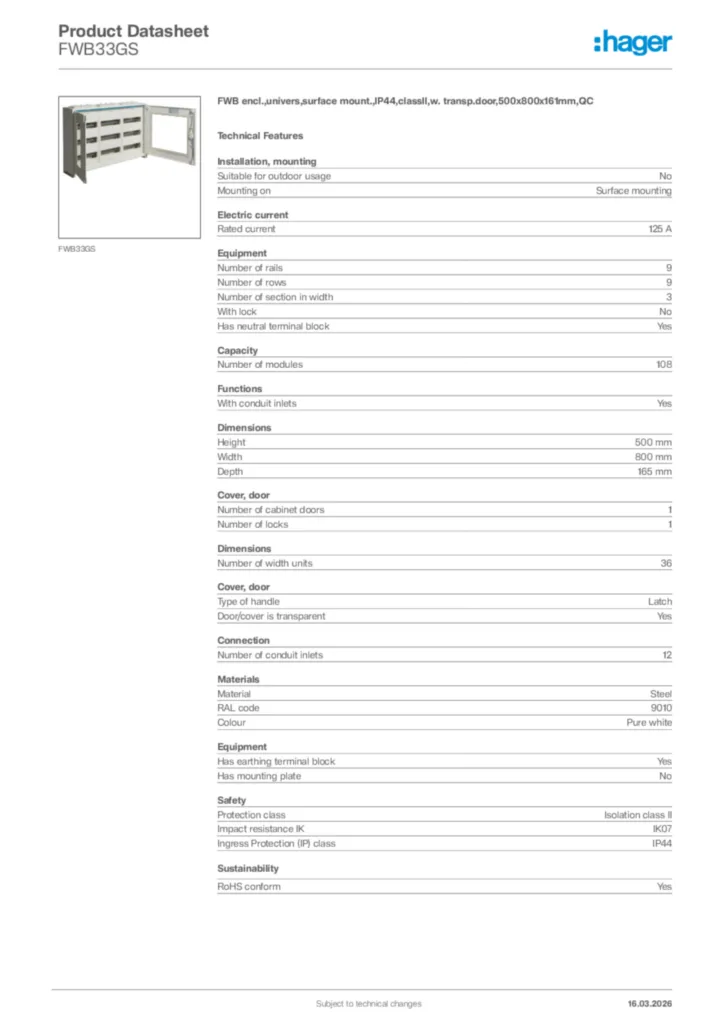

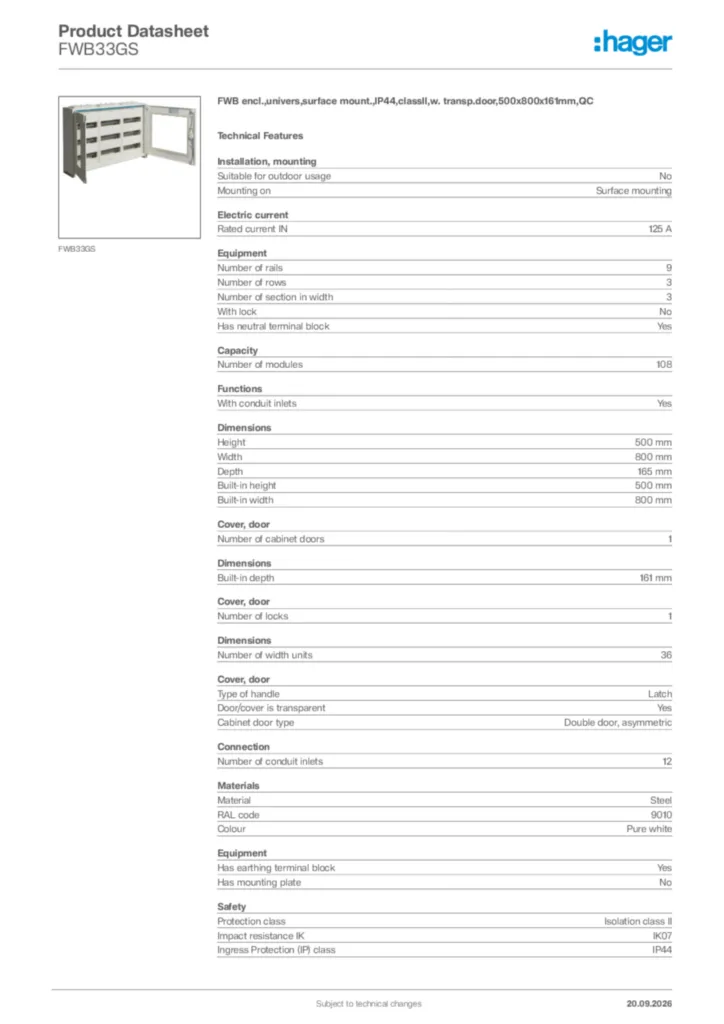

GeneratedProductDatasheet
Hager Product data sheet FWB33GS
FWB encl.,univers,surface mount.,IP44,classII,w. transp.door,500x800x161mm,QC
PDF -
ProductNotice
Mounting instruction for Quickconnect terminal universZ
VZxxx / KNxxx
PDF673,51 kB -
ProductInstallationManual
Mounting instruction for FWB / FP / ZB enclosure
Wall- / door- and flange mounting
PDF1,88 MB -
ProductManuals
6LE007924C_ENSurface boards and accessories (EN)
PDF34,45 MB -
ProductECDeclaration
Declaration
Declaration of conformity International 2023-05-12
PDF332,34 kB
Declaration
Declaration of conformity International 2022-03-09
PDF1,44 MB
Declaration of conformity en-GB 2026-07-22
PDF1,07 MB
Declaration of conformity en-GB 2026-07-22
PDF951,28 kB
