FWB encl.,univers, 3rows 36 modules cl.II IP44 w.plain door, 500x300x161mm,QC FWB31S

EAN
3250612735631
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

FWB encl.,univers, 3rows 36 modules cl.II IP44 w.plain door, 500x300x161mm,QC

FWB31S

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (44)
    • Compon­ents for arrange­ment/baying system 2 products available
    • Cover strip 1 products available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 3 products available
    • Docu­ment holder 3 products available
    • Gland plate for enclosure 5 products available
    • Built-in field for tele­com­mu­nic­a­tions 2 products available

    Complete your system

    • Compon­ents for arrange­ment/baying system
    • Cover strip
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Docu­ment holder
    • Gland plate for enclosure
    • Built-in field for tele­com­mu­nic­a­tions
    • Lock system
    • Mounting accessories
    • Rail terminal bar
    • DIN rail
    • Mounting plate for distri­bu­tion board
    • Feed-­through terminal block
    • Trans­ition cover section for install­a­tion duct
    • Cover for distri­bu­tion board
    • Door/­op­er­ating panel
    • Touch-up stick
    • FZ890N

      Wall fixation rail, univers, 2m, for enclosure IP44 / IP54

      0.00 €  / *
    • FZ441B

      Associaton kit univers, vertical, for enclosures 1-section D:160/205mm

      0.00 €  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm

      0.00 €  / *
    • UZ01F1

      Partition horizontal for FWB/FWQ surface encl., 1 section, screwable

      0.00 €  / *
    • UZ30F1

      Partition vertical for FWB/FWQ surface encl. 500mm high, screwable

      0.00 €  / *
    • ZZ10H

      Partition, univers Z, horizontal, 1-field width

      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive

      0.00 €  / *
    • FZ818

      Document holder, plastic, DIN A4, adhesive

      0.00 €  / *
    • FZ710

      Document holder, Univers

      0.00 €  / *
    • FZ428

      Cable entry plate, univers, for enclosure IP44 / IP54, back side, D160 / 205 mm

      0.00 €  / *
    • FZ425

      Cable entry plate, univers, for sealed area, with cut-outs, IP44/54

      0.00 €  / *
    • FZ460N

      Cable entry plate, univers, IP44/54, 6 x M16, 2 x M20, 2 x M16/25 1 x M25/40/50

      0.00 €  / *
    • FZ466N

      Cable entry plate, univers, IP44/54 with 15 x M16 and 4 x M20 precuts

      0.00 €  / *
    • FZ468N

      Cable entry plate, univers, IP44/54, w/o precuts

      0.00 €  / *
    • UN31TN

      Kit, univers FW, media with perforated mounting plate, 450x250mm

      0.00 €  / *
    • UM31UK

      Kit with plastic mounting plates for Multimedia applications, 450x250mm

      0.00 €  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ821N

      Lock, univers, square 8mm with seal cover, for enclosure IP44, with 1 key

      0.00 €  / *
    • FZ822N

      Lock, univers, square 7mm with seal cover, for enclosure IP44, with 1 key

      0.00 €  / *
    • FZ823N

      Lock, univers, plastic slot with seal cover for enclosure IP44

      0.00 €  / *
    • FZ824N

      Lock, univers, cylinder Nr.1242E with seal cover and 2 keys

      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces

      0.00 €  / *
    • UZ25V1

      Cable bracket, universN, big section, 20 pieces

      0.00 €  / *
    • UZ01V2

      Support, universZ, simple, for cable bracket, 20 pieces

      0.00 €  / *
    • FZ803B

      Mounting brackets, univers, for enclosure IP44/IP54, outside

      0.00 €  / *
    • FZ799N

      Fixation lug for pre-handing on wall rail FZ890N

      0.00 €  / *
    • KM13A

      PE/N Terminal, universZ, 2x13 clamping points, 6x16/7x10 mm²

      0.00 €  / *
    • KM22A

      PE/N Terminal, univers Z, 2x22 clamping points, 10x16/12x10 mm²

      0.00 €  / *
    • KM25A

      PE/N Terminal, univers Z, 2x25 clamping points, 11x16/14x10 mm²

      0.00 €  / *
    • KM05B

      PE/N Terminal, universZ, 4x5 clamping points, 2x6/2x10/1x25mm², with clamp for 25mm²

      0.00 €  / *
    • UN03A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 450mm, 2 pieces

      0.00 €  / *
    • U82A

      DIN rail, univers, 7, 5 mm, depth-adjustable until 32, 5mm, 11 modules wide (200mm)

      0.00 €  / *
    • U842B

      DIN rail, universZ, 35x248x7, 5mm, galvanized steel

      0.00 €  / *
    • UT26A

      Mounting plate, univers, deep-adjustable until 27mm, 1-row, 115x210x2, 5mm

      0.00 €  / *
    • UT26B

      Mounting plate, univers, deep-adjustable until 27mm, 2-rows, 215x210x2, 5mm

      0.00 €  / *
    • UZ31M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm

      0.00 €  / *
    • UZ21M6

      Mounting plate, univers, 240x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ31M6

      Mounting plate, univers, 390x247mm, perforated, with mounting screws

      0.00 €  / *
    • KXA04LH

      Feed-through terminal-phase , 4mm² , 800V/32A, screw connection

      0.00 €  / *
    • FZ441

      cable cover, 1-section, wall fixation, Hx W x D195 x 300 x 155mm, RAL9010

      0.00 €  / *
    • FZ441N

      cable cover, 1-section, box fixation, Hx W x D176 x 300 x 135mm, RAL9010,

      0.00 €  / *
    • US31A1

      Cover plate, universN, 450x250mm, plain

      0.00 €  / *
    • FZ105N

      Door, univers, right, transparent, for enclosure H:500xW:300mm

      0.00 €  / *
    • FZ791N

      Touch-up pencil, 9ml, color RAL 9010

      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rails
      3
    • Number of rows
      3
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      36
    Func­tions
    • Has protec­tion main switch
      No
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      500 mm
    • Width
      300 mm
    • Depth
      165 mm
    • Built-in depth
      161 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Type of handle
      Hinged pattern handle
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Surface mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK09
    • Ingress Protec­tion (IP) class
      IP44
    • Locking type
      Without lock
    • Glow wire test
      750 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Enclosures FWP, univers, IP44, SKII, 120PLE (english)
    PDF
    8,50 MB
    Hager REACH declaration FWB31S
    PDF
    Hager RoHS report FWB31S
    PDF

    Downloads

    • Image FWB31S  | Hager Africa

      Product Image FWB31S

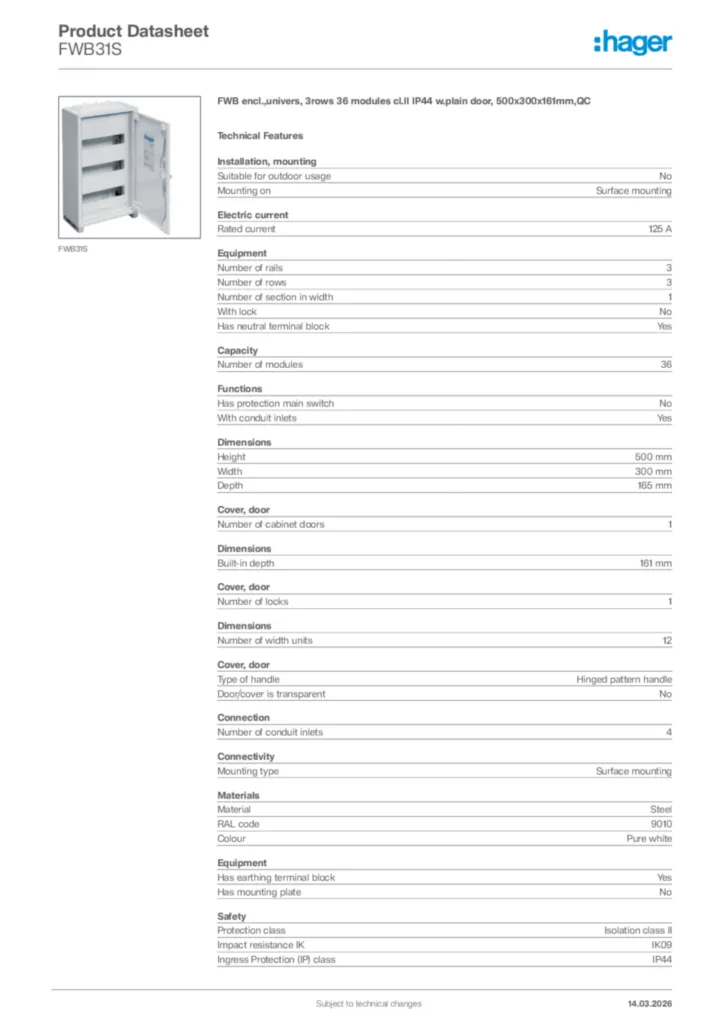

    • Product datasheet

      Image Hager Product data sheet FWB31S  | Hager Africa

      Hager Product data sheet FWB31S

      FWB encl.,univers, 3rows 36 modules cl.II IP44 w.plain door, 500x300x161mm,QC

      PDF
    • Instruction manual

      Image Instruction manual International 2015-05-05  | Hager Africa

      Instruction manual International 2015-05-05

      PDF
      3,08 MB
      Image Instruction manual International 2015-05-08  | Hager Africa

      Instruction manual International 2015-05-08

      PDF
      673,51 kB
    • Declaration of conformity

      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-08-29

      PDF
      143,25 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
