The Hager Quadro5 plain door H1860×W700×D58 mm delivers a robust, sealed front for enclosures. Powder-coated steel (RAL 9010 pure white) ensures durability and a clean finish, while IP55 rating protects against dust and water. Secure access via 3-point 7 mm lock (1 lock, 1 key). Opaque single-door, suited for 2-section width cabinets—ideal for industrial and commercial electrical panels.

EAN

3250612635382

Packaging

1 Piece

quadro5 monobloc enclosures and cabinets

Quadro5 plain door 2010x700 mm Steel RAL9010 IP55 3-point 7 mm lock FM538

Accessories
Technical properties
Environmental value
Documentations
More products

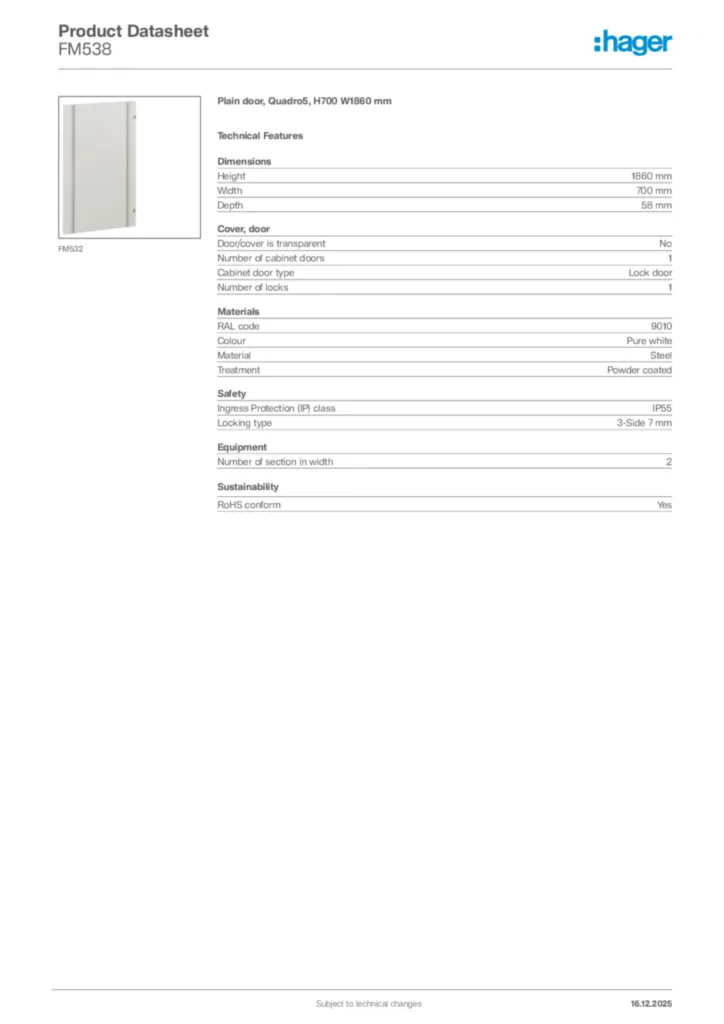

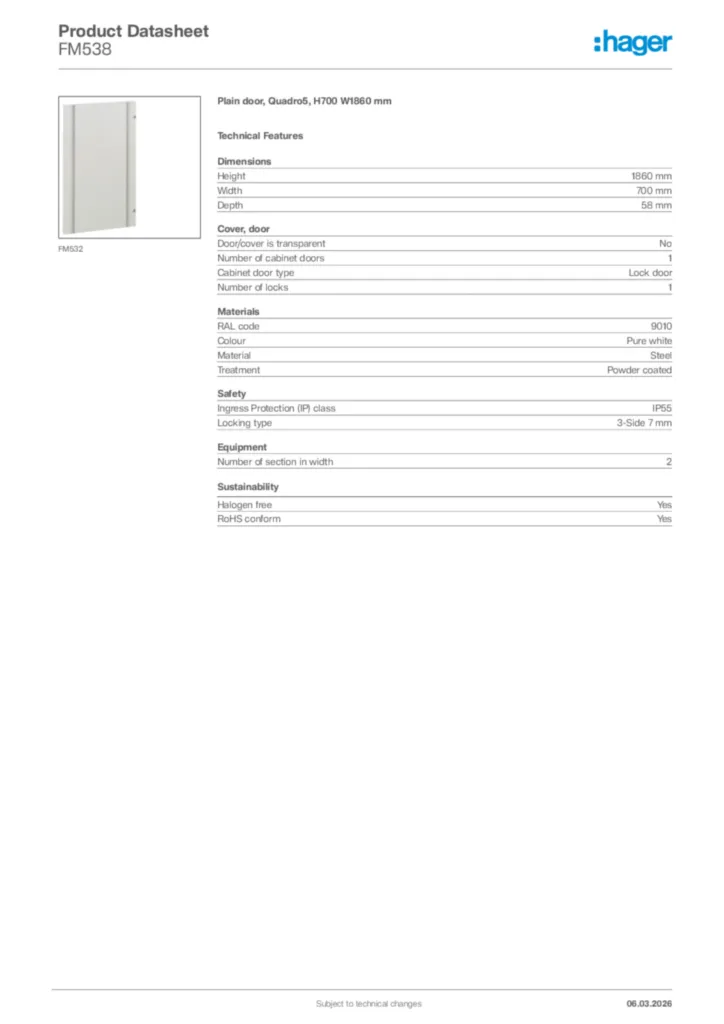

Download the data sheet

Complete your system

Key for enclosures/cabinets 1 products available
Insert for lock system 2 products available
Lock system 2 products available
Document holder 1 products available

Referenced by 2 products available

Technical properties

Height

1860 mm
Width

700 mm
Depth

58 mm

Door/cover is transparent

No
Number of cabinet doors

1
Cabinet door type

Lock door
Number of locks

1

RAL code

9010
Colour

Pure white
Product colour

Pure white
Material

Steel
Treatment

Powder coated

Ingress Protection (IP) class

IP55
Locking type

3-Side 7 mm

Number of section in width

2
Number of keys

1

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
