The Hager Orion.Tech steel enclosure with plain single door, 500x400x200 mm, provides robust housing for switchgear up to 630 A. IP65 and IK10 deliver dust/water-jet resistance and high impact protection, with Class I insulation for safety. Made of 1 mm powder-coated RAL7035 steel, it includes barrel/key lock, 2 flange plate openings and 1 row. Wall-mounted for indoor industrial and commercial control and distribution panels.

EAN

3250612510504

Packaging

1 Piece

Steel enclosure IP65 IK10 plain door 400x300x200 wall-mount Orion.Tech FL713L

Accessories
Technical properties
Environmental value
Documentations
More products

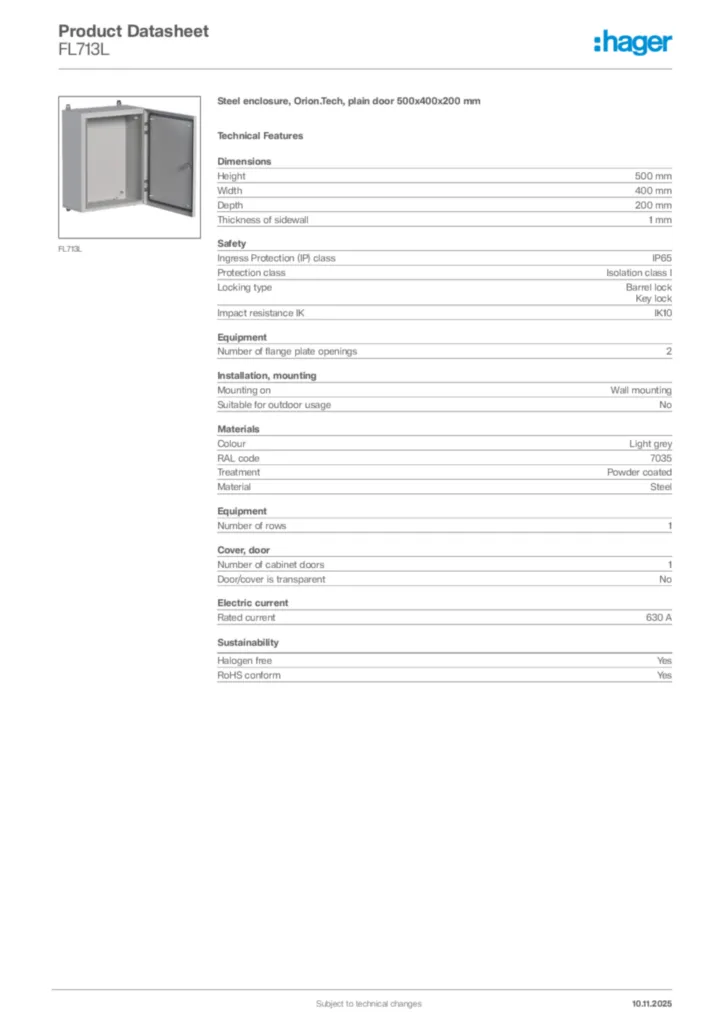

Download the data sheet

Complete your system

Accessories/spare parts for low-voltage switch technology 1 products available
Accessories/spare parts for earthing and lightning 1 products available

Technical properties

Height

500 mm
Width

400 mm
Depth

200 mm
Thickness of sidewall

1 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class I
Locking type

Barrel lock, Key lock
Impact resistance IK

IK10

Number of flange plate openings

2
Number of rows

1

Mounting on

Wall mounting
Suitable for outdoor usage

No

Colour

Light grey
RAL code

7035
Treatment

Powder coated
Material

Steel

Number of cabinet doors

1
Door/cover is transparent

No
Cabinet door type

Single door

Rated current

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
