The Hager Orion.Tech steel enclosure with plain single door, 300x250x160 mm, provides robust housing for control and distribution equipment up to 630 A. IP65 and IK10 with 2 mm sidewalls ensure dust-tight, water-jet and impact resistance. Powder-coated RAL7035 for durability, isolation class I. Wall-mount, indoor use, 3-side 8 mm locking, 1 row with 1 flange opening.

EAN

3250612510474

Packaging

1 Piece

Steel enclosure Orion.Tech IP65 IK10 250x200x160 Plain Door RAL7035 FL702L

Accessories
Technical properties
Environmental value
Documentations
More products

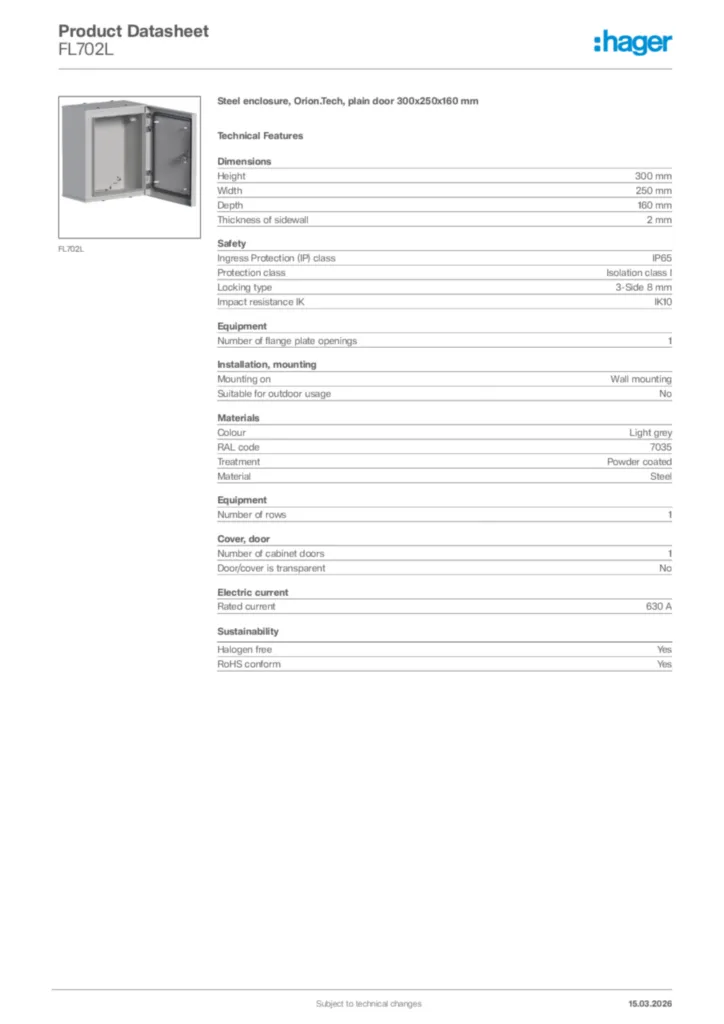

Download the data sheet

Complete your system

Accessories/spare parts for low-voltage switch technology 1 products available
Accessories/spare parts for earthing and lightning 1 products available

Technical properties

Height

300 mm
Width

250 mm
Depth

160 mm
Thickness of sidewall

2 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class I
Locking type

3-Side 8 mm
Impact resistance IK

IK10

Number of flange plate openings

1
Number of rows

1

Mounting on

Wall mounting
Suitable for outdoor usage

No

Colour

Light grey
RAL code

7035
Treatment

Powder coated
Material

Steel

Number of cabinet doors

1
Door/cover is transparent

No
Cabinet door type

Single door

Rated current

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
