The Hager Orion.Plus polyester floor-standing enclosure 600x1100x300 mm delivers robust distribution up to 630 A. IP65, Class II and IK08 ensure safe indoor/outdoor use, while corrosion‑resistant polyester and a 3-side 7 mm key lock add durability and security. Floor-mounted with 3 rows, transparent single door, light grey RAL7035. Ideal for harsh environments in utility and industrial installations.

EAN

3250610676301

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus Polyester Floor Enclosure 900x850x300 IP65 Class II IK08 630A FL530B

Accessories
Technical properties
Environmental value
Documentations
More products

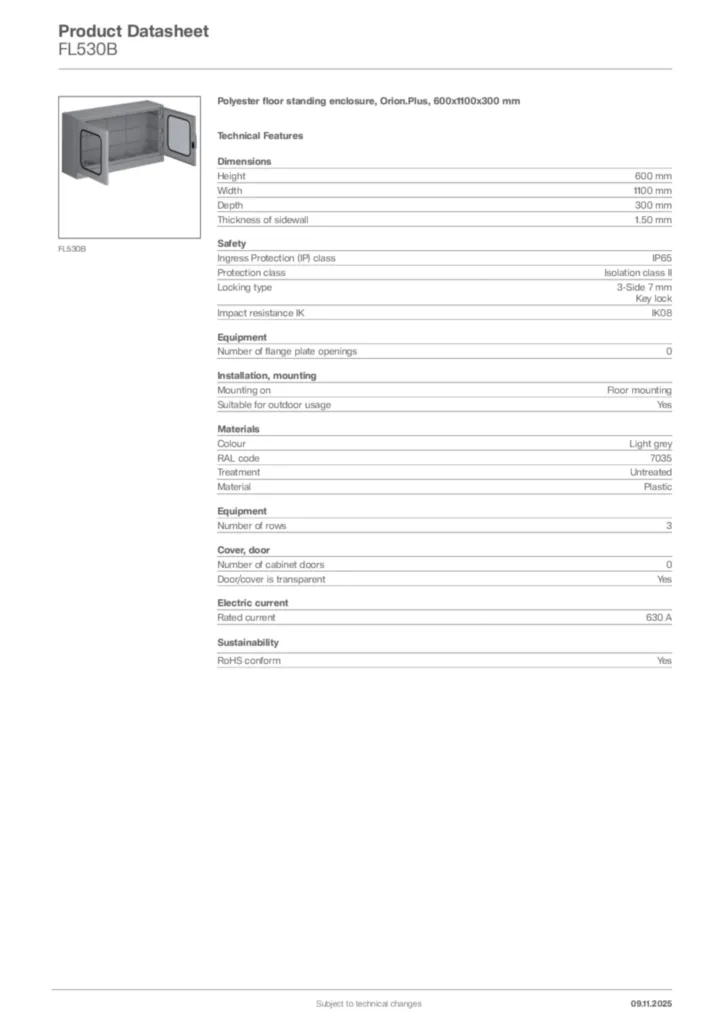

Download the data sheet

Complete your system

Mounting plate for distribution board 7 products available
Blanking plate for enclosure 4 products available
DIN rail 2 products available
Distributor assembly for serial built-in device 2 products available
Door/operating panel 3 products available
Heater for enclosure 4 products available

Technical properties

Height

600 mm
Width

1100 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK08

Number of flange plate openings

0
Number of rows

3

Mounting on

Floor mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Plastic

Number of cabinet doors

0
Door/cover is transparent

Yes
Cabinet door type

Single door

Rated current

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
