The Hager Orion.Plus polyester floor-standing enclosure 900x600x300 mm provides secure housing for power distribution up to 630 A. IP65, IK08 and Class II insulation deliver weatherproof, impact-resistant safety for outdoor or harsh environments. Five-row capacity optimizes space, while a single transparent door with 3-point 7 mm key lock protects access. Floor-mounted, light grey RAL7035, ideal for industrial and utility control.
EAN
3250610676219
VPE
1 piece
Orion.Plus floor-standing polyester enclosure 600x600x300 IP65 IK08 FL521B
Phase out product: please contact your electrical wholesaler for availability
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Mounting accessories 3 product.page.accessories.products-available -
Screw mounting set 1 product.page.accessories.products-available -
Key for enclosures/cabinets 2 product.page.accessories.products-available -
Insert for lock system 1 product.page.accessories.products-available -
Cover strip 1 product.page.accessories.products-available -
Blanking plate for enclosure 3 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Height900 mm
-
Width600 mm
-
Depth300 mm
-
Thickness of sidewall1.50 mm
Safety
-
Ingress Protection (IP) classIP65
-
Protection classIsolation class II
-
Locking type3-Side 7 mm, Key lock
-
Impact resistance IKIK08
Equipment
-
Number of section in width1
-
Number of flange plate openings0
-
Number of rows5
Installation, mounting
-
Mounting onFloor mounting
-
Suitable for outdoor usageYes
Materials
-
ColourLight grey
-
RAL code7035
-
TreatmentUntreated
-
MaterialGlass reinforced polyester
-
Surface finishMatt
Cover, door
-
Number of cabinet doors1
-
Number of locks1
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Electric current
-
Rated current IN630 A
Voltage
-
Nominal voltage400-400 V
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

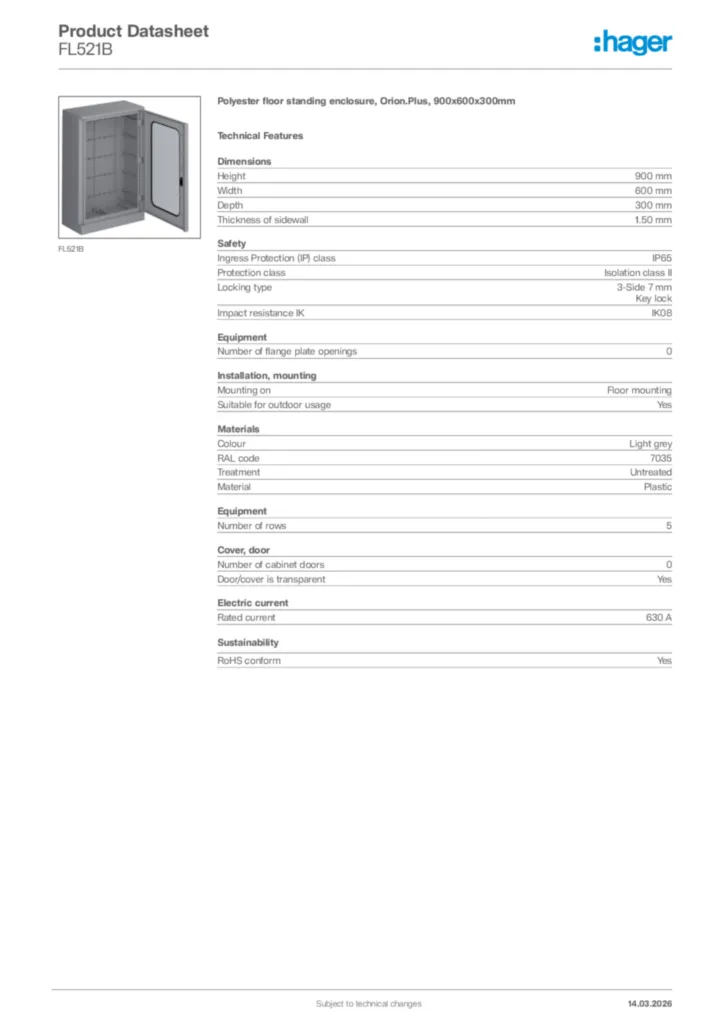

GeneratedProductDatasheet
Hager Product data sheet FL521B
Polyester floor standing enclosure, Orion.Plus, 900x600x300mm
PDF
More documentation
