    • FL501B
    The Hager Orion.Plus polyester wall-mount enclosure 850×600×300 mm protects distribution and control equipment with IP65 sealing, Class II insulation, and IK08 impact resistance for safe indoor/outdoor use. Features a single transparent cover with 3-side 7 mm key lock, 5-row capacity, and 630 A rating. Light grey RAL7035, ideal for robust, weatherproof installations.
    EAN
    3250610676011
    Packaging
    1 Piece

    Orion.Plus Polyester Wall Enclosure 550x600x300 IP65 IK08 Class II FL501B

    Phase out product: please contact your electrical wholesaler for availability

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Orion.Plus Polyester Wall Enclosure 550x600x300 IP65 IK08 Class II

    FL501B

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (16)
    • Mounting accessories 3 products available
    • Screw mounting set 1 products available
    • Key for enclos­ures/cab­inets 2 products available
    • Insert for lock system 1 products available
    • Cover strip 1 products available
    • Blanking plate for enclosure 3 products available

    Complete your system

    • Mounting accessories
    • Screw mounting set
    • Key for enclos­ures/cab­inets
    • Insert for lock system
    • Cover strip
    • Blanking plate for enclosure
    • Mounting plate for distri­bu­tion board
    • Door/­op­er­ating panel
    • Distrib­utor assembly for serial built-in device
    • Lock system
    • FL672E

      Sliding guides, Orion.Plus, L350 mm

      €0.00  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus

      €0.00  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester

      €0.00  / *
    • FZ801

      Nuts set, Orion.Plus, 100 pieces

      €0.00  / *
    • FZ850

      Key lock insert, Orion.Plus

      €0.00  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046

      €0.00  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus

      €0.00  / *
    • VZ416

      Blanking strip, universal, 18M, RAL 7035

      €0.00  / *
    • FL704E

      Insulated front panel, Orion.Plus, 50x600 mm

      €0.00  / *
    • FL241Z

      Ventilated louvers plate, Orion.Plus, 160x160 mm

      €0.00  / *
    • FL710E

      Insulated front panel, Orion.Plus, 150x500 mm

      €0.00  / *
    • FL511E

      Steel mounting plate, Orion.Plus, 780x493 mm

      €0.00  / *
    • FL381B

      Polyester plain door, Orion.Plus, H750 W500 mm

      €0.00  / *
    • FL401B

      Polyester glazed door, Orion.Plus, H750 W500 mm

      €0.00  / *
    • FL992B

      MCB complete kit, Orion.Plus, 5x23M, 600x900 mm, System C

      €0.00  / *
    • FZ870Z

      Door stopper, Orion.Plus polyester

      €0.00  / *

    Technical properties

    Dimen­sions
    • Height
      850 mm
    • Width
      600 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      1.50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK08
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      0
    • Number of rows
      5
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Glass rein­forced poly­ester
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      Yes
    • Cabinet door type
      Single door
    Elec­tric current
    • Rated current IN
      630 A
    Voltage
    • Nominal voltage
      400-400 V

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP_HAGE-00954-V02.01-EN
    PDF
    10,41 MB
    REACH declaration FL501B
    PDF
    RoHS report FL501B
    PDF

    Downloads

    • Image FL501B  | Hager Africa

      Product Image FL501B

    • Product datasheet

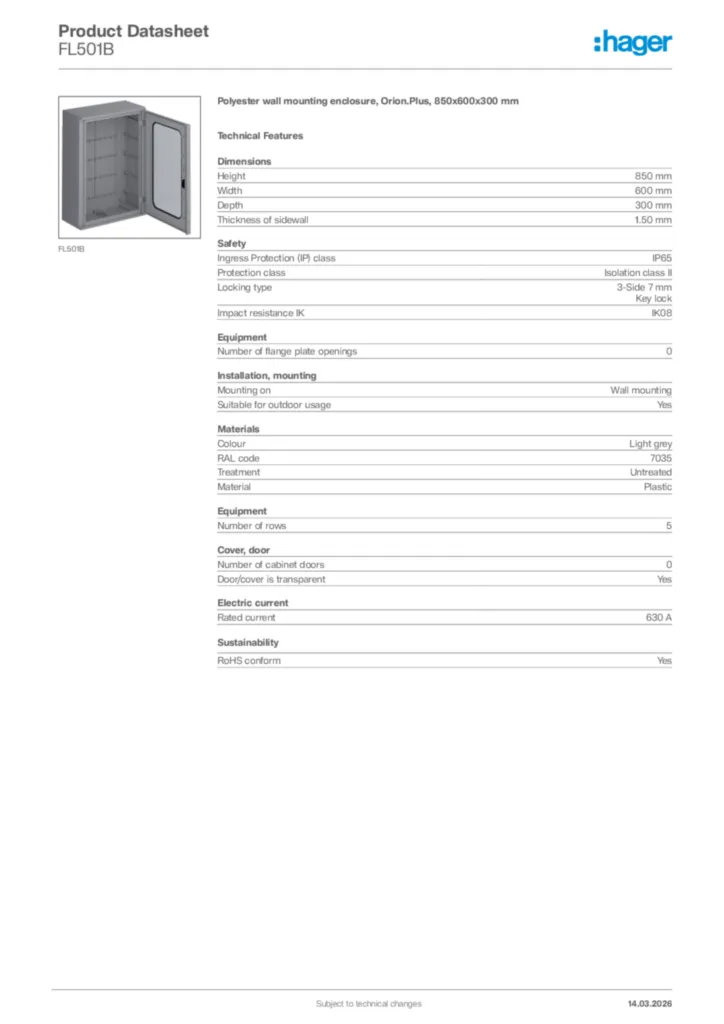

      Image Hager Product data sheet FL501B  | Hager Africa

      Hager Product data sheet FL501B

      Polyester wall mounting enclosure, Orion.Plus, 850x600x300 mm

      PDF
