    The Hager Orion.Plus polyester double enclosure 1750x1100x300 mm provides reliable housing for switchgear up to 630 A. IP65, IK10 and Class II insulation ensure robust, safe operation indoors or outdoors. With 2-section width, 10 rows, and wall mounting, it optimizes panel space. Light grey RAL7035 finish and 3-side 7 mm key lock enhance durability and security for harsh environments.
    EAN
    3250610672662
    VPE
    1 piece

    Orion.Plus polyester double enclosure IP65 IK10 Class II 1750x1100x300 FL366B

    Phase out product: please contact your electrical wholesaler for availability

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Orion.Plus polyester double enclosure IP65 IK10 Class II 1750x1100x300

    FL366B

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (21)
    • Blanking plate for enclosure 3 product.page.accessories.products-available
    • Lock system 1 product.page.accessories.products-available
    • Distrib­utor assembly for serial built-in device 1 product.page.accessories.products-available
    • Door/­op­er­ating panel 3 product.page.accessories.products-available
    • Mounting plate for distri­bu­tion board 5 product.page.accessories.products-available
    • Mounting accessories 3 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Blanking plate for enclosure
    • Lock system
    • Distrib­utor assembly for serial built-in device
    • Door/­op­er­ating panel
    • Mounting plate for distri­bu­tion board
    • Mounting accessories
    • Key for enclos­ures/cab­inets
    • Cover strip
    • Insert for lock system
    • Screw mounting set
    • FL725E

      Insulated front panel, Orion.Plus, 200x800 mm
      €0.00  / *
    • FL241Z

      Ventilated louvers plate, Orion.Plus, 160x160 mm
      €0.00  / *
    • FL710E

      Insulated front panel, Orion.Plus, 150x500 mm
      €0.00  / *
    • FZ870Z

      Door stopper, Orion.Plus polyester
      €0.00  / *
    • FL992B

      MCB complete kit, Orion.Plus, 5x23M, 600x900 mm, System C
      €0.00  / *
    • FL592E

      Steel inner door, Orion.Plus, H1050 W500 mm
      €0.00  / *
    • FL391B

      Polyester plain door, Orion.Plus, H750 W1000 mm
      €0.00  / *
    • FL411B

      Polyester glazed door, Orion.Plus H750 W1000 mm
      €0.00  / *
    • FL531E

      Steel mounting plate, Orion.Plus, 780x993 mm
      €0.00  / *
    • FL572E

      Insulated mounting plate, Orion.Plus, 1035x995 mm
      €0.00  / *
    • FL510E

      Steel mounting plate, Orion.Plus, 480x493 mm
      €0.00  / *
    • FL511E

      Steel mounting plate, Orion.Plus, 780x493 mm
      €0.00  / *
    • FL530E

      Steel mounting plate, Orion.Plus, 480x993 mm
      €0.00  / *
    • FL672E

      Sliding guides, Orion.Plus, L350 mm
      €0.00  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      €0.00  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      €0.00  / *
    • FZ850

      Key lock insert, Orion.Plus
      €0.00  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      €0.00  / *
    • VZ416

      Blanking strip, universal, 18M, RAL 7035
      €0.00  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      €0.00  / *
    • FZ801

      Nuts set, Orion.Plus, 100 pieces
      €0.00  / *

    Technical characteristics

    Dimen­sions
    • Height
      1750 mm
    • Width
      1100 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      1.50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      2
    • Number of flange plate open­ings
      0
    • Number of rows
      10
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Glass rein­forced poly­ester
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      4
    • Number of locks
      2
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Double door, symmetric
    Elec­tric current
    • Rated current IN
      630 A
    Voltage
    • Nominal voltage
      400-400 V

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP_HAGE-00954-V02.01-EN
    PDF
    10,41 MB
    REACH declaration FL366B
    PDF
    RoHS report FL366B
    PDF

    Downloads

    • Image FL366B | Hager UK

      Product Image FL366B

    • GeneratedProductDatasheet

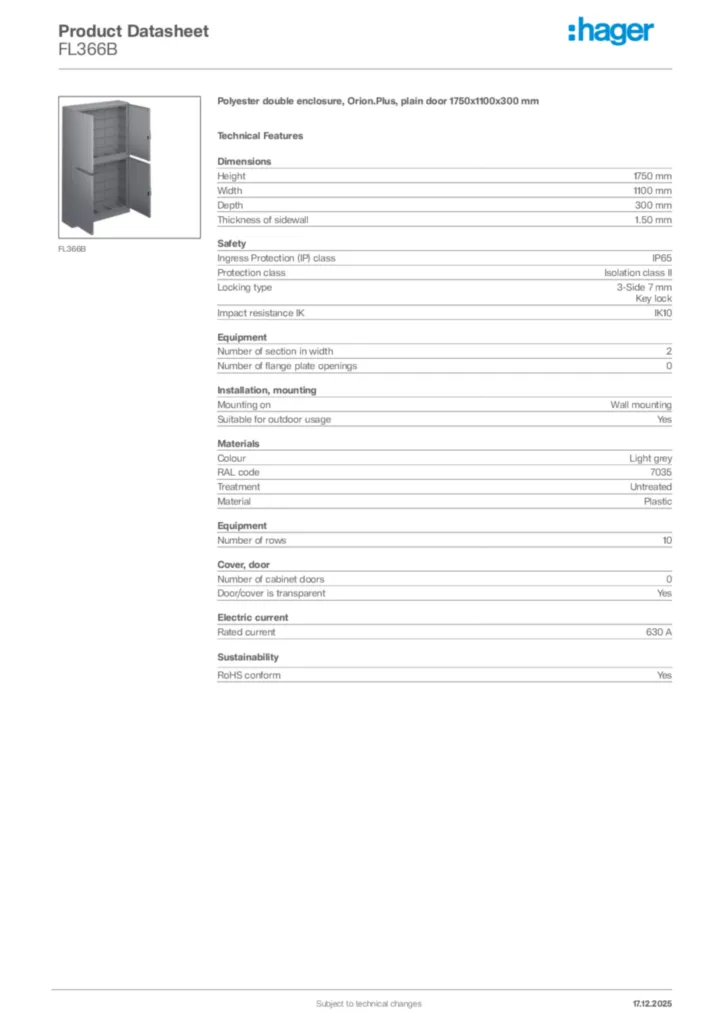

      Image Hager Product data sheet FL366B | Hager UK

      Hager Product data sheet FL366B

      Polyester double enclosure, Orion.Plus, plain door 1750x1100x300 mm

      PDF

    • ProductECDeclaration

      Image Declaration of conformity en-GB 2026-07-22 | Hager UK

      Declaration of conformity en-GB 2026-07-22

      PDF
      335,92 kB
