The Hager Orion.Plus polyester double enclosure 1750x1100x300 mm provides reliable housing for switchgear up to 630 A. IP65, IK10 and Class II insulation ensure robust, safe operation indoors or outdoors. With 2-section width, 10 rows, and wall mounting, it optimizes panel space. Light grey RAL7035 finish and 3-side 7 mm key lock enhance durability and security for harsh environments.

EAN

3250610672655

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester double enclosure IP65 IK10 1450x1100x300 Class II FL364B

Accessories
Technical properties
Environmental value
Documentations
More products

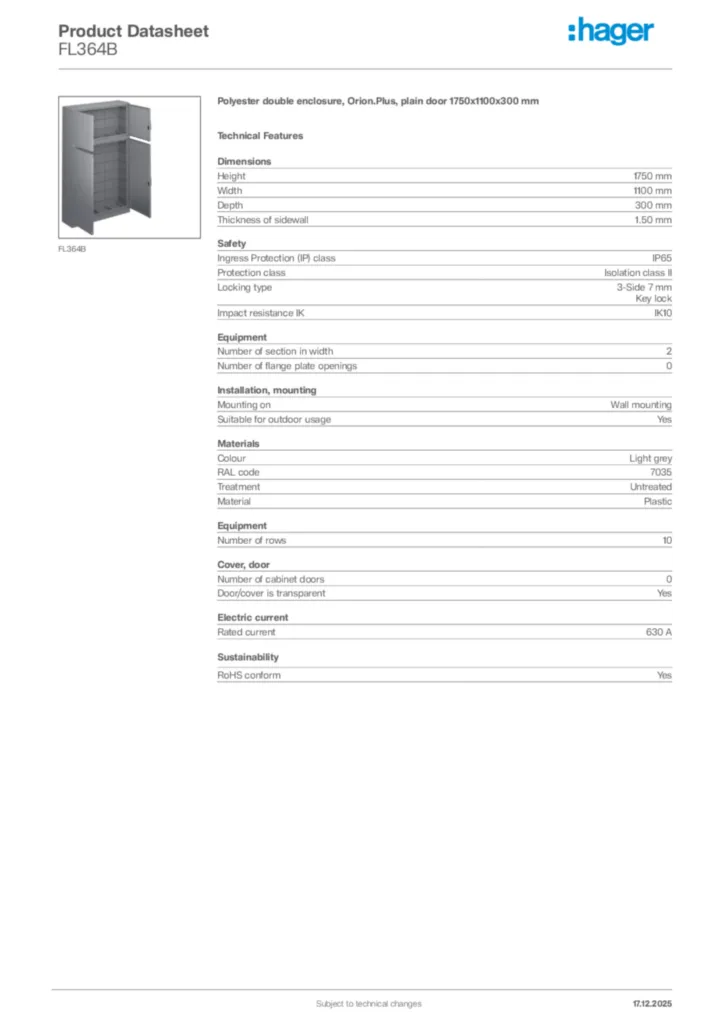

Download the data sheet

Complete your system

Mounting plate for distribution board 11 products available
Blanking plate for enclosure 5 products available
DIN rail 3 products available
Distributor assembly for serial built-in device 3 products available
Door/operating panel 6 products available
Lock system 1 products available

Technical properties

Height

1750 mm
Width

1100 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK10

Number of section in width

2
Number of flange plate openings

0
Number of rows

10

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Plastic

Number of cabinet doors

0
Door/cover is transparent

Yes
Cabinet door type

Double door, symmetric

Rated current

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
