    • FL346B
    The Hager Orion.Plus polyester double enclosure with plain single door (1750x600x300 mm) provides robust, corrosion‑resistant housing for electrical assemblies up to 630 A. IP65, IK10 and Class II insulation ensure safe outdoor wall‑mounted use. Features include 10 rows, 1.5 mm sidewall, secure 3‑point 7 mm key lock, light grey RAL7035 finish—ideal for industrial and infrastructure installations.
    EAN
    3250610672563
    VPE
    1 piece

    Polyester double enclosure Orion.Plus IP65 IK10 1750x600x300 Outdoor FL346B

    Phase out product: please contact your electrical wholesaler for availability

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Polyester double enclosure Orion.Plus IP65 IK10 1750x600x300 Outdoor

    FL346B

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (19)
    • Key for enclos­ures/cab­inets 2 product.page.accessories.products-available
    • Lock system 1 product.page.accessories.products-available
    • Distrib­utor assembly for serial built-in device 2 product.page.accessories.products-available
    • Blanking plate for enclosure 3 product.page.accessories.products-available
    • Door/­op­er­ating panel 3 product.page.accessories.products-available
    • Mounting plate for distri­bu­tion board 2 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Key for enclos­ures/cab­inets
    • Lock system
    • Distrib­utor assembly for serial built-in device
    • Blanking plate for enclosure
    • Door/­op­er­ating panel
    • Mounting plate for distri­bu­tion board
    • Mounting accessories
    • Cover strip
    • Insert for lock system
    • Screw mounting set
    • FZ850

      Key lock insert, Orion.Plus
      €0.00  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      €0.00  / *
    • FZ870Z

      Door stopper, Orion.Plus polyester
      €0.00  / *
    • FL373A

      Kit MCCB x160, Orion.Plus, 300x600 mm
      €0.00  / *
    • FL992B

      MCB complete kit, Orion.Plus, 5x23M, 600x900 mm, System C
      €0.00  / *
    • FL704E

      Insulated front panel, Orion.Plus, 50x600 mm
      €0.00  / *
    • FL241Z

      Ventilated louvers plate, Orion.Plus, 160x160 mm
      €0.00  / *
    • FL710E

      Insulated front panel, Orion.Plus, 150x500 mm
      €0.00  / *
    • FL592E

      Steel inner door, Orion.Plus, H1050 W500 mm
      €0.00  / *
    • FL381B

      Polyester plain door, Orion.Plus, H750 W500 mm
      €0.00  / *
    • FL401B

      Polyester glazed door, Orion.Plus, H750 W500 mm
      €0.00  / *
    • FL510E

      Steel mounting plate, Orion.Plus, 480x493 mm
      €0.00  / *
    • FL511E

      Steel mounting plate, Orion.Plus, 780x493 mm
      €0.00  / *
    • FL672E

      Sliding guides, Orion.Plus, L350 mm
      €0.00  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      €0.00  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      €0.00  / *
    • VZ416

      Blanking strip, universal, 18M, RAL 7035
      €0.00  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      €0.00  / *
    • FZ801

      Nuts set, Orion.Plus, 100 pieces
      €0.00  / *

    Technical characteristics

    Dimen­sions
    • Height
      1750 mm
    • Width
      600 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      1.50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      0
    • Number of rows
      10
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Glass rein­forced poly­ester
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      2
    • Number of locks
      2
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Elec­tric current
    • Rated current IN
      630 A
    Voltage
    • Nominal voltage
      400-400 V

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP_HAGE-00954-V02.01-EN
    PDF
    10,41 MB
    REACH declaration FL346B
    PDF
    RoHS report FL346B
    PDF

    Downloads

    • Image FL346B | Hager UK

      Product Image FL346B

    • GeneratedProductDatasheet

      Image Hager Product data sheet FL346B | Hager UK

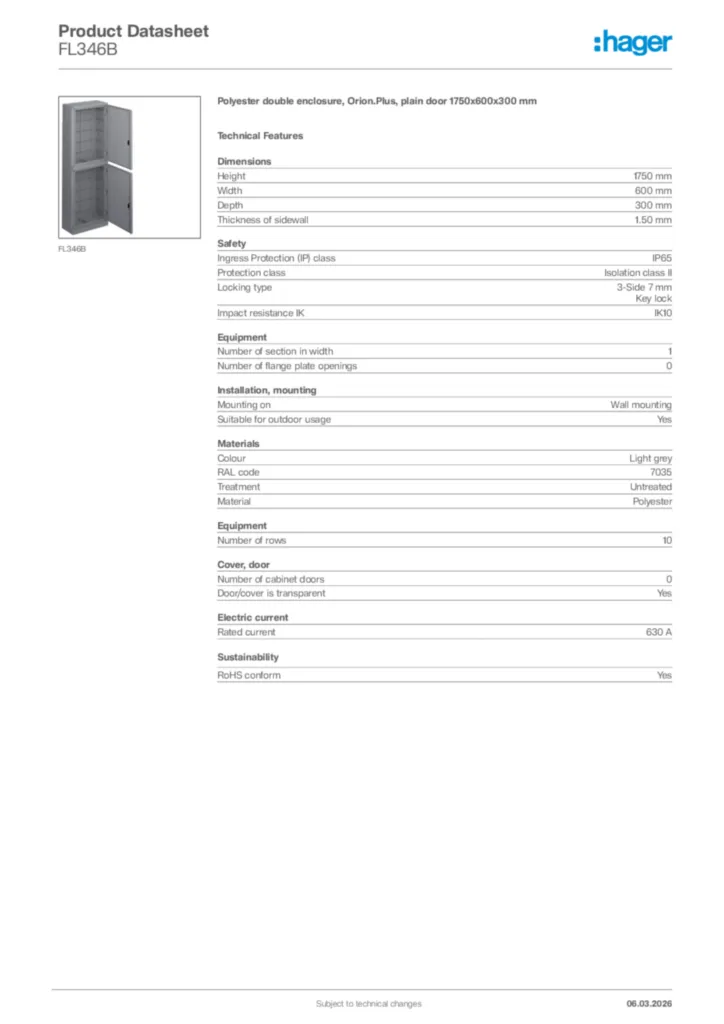

      Hager Product data sheet FL346B

      Polyester double enclosure, Orion.Plus, plain door 1750x600x300 mm

      PDF

    • ProductECDeclaration

      Image Declaration of conformity en-GB 2026-07-22 | Hager UK

      Declaration of conformity en-GB 2026-07-22

      PDF
      335,92 kB
