The Hager Orion.Plus polyester double enclosure 1750x600x300 mm with plain door provides robust housing for distribution and control up to 630 A. IP65, IK10 and Class II insulation ensure safe outdoor wall-mount use. It offers 10 rows in a single-width section, 1.5 mm walls, RAL7035 finish, and secure 3-point 7 mm key locking—ideal for industrial, utility, and infrastructure installations.

EAN

3250610672556

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester enclosure IP65 Class II IK10 1450x600x300 FL344B

Accessories
Technical properties
Environmental value
Documentations
More products

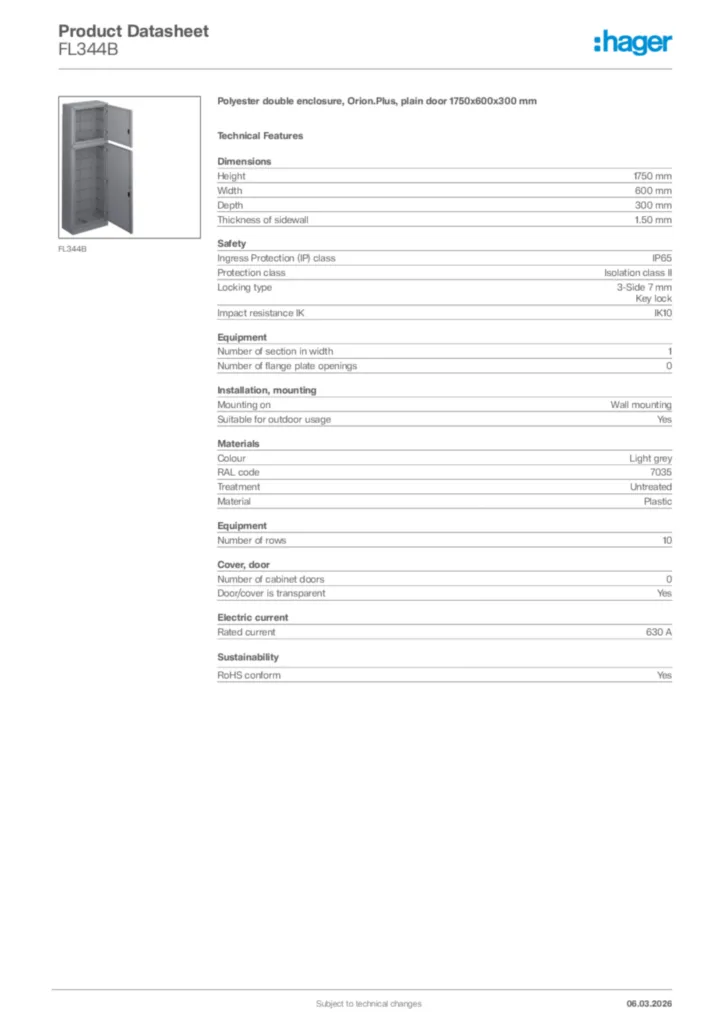

Download the data sheet

Complete your system

Mounting plate for distribution board 14 products available
Heater for enclosure 4 products available
Blanking plate for enclosure 5 products available
DIN rail 4 products available
Distributor assembly for serial built-in device 7 products available
Door/operating panel 6 products available

Technical properties

Height

1750 mm
Width

600 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK10

Number of section in width

1
Number of flange plate openings

0
Number of rows

10

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Plastic

Number of cabinet doors

0
Door/cover is transparent

Yes

Rated current IN

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
