The Hager Orion.Plus polyester double enclosure with plain single door (1450×600×300 mm) delivers reliable housing for distributions up to 630 A. IP65, IK10 and Class II insulation make it safe for outdoor wall mounting. Light grey RAL7035, 1.5 mm sidewalls, 8 rows/1 section, and a 3-point 7 mm key lock provide spacious, secure, and durable protection for industrial and infrastructure installations.

EAN

3250610672549

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester double enclosure IP65 IK10 Class II 1150x600x300 FL342B

Accessories
Technical properties
Environmental value
Documentations
More products

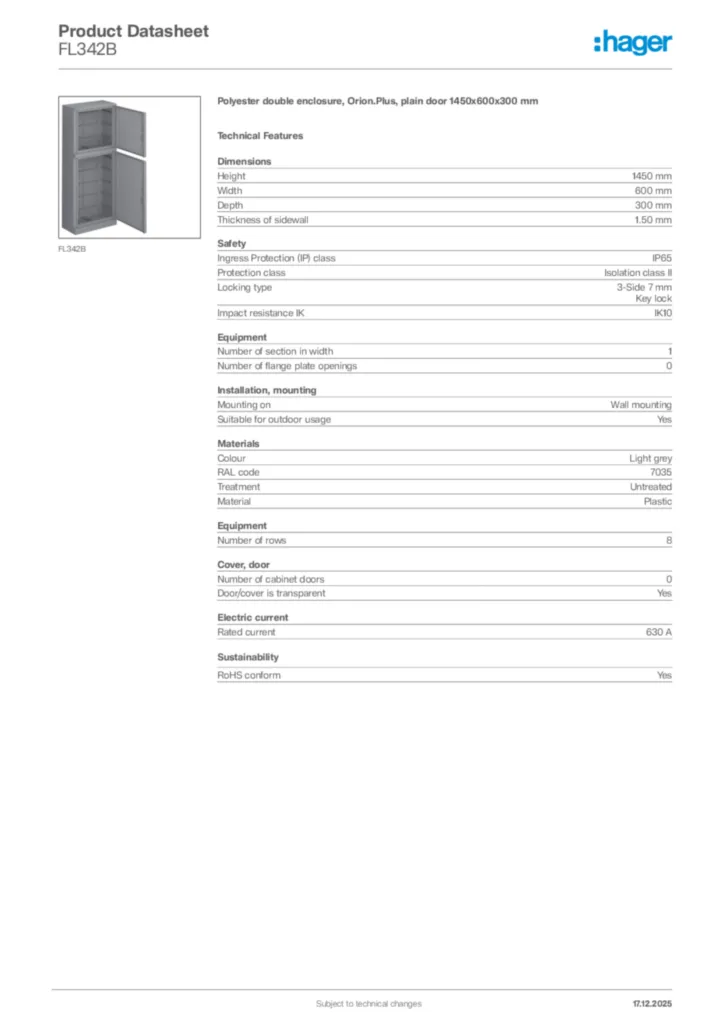

Download the data sheet

Complete your system

Mounting plate for distribution board 12 products available
Key for enclosures/cabinets 2 products available
Heater for enclosure 4 products available
Blanking plate for enclosure 5 products available
DIN rail 4 products available
Distributor assembly for serial built-in device 7 products available

Technical properties

Height

1450 mm
Width

600 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK10

Number of section in width

1
Number of flange plate openings

0
Number of rows

8

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Plastic

Number of cabinet doors

0
Door/cover is transparent

Yes
Cabinet door type

Single door

Rated current

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
