    • FL216B
    EAN
    3250610670880
    Packaging
    1 Piece
    • orion+ water­proof enclos­ures and cabinets

    Polyester enclosure, Orion.Plus, plain door 650x400x200 mm FL216B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Polyester enclosure, Orion.Plus, plain door 650x400x200 mm

    FL216B

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (54)
    • Distrib­utor assembly for serial built-in device 5 products available
    • Slotted cable duct system 2 products available
    • Docu­ment holder 1 products available
    • Mounting plate for distri­bu­tion board 7 products available
    • Lock system 5 products available
    • Door/­op­er­ating panel 2 products available

    Complete your system

    • Distrib­utor assembly for serial built-in device
    • Slotted cable duct system
    • Docu­ment holder
    • Mounting plate for distri­bu­tion board
    • Lock system
    • Door/­op­er­ating panel
    • DIN rail
    • Cover strip
    • Blanking plate for enclosure
    • Key for enclos­ures/cab­inets
    • Heater for enclosure
    • Insert for lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Vent­il­ator for enclosure
    • FL993A

      MCB complete kit, orion plus, 4x18M, 600x400 mm +C
      0.00 €  / *
    • FL983A

      Chassis kit MCB, orion plus 4x18M 650x400 mm +S
      0.00 €  / *
    • FL371A

      Kit MCCB x160, Orion.Plus, 300x400 mm
      0.00 €  / *
    • FL362A

      Kit system MCB, Orion.Plus, 150x400 mm
      0.00 €  / *
    • FL366A

      Kit system MCB, Orion.Plus, 200x400 mm
      0.00 €  / *
    • FL71Z

      Cable trunking 40x60mm 2xL2000mm
      0.00 €  / *
    • FL70Z

      Cable trunking 25x60mm 2xL2000mm
      0.00 €  / *
    • FZ818

      Document holder, plastic, DIN A4, adhesive
      0.00 €  / *
    • FL476A

      Steel mounting plate, Orion.Plus, 630x343 mm
      0.00 €  / *
    • FL412A

      Steel mounting plate, Orion.Plus, 630x343 mm
      0.00 €  / *
    • FL426A

      Insulated mounting plate, Orion.Plus, 585x345 mm
      0.00 €  / *
    • FL312A

      Fixed steel mounting plate, Orion.Plus, 287x145 mm
      0.00 €  / *
    • FL314A

      Adjustable steel mounting plate, Orion.Plus, 234x145 mm
      0.00 €  / *
    • FL322A

      Fixed steel mounting plate, Orion.Plus, 287x195 mm
      0.00 €  / *
    • FL324A

      Adjustable steel mounting plate, Orion.Plus, 604x195 mm
      0.00 €  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      0.00 €  / *
    • FL95Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL93Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL80Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL82Z

      Pair square key inserts, Orion.Plus, 6 mm
      0.00 €  / *
    • FL551A

      Steel inner door, Orion.Plus steel, 650x400 mm
      0.00 €  / *
    • FL646A

      Polyester inner door, Orion.Plus polyester, 650x400 mm
      0.00 €  / *
    • FL500A

      Clamp DIN rail, Orion.Plus, 18 M W400 mm
      0.00 €  / *
    • FL493A

      Clamp bracket, Orion.Plus, W400 mm
      0.00 €  / *
    • FL463A

      Functional uprights, Orion.Plus, H650 mm
      0.00 €  / *
    • FL500E

      Clamp DIN rail, Orion.Plus, 24 M W500 mm
      0.00 €  / *
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • VZ416

      Blanking strip, universal, 18M, RAL 7035
      0.00 €  / *
    • FL712E

      Insulated front panel, Orion.Plus, 150x400 mm
      0.00 €  / *
    • FL702E

      Insulated front panel, Orion.Plus, 50x400 mm
      0.00 €  / *
    • FL722E

      Insulated front panel, Orion.Plus, 200x400 mm
      0.00 €  / *
    • FL240Z

      Ventilated louvers plate, Orion.Plus, 120x120 mm
      0.00 €  / *
    • FL241Z

      Ventilated louvers plate, Orion.Plus, 160x160 mm
      0.00 €  / *
    • FL242Z

      Ventilated louvers plate, Orion.Plus, 220x220 mm
      0.00 €  / *
    • FZ850

      Key lock insert, Orion.Plus
      0.00 €  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      0.00 €  / *
    • FL259Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL254Z

      Heaters, quadro.system, 45 W 230 V AC/DC
      0.00 €  / *
    • FL255Z

      Heaters, quadro.system, 80 W 230 V AC/DC
      0.00 €  / *
    • FL256Z

      Heaters, quadro.system, 150 W 230 V AC/DC
      0.00 €  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      0.00 €  / *
    • FL97Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL77Z

      Insert lock for rotary handle, Orion.Plus, 6x6 mm
      0.00 €  / *
    • FL672E

      Sliding guides, Orion.Plus, L350 mm
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL85Z

      Wall steel fixing brackets, Orion.Plus steel
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *
    • FL216Z

      Fan, quadro.system, 67W 520m3/h
      0.00 €  / *
    • FL214Z

      Fan, quadro.system, 32W 240 m3/h
      0.00 €  / *
    • FL212Z

      Fan, quadro.system, 20W 115 m3/h
      0.00 €  / *
    • FL210Z

      Fan, quadro.system, 20W 57 m3/h
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      650 mm
    • Width
      400 mm
    • Depth
      200 mm
    • Thick­ness of side­wall
      2 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP66
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of flange plate open­ings
      0
    • Number of rows
      4
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Glass rein­forced poly­ester
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      2
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      125 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    PEP - Steel enclosure, Orion.Plus, plain door 650x500x200 mm (english)
    PDF
    3,44 MB
    Hager REACH declaration FL216B
    PDF
    Hager RoHS report FL216B
    PDF

    Downloads

    • Image FL216B | Hager Africa

      Product Image FL216B

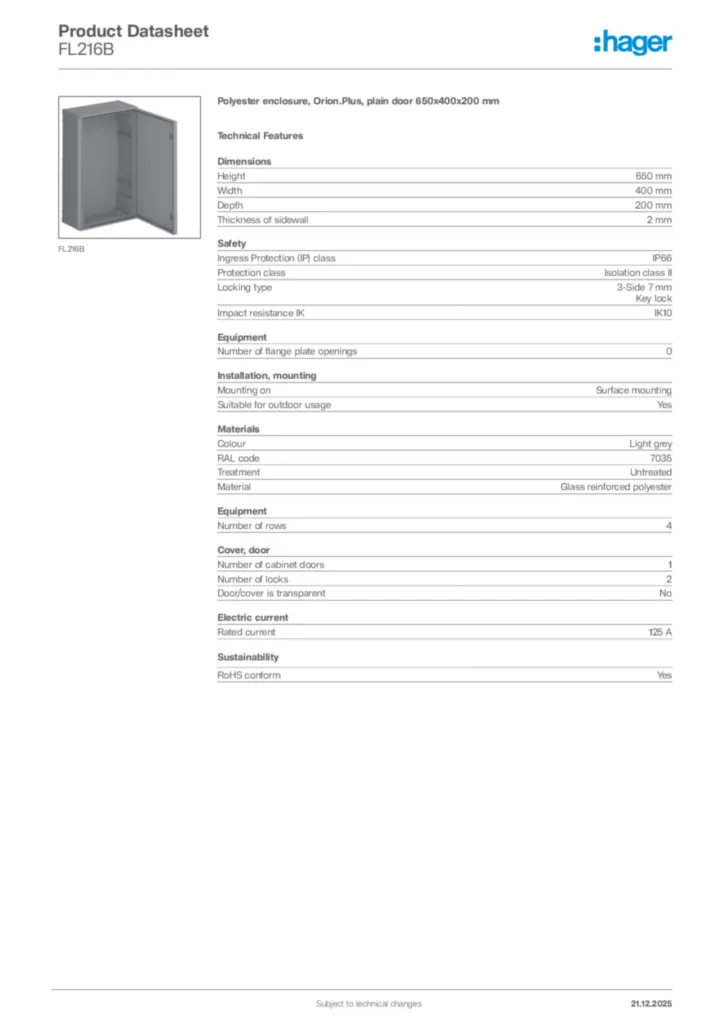

    • Product datasheet

      Image Hager Product data sheet FL216B | Hager Africa

      Hager Product data sheet FL216B

      Polyester enclosure, Orion.Plus, plain door 650x400x200 mm

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-07-06

      PDF
      195,93 kB
      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-02-24

      PDF
      818,77 kB
