The Hager Orion.Plus polyester enclosure with plain single door (500x400x200 mm) provides robust housing for assemblies up to 125 A. Glass‑reinforced polyester with Class II insulation delivers IP66 and IK10 protection for harsh outdoor use. Surface-mounted, 3-row interior, 2 key locks (3-side 7 mm), 2 mm sidewalls, light grey RAL7035. Ideal for industrial, utility, and infrastructure distribution.

EAN

3250610670873

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester enclosure IP66 IK10 Class II 650x400x200 plain door FL213B

Accessories
Technical properties
Environmental value
Documentations
More products

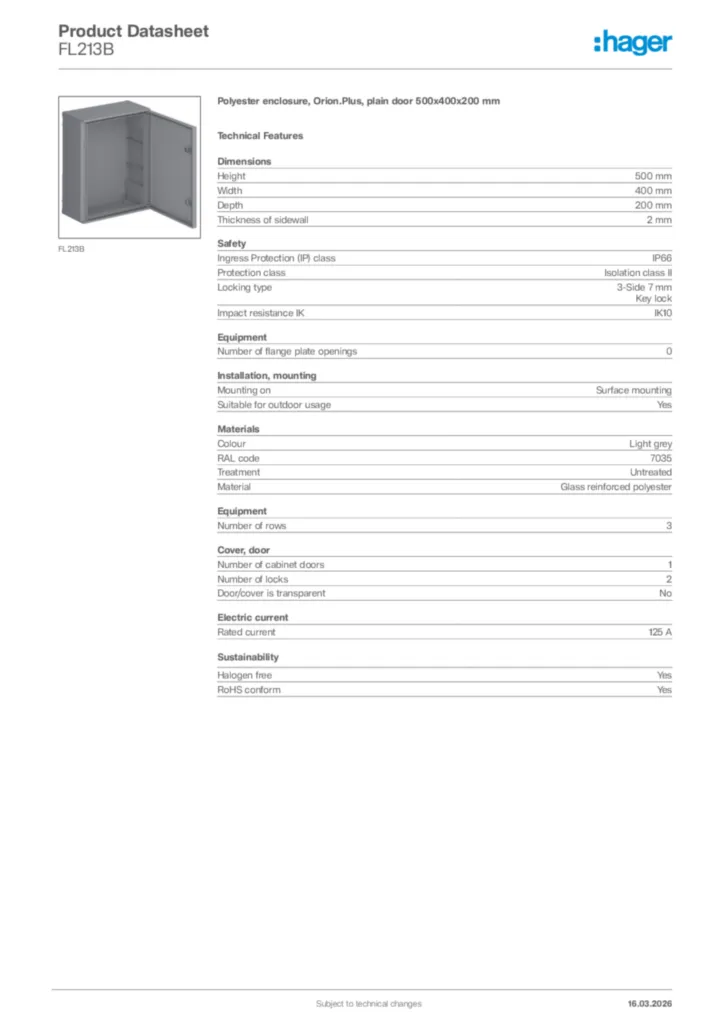

Download the data sheet

Complete your system

Distributor assembly for serial built-in device 5 products available
Cover strip 2 products available
Slotted cable duct system 2 products available
Document holder 1 products available
Mounting plate for distribution board 7 products available
Lock system 5 products available

Technical properties

Height

500 mm
Width

400 mm
Depth

200 mm
Thickness of sidewall

2 mm

Ingress Protection (IP) class

IP66
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK10

Number of flange plate openings

0
Number of rows

3

Mounting on

Surface mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Glass reinforced polyester

Number of cabinet doors

1
Number of locks

2
Door/cover is transparent

No
Cabinet door type

Single door

Rated current

125 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
