Industrial contactor 138A-AC3 / coil 230V 50Hz EW138_J

Name: EW138_J
Brand: Hager
SKU: EW138_J1

EAN

3250612230082

Packaging

1 Piece

Technical properties
Environmental value
Documentations
More products

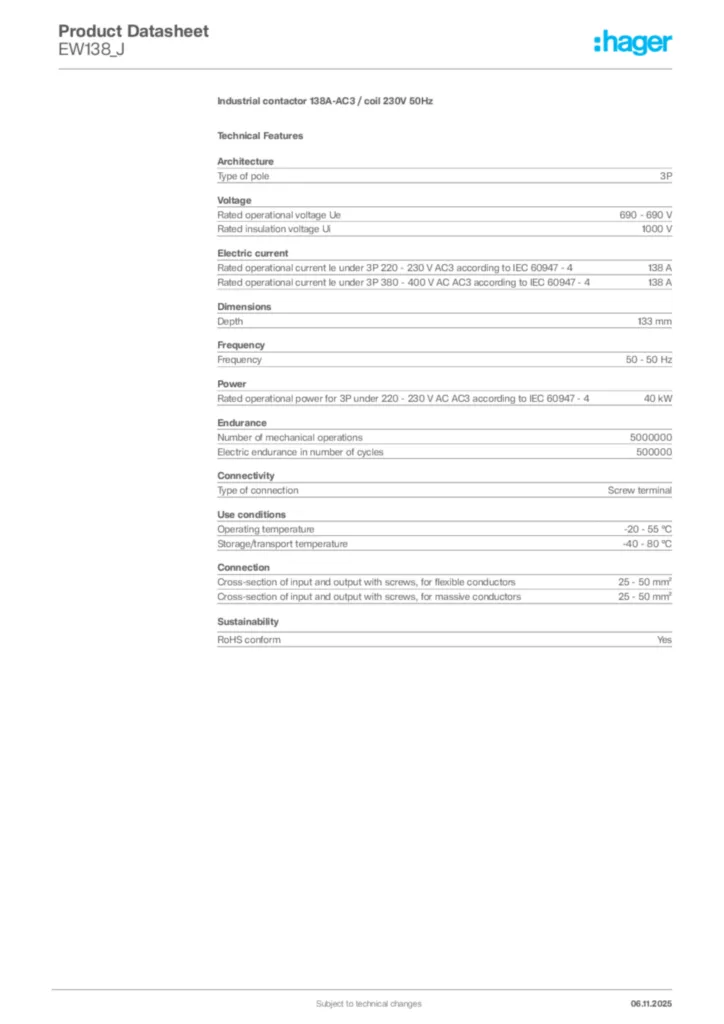

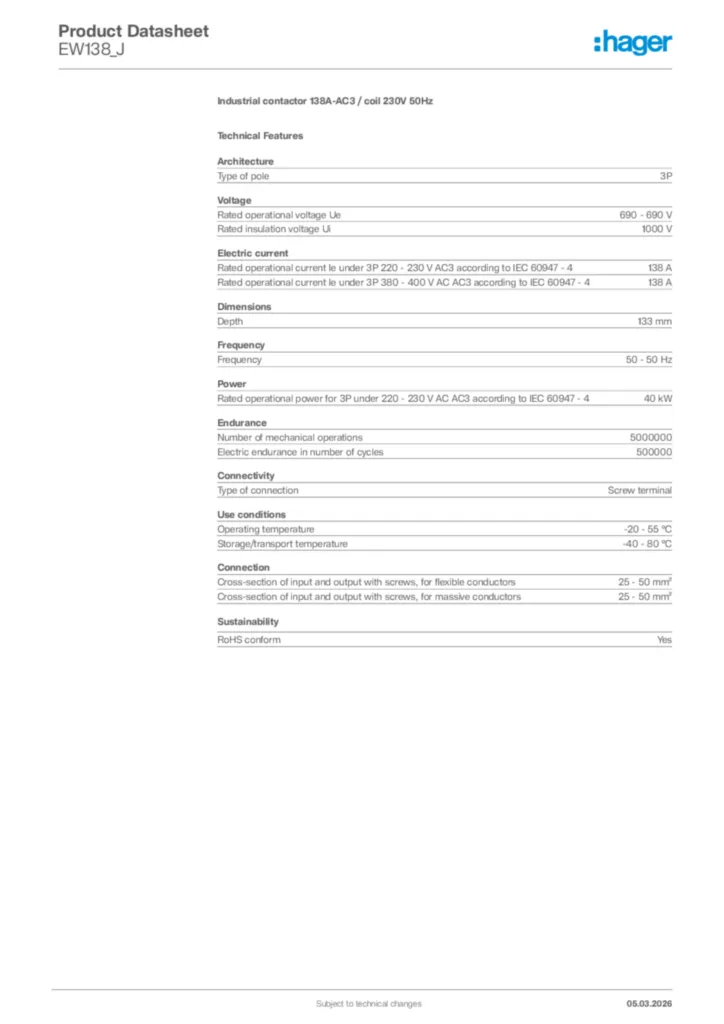

Download the data sheet

Technical properties

Type of pole

3P

Rated operational voltage Ue

690 - 690 V
Rated insulation voltage Ui

1000 V

Rated operational current Ie under 3P 220 - 230 V AC3 according to IEC 60947 - 4

138 A
Rated operational current Ie under 3P 380 - 400 V AC AC3 according to IEC 60947 - 4

138 A

Depth

133 mm

Frequency

50 - 50 Hz

Rated operational power for 3P under 220 - 230 V AC AC3 according to IEC 60947 - 4

40 kW

Number of mechanical operations

5000000
Electric endurance in number of cycles

500000

Type of connection

Screw terminal

Cross-section of input and output with screws, for flexible conductors

25 - 50 mm²
Cross-section of input and output with screws, for massive conductors

25 - 50 mm²

Operating temperature

-20 - 55 °C
Storage/transport temperature

-40 - 80 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
