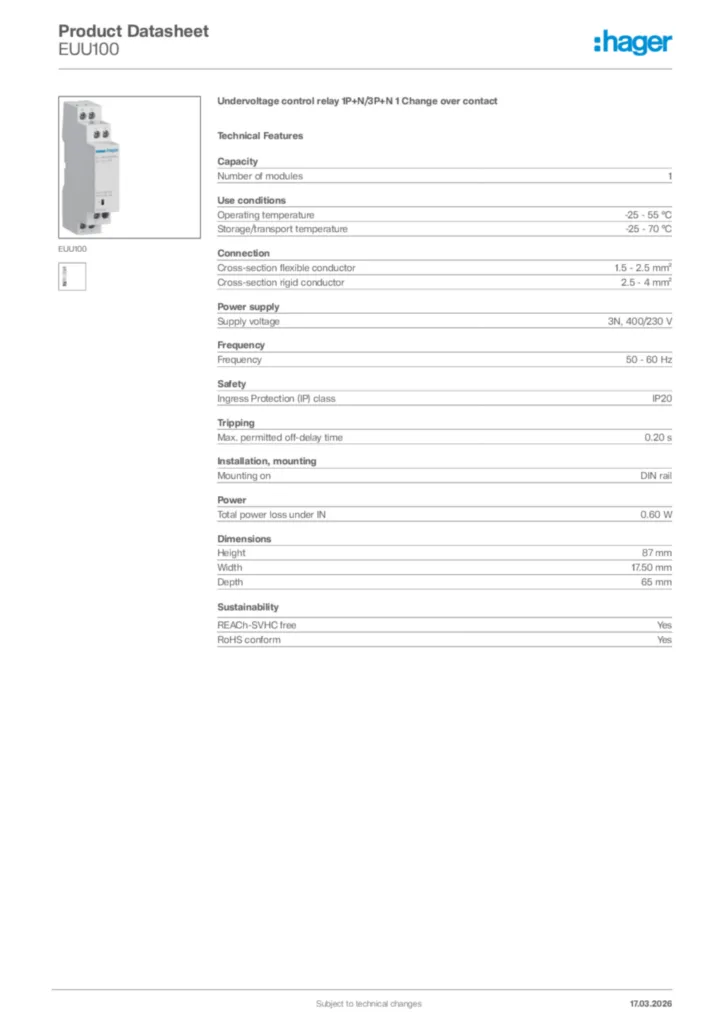

Undervoltage control relay 1P+N/3P+N 1 Change over contact EUU100
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Capacity
-
Number of modules1
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor1.5 - 2.5 mm²
-
Cross-section rigid conductor2.5 - 4 mm²
Power supply
-
Supply voltage3N, 400/230 V
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
Tripping
-
Max. permitted off-delay time0.20 s
Installation, mounting
-
Mounting onDIN rail
Power
-
Total power loss under IN0.60 W
Dimensions
-
Height87 mm
-
Width17.50 mm
-
Depth65 mm
