height adjustable cassette stainl. steel sq. 405mm TM ht. i/e 28/44mm, 20kN EKSQ405TM
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Shape
-
ShapeSquare
Dimensions
-
Built-in depth116 mm
-
Built-in length405 mm
-
Built-in width405 mm
-
Height116 mm
-
Nominal size244 mm
-
Thickness of carpet recess28 mm
Configuration
-
Installation size (floor installation system)Q12
Equipment
-
Chassis part for device cupsYes
-
Number of built-in devices12
-
Number of outlet boxes3
-
Number of conduit outlets1
-
Type of conduit outletScrewable
Use conditions
-
Vertical load applied across large surface area (heavy load)20 kN
-
Vertical load applied across small surface area3 kN
Materials
-
Colour conduit outletSilver
-
MaterialStainless steel
-
ColourStainless steel
Installation, mounting
-
Suitable for recessed floor mountingYes
-
Suitable for raised floor installationYes
-
Suitable for sub-floor ductYes
Safety
-
Impact resistance IKIK10
-
Halogen freeYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

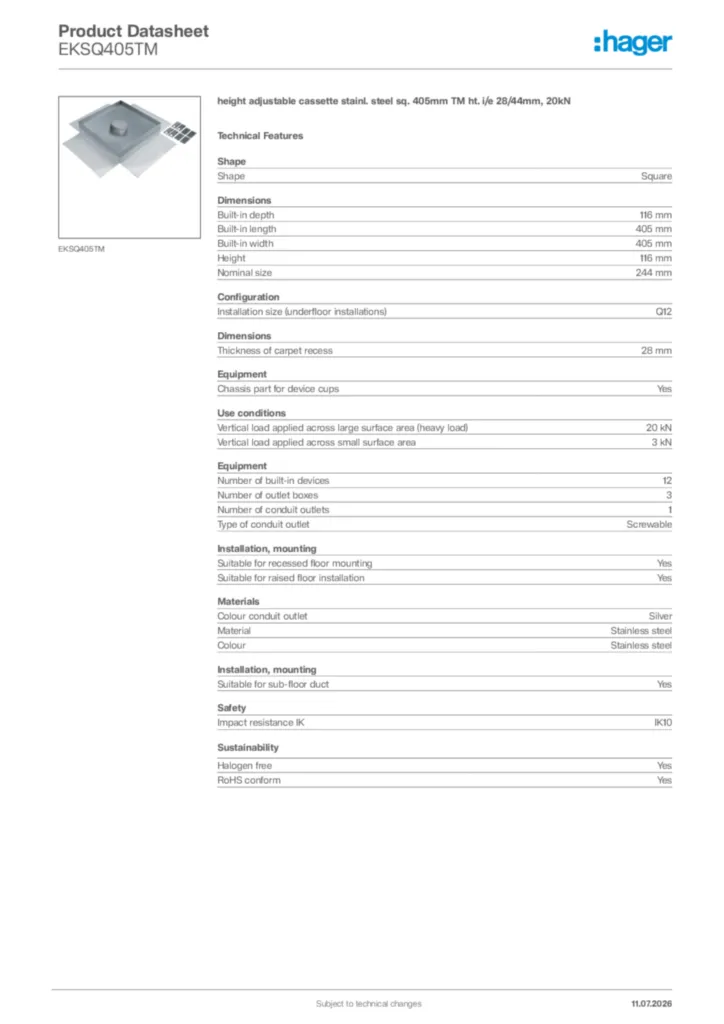

Hager Product data sheet EKSQ405TM
