Motion detector highbay 360° surface mounted NO contact detection height 8m EER518
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Detection
-
Detection angle360 - 360 °
-
Type of sensorMovement detector
-
Detection angle horizontal360 - 360
Settings
-
Time delay1 Min - 1 h
-
Minimal duty cycle2 s
-
Response brightness adjustableYes
-
Response sensitivity adjustableYes
-
Switch on delay time0
Lighting
-
Response brightness adjustable5- 2000 lx
-
LED lamp power400 W
-
Photocell sensitivity5 - 2000 lx
Connection
-
Connector/plug typePlug-in terminal
Functions
-
Teach function for response value luminosityYes
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Built-in depth78 mm
-
Recommended installation height6 - 9 m
-
Installation height6- 10 m
-
Diameter105 mm
-
Built-in diameter0
Power
-
230 V incandescent and halogen lamp2000 W
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
RAL code9010
-
MaterialPlastic
-
Surface finishMatt
Safety
-
Ingress Protection (IP) classIP41
Equipment
-
C loadNo
-
Substation inputYes
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
-
Ceiling mounting possibleYes
Power supply
-
Supply voltage230 V +10%/-15%
Reach distance
-
Max. transmission range frontally7 m
-
Max. transmission range sideways11 m
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

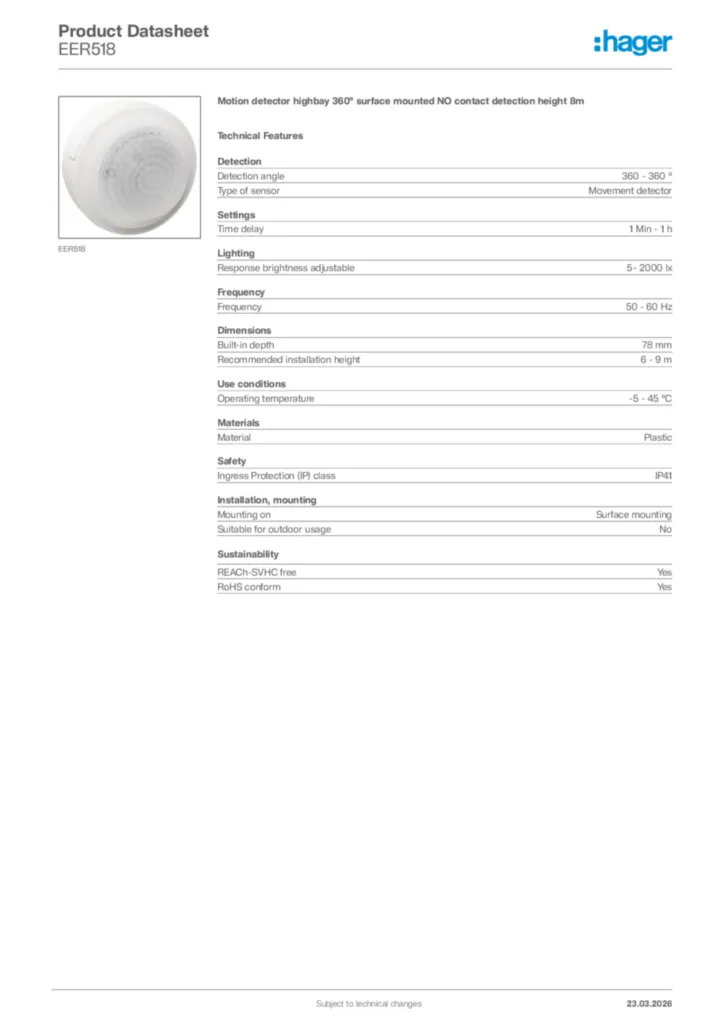

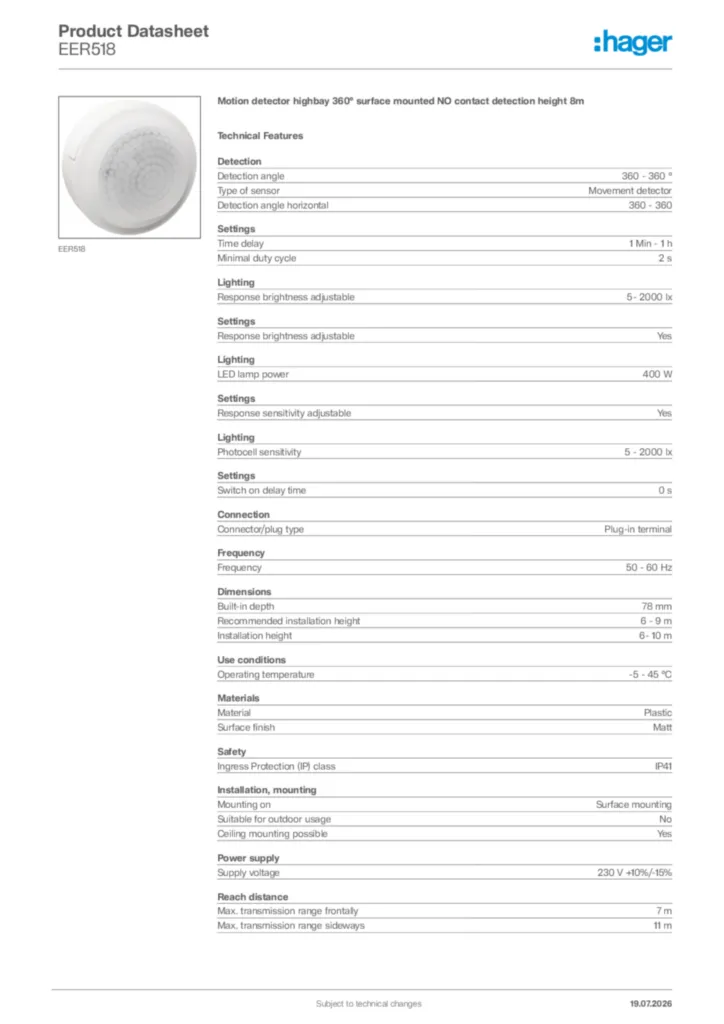

Hager Product data sheet EER518
