Motion detector corridor 360° surface mounted NO contact detection 5x30m EER515
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Detection
-
Detection angle360 - 360
-
Type of sensorMovement detector
-
Detection angle horizontal0 - 0
Settings
-
Switch off delay time0
-
Switch on delay time0
Lighting
-
LED lamp power400 W
-
Photocell sensitivity5 - 2000 lx
Connection
-
Connector/plug typePlug-in terminal
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Built-in depth78 mm
-
Installation height2.50 - 2.50 m
-
Diameter105 mm
-
Built-in diameter68 mm
Materials
-
RAL code9010
-
MaterialPlastic
-
Surface finishMatt
Safety
-
Ingress Protection (IP) classIP41
Equipment
-
C loadNo
Installation, mounting
-
Mounting onSurface mounting
-
Ceiling mounting possibleYes
Reach distance
-
Max. transmission range frontally5 m
-
Max. transmission range sideways10 m
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

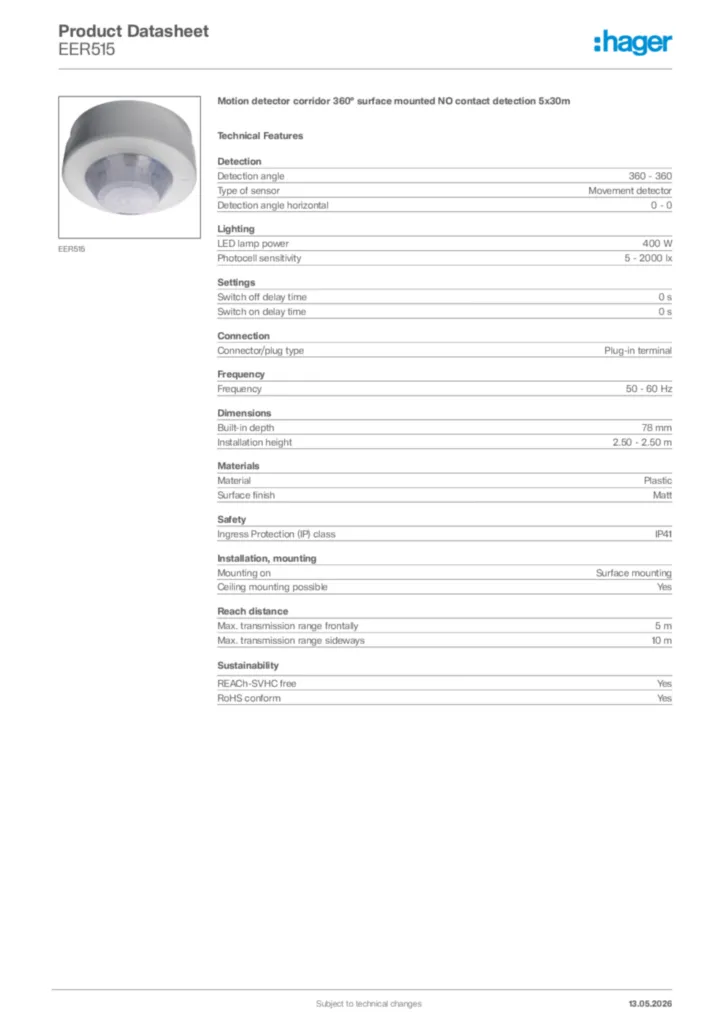

Hager Product data sheet EER515
Motion detector corridor 360° surface mounted NO contact detection 5x30m
PDF -
ProductInstallationManual
Manual for EER505-EER515 - Motion detector corridor 360° (EN-IT, 2022-03)
Installation manual en-GB, it-IT 2022-03-15
PDF1,49 MB -
ProductECDeclaration
Eu Declaration of Conformity
Declaration of conformity en-GB 2026-09-24
PDF380,65 kB
