Presence/motion detector 360° flush-mounted NO contact detection Ø20m EER503
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Detection
-
Detection angle360 - 360
-
Type of sensorPresence detector
-
Detection angle horizontal360 - 360
Settings
-
Switch off delay time0
-
Switch on delay time0
Lighting
-
LED lamp power400 W
-
Photocell sensitivity5 - 2000 lx
Connection
-
Connector/plug typePlug-in terminal
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Built-in depth78 mm
-
Installation height2.50 - 2.50 m
-
Diameter85 mm
-
Built-in diameter68 mm
Materials
-
RAL code9010
-
MaterialPlastic
-
Surface finishMatt
Safety
-
Ingress Protection (IP) classIP41
Equipment
-
C loadNo
Installation, mounting
-
Mounting onFlush mounting
-
Ceiling mounting possibleYes
Reach distance
-
Max. transmission range frontally5 m
-
Max. transmission range sideways10 m
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

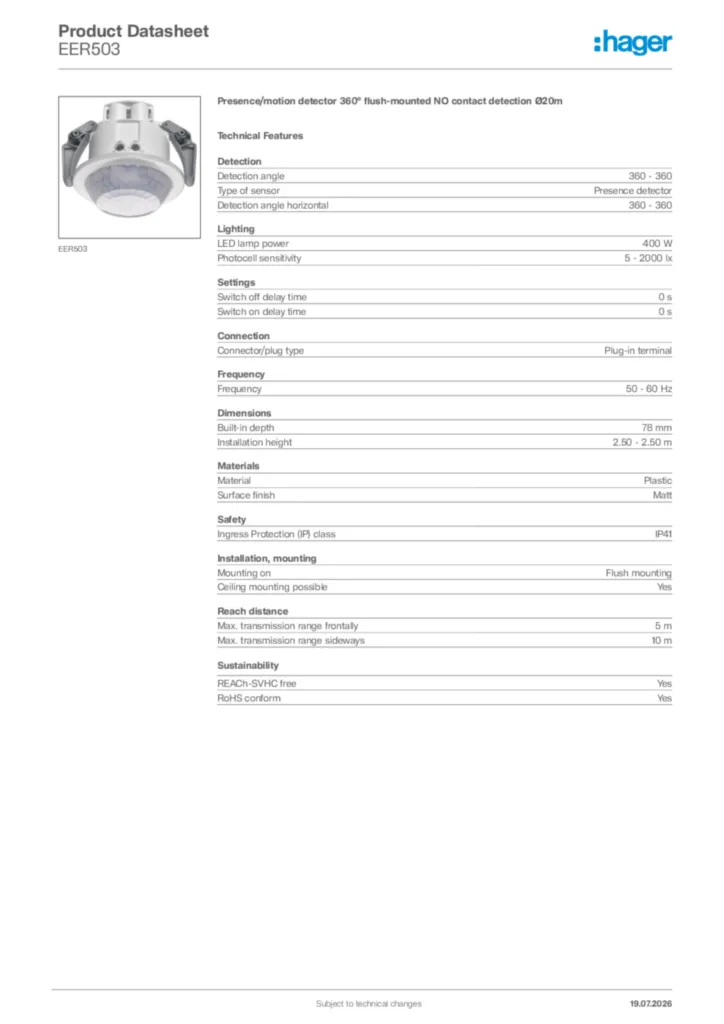

Hager Product data sheet EER503
Presence/motion detector 360° flush-mounted NO contact detection Ø20m
PDF -
ProductInstallationManual
Manual for EER503-EER513 - Presence detector/motion detector 360° (EN-IT, 2022-03)
Installation manual en-GB, it-IT 2022-03-15
PDF1,38 MB -
ProductECDeclaration
Declaration of conformity en-GB, fr-FR 2024-01-18
PDF112,22 kB
Declaration of conformity en-GB 2024-01-18
PDF101,16 kB
