The Hager 360° flush-mounted presence/motion detector with NO contact automates lighting for energy savings and comfort. It covers Ø10 m at 2.5 m height, supports up to 400 W LED, and offers 5-2000 lx photocell sensitivity with instant on/off (0 s). Plug-in terminals ease wiring. Ceiling flush fit (73 mm depth), IP41, glossy plastic. Ideal for corridors, offices, and washrooms.
EAN
3250612256228
Packaging
1 Piece
Small distributor flush 2-row 24M IP40 Class II 63A transparent door with N/PE EER501
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Detection
-
Detection angle360 - 360
-
Type of sensorPresence detector
-
Detection angle horizontal360 - 360
Settings
-
Switch off delay time0
-
Switch on delay time0
Lighting
-
LED lamp power400 W
-
Photocell sensitivity5 - 2000 lx
Connection
-
Connector/plug typePlug-in terminal
Frequency
-
Frequency50 - 50 Hz
Dimensions
-
Built-in depth73 mm
-
Installation height2.50 - 2.50 m
Materials
-
MaterialPlastic
-
Surface finishGlossy
Safety
-
Ingress Protection (IP) classIP41
Installation, mounting
-
Mounting onFlush mounting
-
Ceiling mounting possibleYes
Reach distance
-
Max. transmission range frontally2.50 m
-
Max. transmission range sideways5 m
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

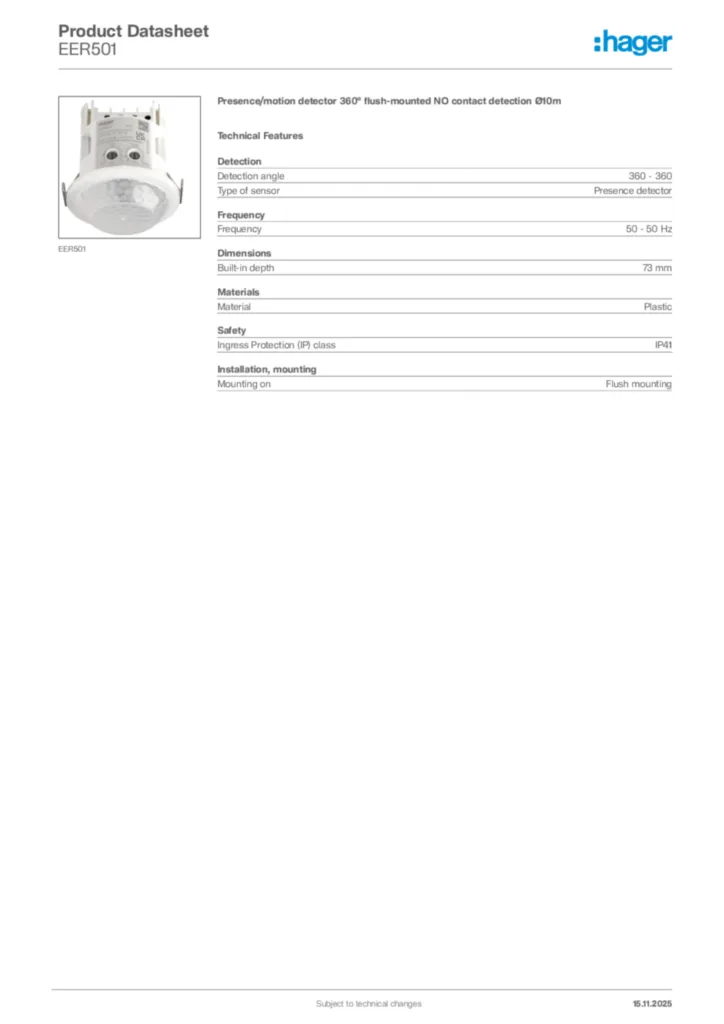

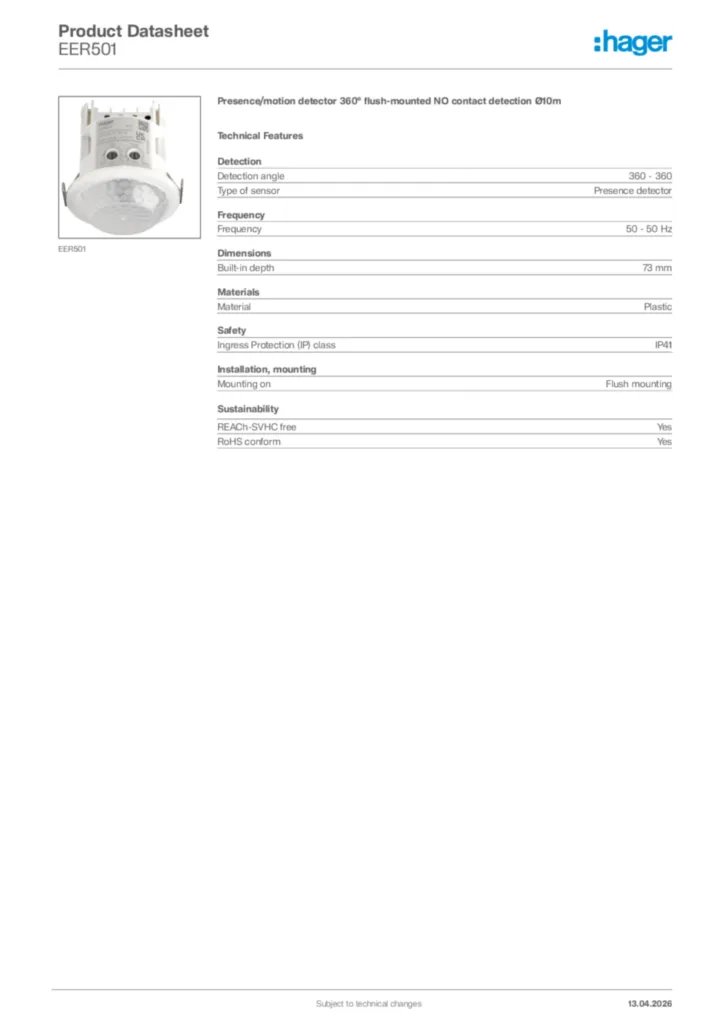

Product datasheet
Hager Product data sheet EER501
Presence/motion detector 360° flush-mounted NO contact detection Ø10m
PDF -
Installation manual
Manual for EER501 - Presence detector/motion detector mini 360° built-in (EN-IT, 2022-03)
Installation manual en-GB, it-IT 2022-03-15
PDF540,09 kB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB, fr-FR 2023-11-03
PDF110,99 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2024-12-04
PDF109,23 kB
