Motion detector DALI2 corridor 360° surface mounted detection 5x20m EED515
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for movement sensor 2 products available
Technical properties
Detection
-
Detection angle360 - 360
-
Type of sensorMovement detector
-
Detection angle horizontal0 - 0
Settings
-
Switch off delay time0
-
Switch on delay time0
Lighting
-
LED lamp power0
-
Photocell sensitivity5 - 2000 lx
Connection
-
Connector/plug typePlug-in terminal
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Built-in depth0
-
Installation height3 - 3 m
Materials
-
MaterialPlastic
-
Surface finishGlossy
Safety
-
Ingress Protection (IP) classIP41
Installation, mounting
-
Mounting onSurface mounting
-
Ceiling mounting possibleYes
Power supply
-
Supply voltage230 V
Reach distance
-
Max. transmission range frontally14 m
-
Max. transmission range sideways15 m
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

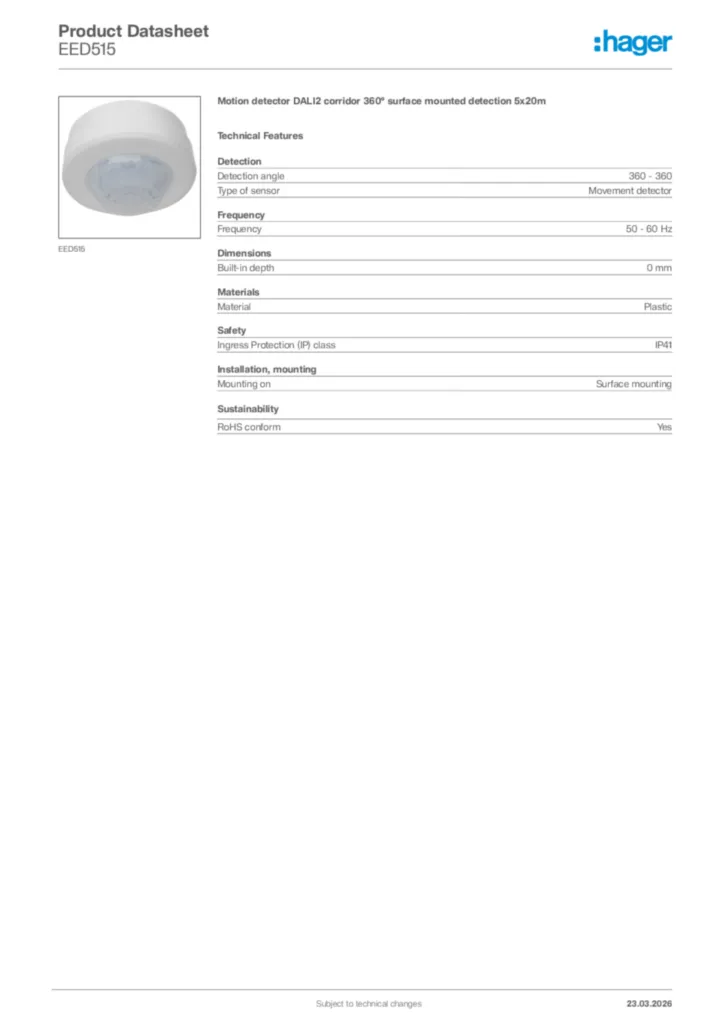

Product datasheet
Hager Product data sheet EED515
Motion detector DALI2 corridor 360° surface mounted detection 5x20m
PDF -
Installation manual
Installation manual en-GB, it-IT 2022-06-22
PDF2,69 MB -
Declaration of conformity
Declaration of conformity International 2024-01-18
PDF108,63 kB
Declaration of conformity International 2024-01-18
PDF118,37 kB
