Movement detector 360° flush mounted with normally open contact EE805A
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Detection
-
Detection angle360 - 360
-
Type of sensorMovement detector, Presence detector
-
Detection angle horizontal360 - 360
Settings
-
Time delay5 S - 15 Min
-
Response sensitivity adjustableNo
-
Switch off delay time0
-
Switch on delay time0
Lighting
-
Response brightness adjustable5 - 1000 lx
-
LED lamp power400 W
-
Photocell sensitivity5 - 1000 lx
Connection
-
Connector/plug typePrism clamp
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Width19 mm
-
Built-in depth55 mm
-
Recommended installation height2.5 - 3.5 m
-
Installation height2 - 4 m
Use conditions
-
Operating temperature0 - 45 °C
Materials
-
ColourWhite
-
MaterialPlastic
-
Surface finishMatt
Safety
-
Ingress Protection (IP) classIP21
Installation, mounting
-
Mounting onFlush mounting
-
Suitable for outdoor usageNo
-
Ceiling mounting possibleNo
Texts
-
FunctionCan only be used as individual unit
-
Installation modeWith spring clips for ceiling installation, For ceiling mounting
-
Type of connectionWith screw terminals
Power supply
-
Supply voltage230 V +10%/-15%
Reach distance
-
Max. transmission range frontally6 m
-
Max. transmission range sideways6 m
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

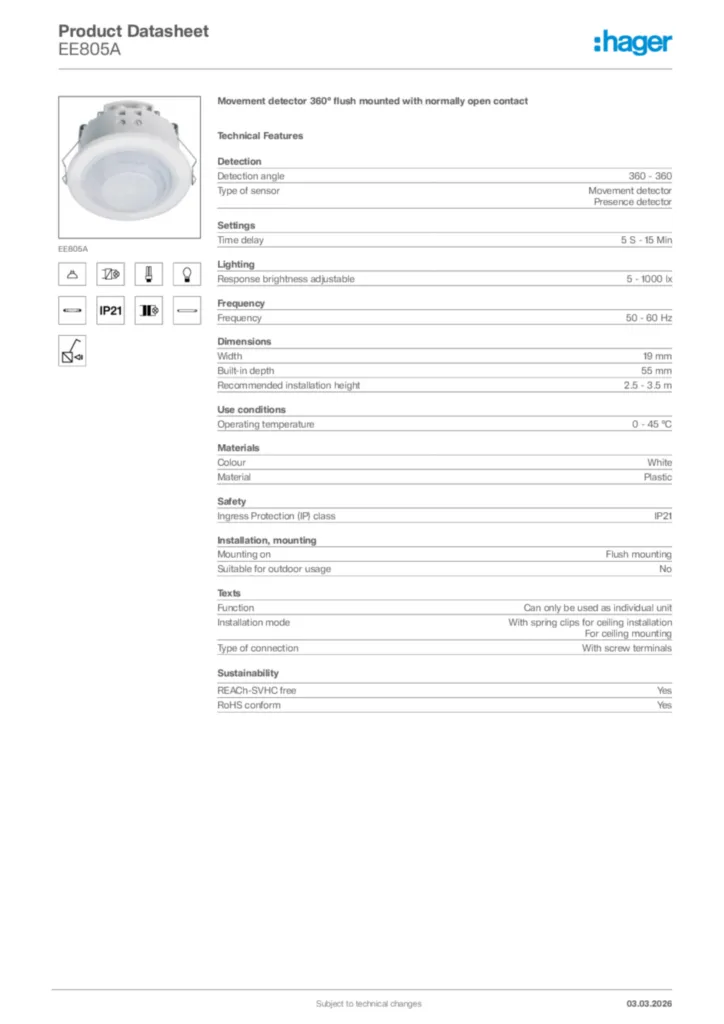

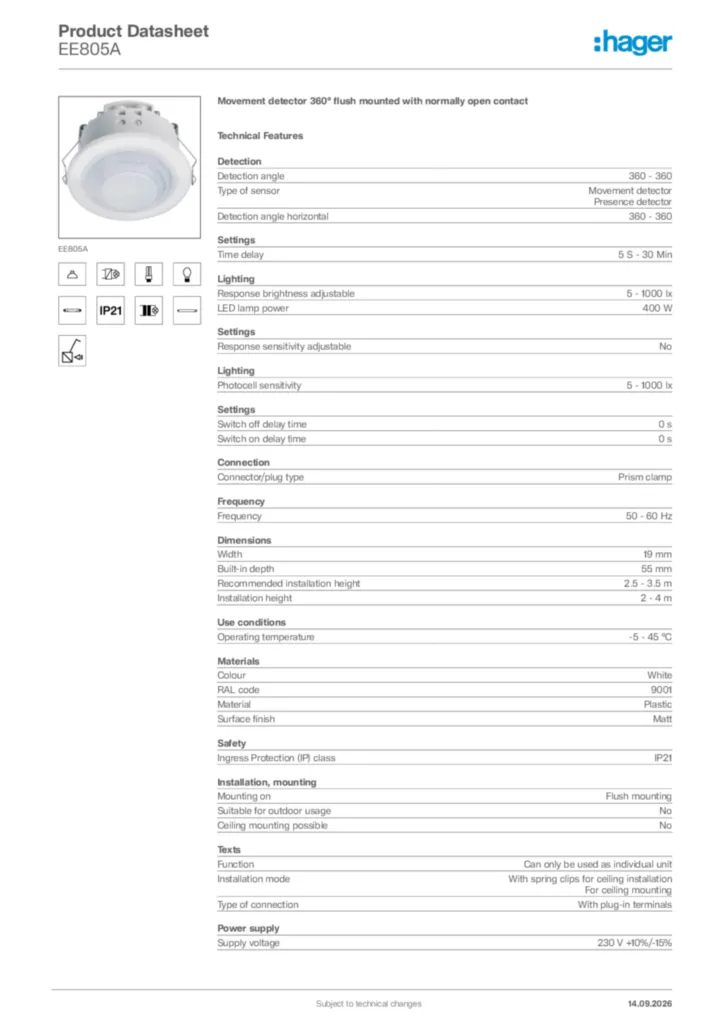

Hager Product data sheet EE805A
Movement detector 360° flush mounted with normally open contact
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-04
PDF126,18 kB
