The Hager 1 Phase kWhmeter direct 40A 1M provides accurate single-tariff energy metering for 1P+N circuits up to 40A. Electronic direct measurement (Class B) with optical pulse output enables easy monitoring. Compact 1-module (18 mm) DIN-rail design, direct connection with terminals up to 16 mm². Operates 184-276 V, 45-65 Hz, -25-55°C. Low loss (1 W/2 VA). Ideal for sub-metering in residential and light commercial panels.

EAN

3250612231355

Packaging

1 Piece

Motor electrical interlock Type B IP4X 2 m cable x250/P250/h250-h1000 ECN140D

Technical properties
Environmental value
Documentations
More products

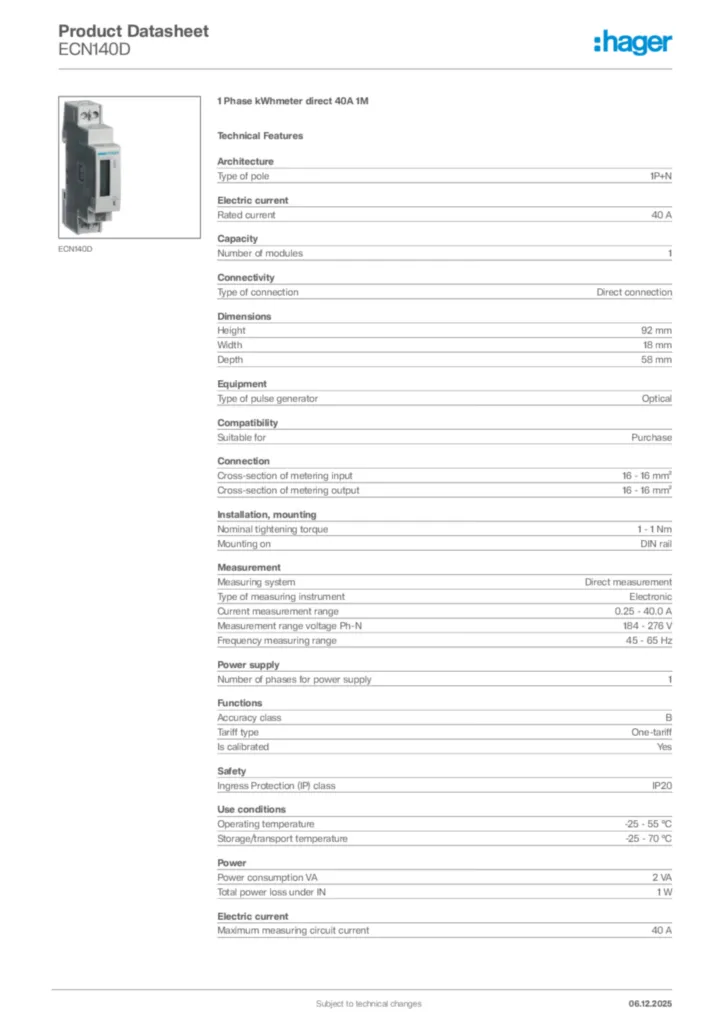

Download the data sheet

Technical properties

Type of pole

1P+N

Rated current

40 A
Maximum measuring circuit current

40 A

Number of modules

1

Type of connection

Direct connection

Height

92 mm
Width

18 mm
Depth

58 mm

Type of pulse generator

Optical

Suitable for

Purchase

Cross-section of metering input

16 - 16 mm²
Cross-section of metering output

16 - 16 mm²

Nominal tightening torque

1 - 1 Nm
Mounting on

DIN rail

Measuring system

Direct measurement
Type of measuring instrument

Electronic
Current measurement range

0.25 - 40.0 A
Measurement range voltage Ph-N

184 - 276 V
Frequency measuring range

45 - 65 Hz

Number of phases for power supply

1

Accuracy class

B
Tariff type

One-tariff
Is calibrated

Yes

Ingress Protection (IP) class

IP20

Operating temperature

-25 - 55 °C
Storage/transport temperature

-25 - 70 °C

Power consumption (VA)

2 VA
Total power loss under IN

1 W

Frequency

50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
