Hager 3 Phase kWh meter via CT 1A/5A, 4M, MODBUS MID delivers Class B, billing-grade energy metering for 3P+N systems. DIN-rail 4 modules, works with 1A or 5A CTs (0.01-6A), 92-276V Ph-N / 160-480V Ph-Ph, 45-65Hz. RS-485 Modbus enables remote reading and up to 8 tariffs; optical pulse output aids verification. Low loss, IP20. Ideal for purchase/supply, sub-metering, and energy management.

EAN

3250612231454

Packaging

1 Piece

AGARDIO MID 3-Phase kWh meter Direct 125A Modbus RS-485 6M 3P+N ECR300C

Technical properties
Environmental value
Documentations
More products

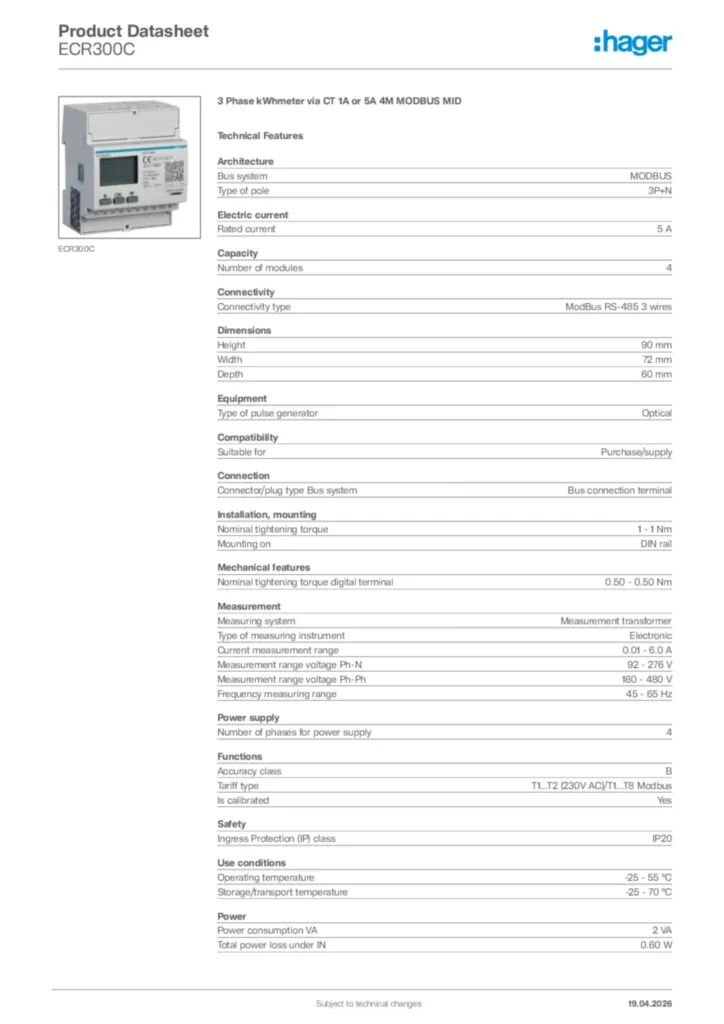

Download the data sheet

Technical properties

Bus system

MODBUS
Type of pole

3P+N

Rated current

5 A
Maximum measuring circuit current

6 A

Number of modules

4

Connectivity type

ModBus RS-485 3 wires

Height

90 mm
Width

72 mm
Depth

60 mm

Type of pulse generator

Optical

Suitable for

Purchase/supply

Connector/plug type Bus system

Bus connection terminal

Nominal tightening torque

1 - 1 Nm
Mounting on

DIN rail

Nominal tightening torque digital terminal

0.50 - 0.50 Nm

Measuring system

Measurement transformer
Type of measuring instrument

Electronic
Current measurement range

0.01 - 6.0 A
Measurement range voltage Ph-N

92 - 276 V
Measurement range voltage Ph-Ph

160 - 480 V
Frequency measuring range

45 - 65 Hz

Number of phases for power supply

4

Accuracy class

B
Tariff type

T1...T2 (230V AC)/T1...T8 Modbus
Is calibrated

Yes

Ingress Protection (IP) class

IP20

Operating temperature

-25 - 55 °C
Storage/transport temperature

-25 - 70 °C

Power consumption (VA)

2 VA
Total power loss under IN

0.60 W

Frequency

50 - 50 Hz
