The Hager BA7 slotted panel trunking 100x100 mm in stone grey (RAL7030) ensures neat, safe cable routing in panels and control cabinets. Rigid PVC, self-extinguishing (UL94 V0) with M1 fire resistance. Slotted side walls (6/6.5 mm) for easy cable exit. Supplied with cover, 2 m length. Protects and organizes conductors, speeds installation, and keeps wiring tidy and serviceable.
EAN
4012740878685
VPE
12 meters
Slotted panel trunking PVC BA7 25x25mm 2m Stone Grey RAL7030 UL94 V0, cover M1 BA7100100
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Spacer sleeve 2 product.page.accessories.products-available -
Wire clamp slotted cable duct system 1 product.page.accessories.products-available -
Draper hand riveter 3 product.page.accessories.products-available -
Screw rosette 1 product.page.accessories.products-available -
Shears for cutting trunking 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Height100 mm
-
Width100 mm
-
Length2000 mm
-
Slit width6 mm
-
Slot width6.50 mm
-
Inner cross-section8488 - 8488 mm²
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPolyvinylchloride (PVC)
-
ColourStone grey
-
RAL code7030
Functions
-
Is self-extinguishingYes
Standards
-
Flammability class according UL94V0
Safety
-
Fire resistance classM1
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Connectivity
-
Mounting typeScrew mounting, Rivet mounting
Installation, mounting
-
Mounting onMounting plate
Electric current
-
Is current leak stableYes
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

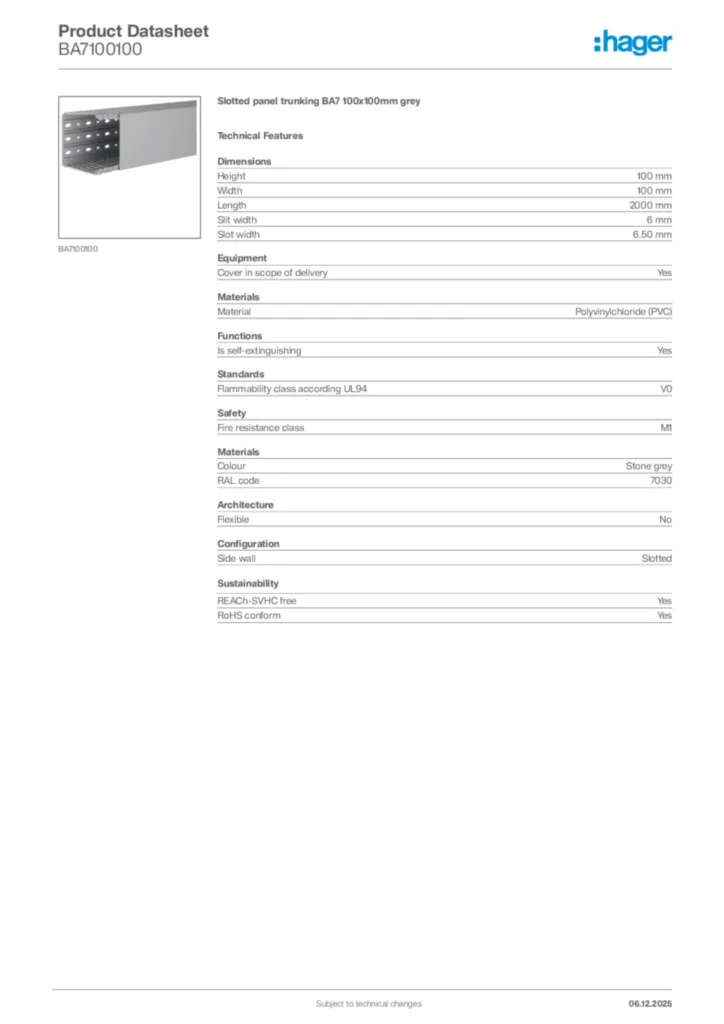

Hager Product data sheet BA7100100
