Slotted panel trunking made of PVC BA6 60x120mm stone grey BA66012007030B
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Spacer sleeve 2 product.page.accessories.products-available -
Draper hand riveter 3 product.page.accessories.products-available -
Screw rosette 1 product.page.accessories.products-available -
Shears for cutting trunking 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Height65 mm
-
Width129 mm
-
Length2000 mm
-
Slit width4 mm
-
Slot width6 mm
-
Inner cross-section7740 - 7740 mm²
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPolyvinylchloride (PVC)
-
ColourStone grey
-
RAL code7030
Functions
-
Is self-extinguishingYes
Standards
-
Flammability class according UL94V0
Safety
-
Fire resistance classM1
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Connectivity
-
Mounting typeScrew mounting, Rivet mounting
Installation, mounting
-
Mounting onMounting plate
Electric current
-
Is current leak stableYes
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

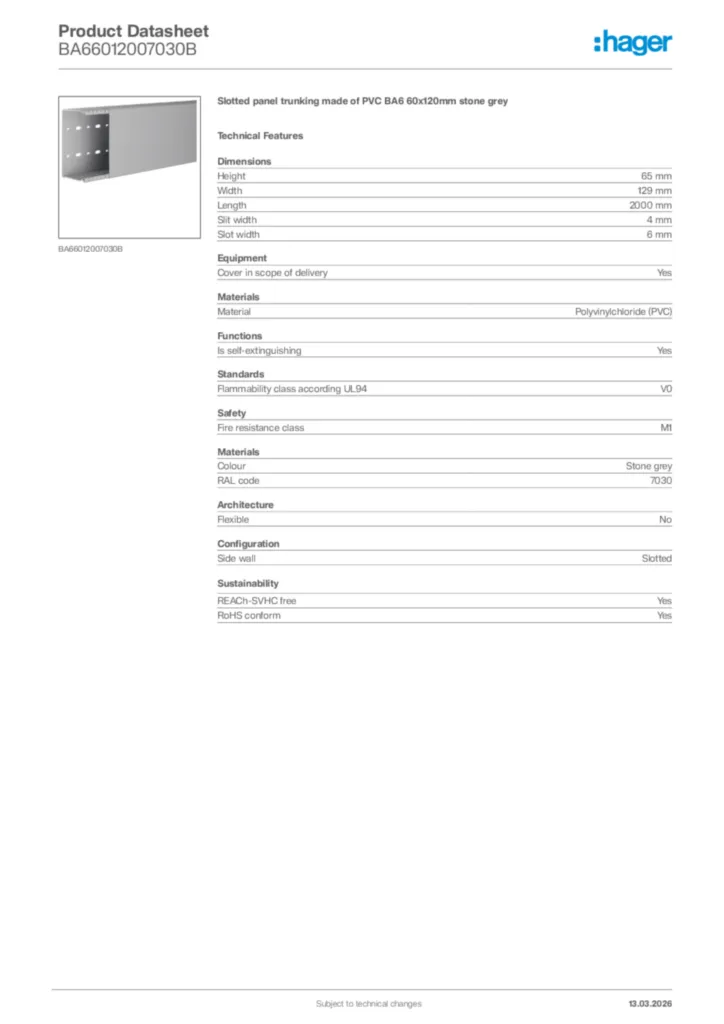

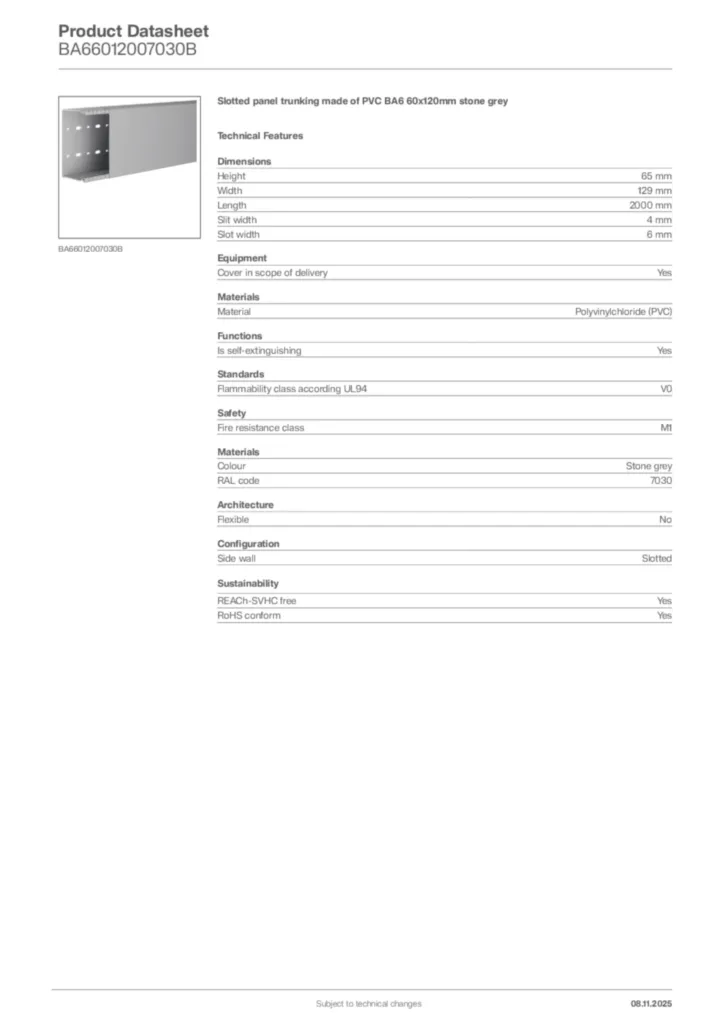

Hager Product data sheet BA66012007030B
Slotted panel trunking made of PVC BA6 60x120mm stone grey
PDF -
ProductBimStep
Step Model BA66012007030B
STEP files International 2026-04-15
STP609,97 kB -
ProductECDeclaration
Declaration of conformity en-GB 2026-08-07
PDF330,89 kB
