The Hager Light switch enhanced 16A compact is a dusk-to-dawn controller for 230 V lighting. Its integrated light sensor (5-1000 lx, adjustable 2-1000 lx) with 120 s on/off delay prevents nuisance switching. Supports up to 2300 W incandescent/halogen or 2000 VA fluorescent. Compact for wall, mast or flush mounting. 230 V ±10% supply, 1NO contact, screw terminals for 1-4 mm², compatible with motion sensors.

EAN

3542220045050

Packaging

1 Piece

Combined fuse carrier 1P 20A 380V 10x38 cartridge toggle 1 module 4505

Technical properties
Environmental value
Documentations
More products

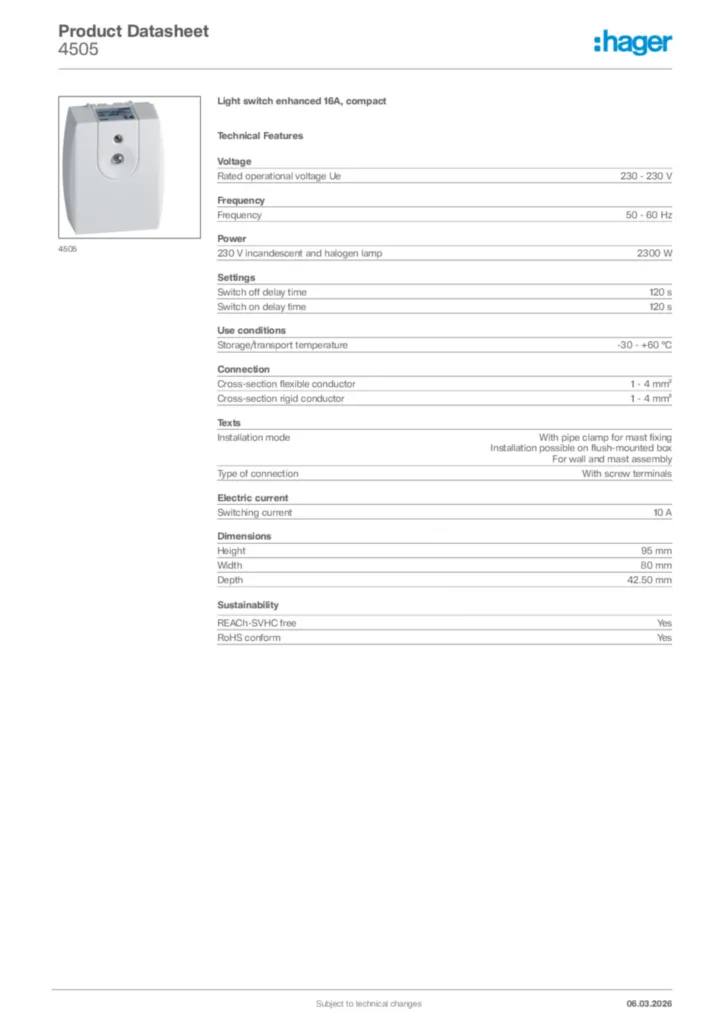

Download the data sheet

Technical properties

Rated operational voltage Ue

230 - 230 V

Frequency

50 - 60 Hz

230 V incandescent and halogen lamp

2300 W
Power incandescent lamp

2300 - 2300 W

Switch off delay time

120 s
Switch on delay time

120 s

Storage/transport temperature

-30 - +60 °C
Operating temperature

-25 - +45 °C

Cross-section flexible conductor

1 - 4 mm²
Cross-section rigid conductor

1 - 4 mm²
Conductor cross-section

1 - 4 mm²
Type of contacts

1NO

Installation mode

With pipe clamp for mast fixing, Installation possible on flush-mounted box, For wall and mast assembly
Type of connection

With screw terminals

Switching current

10 A

Height

95 mm
Width

80 mm
Depth

42.50 mm

Brightness measuring range

5 - 1000 lx
Max. load fluorescent lamp

2000 VA
Photocell sensitivity

2 - 1000 lx

Supply voltage

230 V +/- 10%

Applicable with movement sensor

Yes

Type of sensor

Light sensor integrated

Cable length

0.10 m

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
