The Hager compact basic 8A light switch with integrated photocell automates lighting based on ambient brightness. Operating at 230 V/50-60 Hz, it handles up to 1000 W incandescent/halogen or 400 VA fluorescent. Adjustable 10-30 lx sensitivity with 40 s on and 120 s off delays reduces nuisance switching. 1NO contact, screw terminals, 1-4 mm² wiring. Wall, mast or flush-box mounting; works with motion sensors. Ideal for outdoor lighting.

EAN

3542220045043

Packaging

1 Piece

Light switch with integrated photocell 230V 10A 5-1000 lx 1NO 4504

Technical properties
Environmental value
Documentations
More products

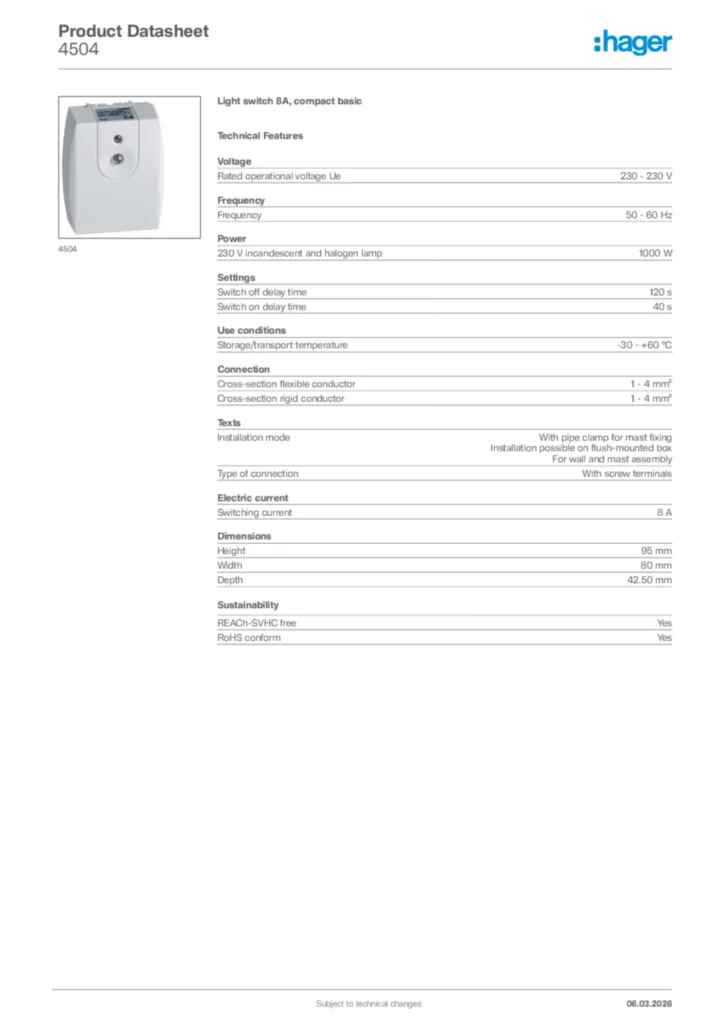

Download the data sheet

Technical properties

Rated operational voltage Ue

230 - 230 V

Frequency

50 - 60 Hz

230 V incandescent and halogen lamp

1000 W
Power incandescent lamp

1000 - 1000 W

Switch off delay time

120 s
Switch on delay time

40 s

Storage/transport temperature

-30 - +60 °C
Operating temperature

-25 - +45 °C

Cross-section flexible conductor

1 - 4 mm²
Cross-section rigid conductor

1 - 4 mm²
Conductor cross-section

1 - 4 mm²
Type of contacts

1NO

Installation mode

With pipe clamp for mast fixing, Installation possible on flush-mounted box, For wall and mast assembly
Type of connection

With screw terminals

Switching current

8 A

Height

95 mm
Width

80 mm
Depth

42.50 mm

Brightness measuring range

10 - 30 lx
Max. load fluorescent lamp

400 VA
Photocell sensitivity

10 - 30 lx

Supply voltage

230 V +/- 10%

Applicable with movement sensor

Yes

Type of sensor

Light sensor integrated

Cable length

0.10 m

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
