Volta 3Row 7W 1RCD - 2x6A Ltg. RCBOs VF9101

EAN
3250619925691
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Volta 3Row 7W 1RCD - 2x6A Ltg. RCBOs

VF9101

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (22)
    • Push-in terminal 12 products available
    • Quick­-re­lease fastener for housing covers 1 products available
    • Door/­op­er­ating panel 2 products available
    • Cover strip 3 products available
    • Accessor­ies/s­pare parts for terminals 2 products available
    • Cross-­con­nector for terminal block 1 products available

    Complete your system

    • Push-in terminal
    • Quick­-re­lease fastener for housing covers
    • Door/­op­er­ating panel
    • Cover strip
    • Accessor­ies/s­pare parts for terminals
    • Cross-­con­nector for terminal block
    • Lock system
    • KN99E

      Terminal, QC, earth, jumper, 1 Set=10piece
      0.00 €  / *
    • KN26N

      Terminal, QuickConnect, neutral, 26 connections
      0.00 €  / *
    • KN26E

      Terminal, QuickConnect, earth, 26 connections
      0.00 €  / *
    • KN22N

      Terminal, QuickConnect, neutral, 22 connections
      0.00 €  / *
    • KN22E

      Terminal, QuickConnect, earth, 22 connections
      0.00 €  / *
    • KN18N

      Terminal, QuickConnect, neutral, 18 connections
      0.00 €  / *
    • KN18E

      Terminal, QuickConnect, earth, 18 connections
      0.00 €  / *
    • KN14N

      Terminal, QuickConnect, neutral, 14 connections
      0.00 €  / *
    • KN14E

      Terminal, QuickConnect, earth, 14 connections
      0.00 €  / *
    • KN10N

      Terminal, QuickConnect, neutral, 10 connections
      0.00 €  / *
    • KN06N

      Terminal, QuickConnect, neutral, 6 connections
      0.00 €  / *
    • KN06E

      Terminal, QC, earth, 6 connections
      0.00 €  / *
    • VZ225N

      Locking bolt, Volta, for Cover, spare part
      0.00 €  / *
    • VZ133N

      Door, Volta, flush/Hollow wall, transparent, 3rows
      0.00 €  / *
    • VZ103N

      Door frame, Volta, 3rows, with Door, RAL 9010
      0.00 €  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *
    • VZ711

      Temrinal base, volta, for distributor size 12M, golf, vector, accessory
      0.00 €  / *
    • KN00A

      Terminal carrier, QC, universal adapter
      0.00 €  / *
    • KN99N

      Terminal, QC, neutral, jumper, 1 Set=10piece
      0.00 €  / *
    • VZ302N

      Key lock, Volta, standard, for installation in door handle
      0.00 €  / *

    Technical properties

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      3
    • Number of rows
      3
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      36
    Dimen­sions
    • Height
      630.50 mm
    • Width
      348 mm
    • Depth
      94.50 mm
    • Built-in width
      314 mm
    • Built-in depth
      89 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Snap on lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    Encl.,gamma,surface m.,26 M,version FR
    PDF
    1,48 MB
    Hager REACH declaration VF9101
    PDF
    Hager RoHS report VF9101
    PDF

    Downloads

    • Product image

      Image VF9101 | Hager

      Product Image VF9101

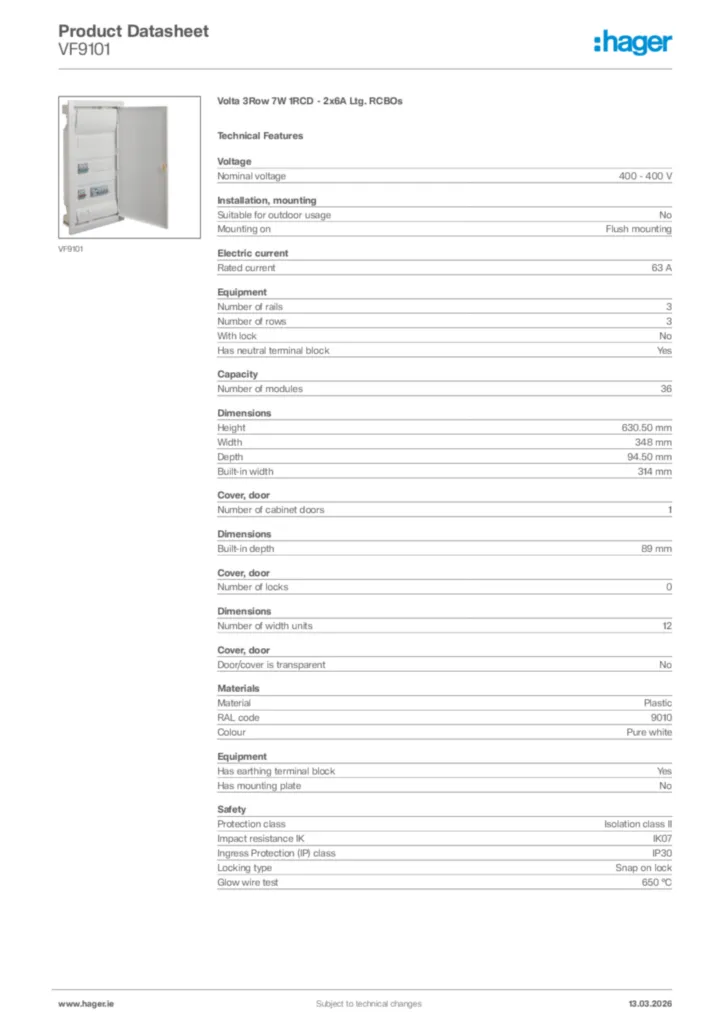

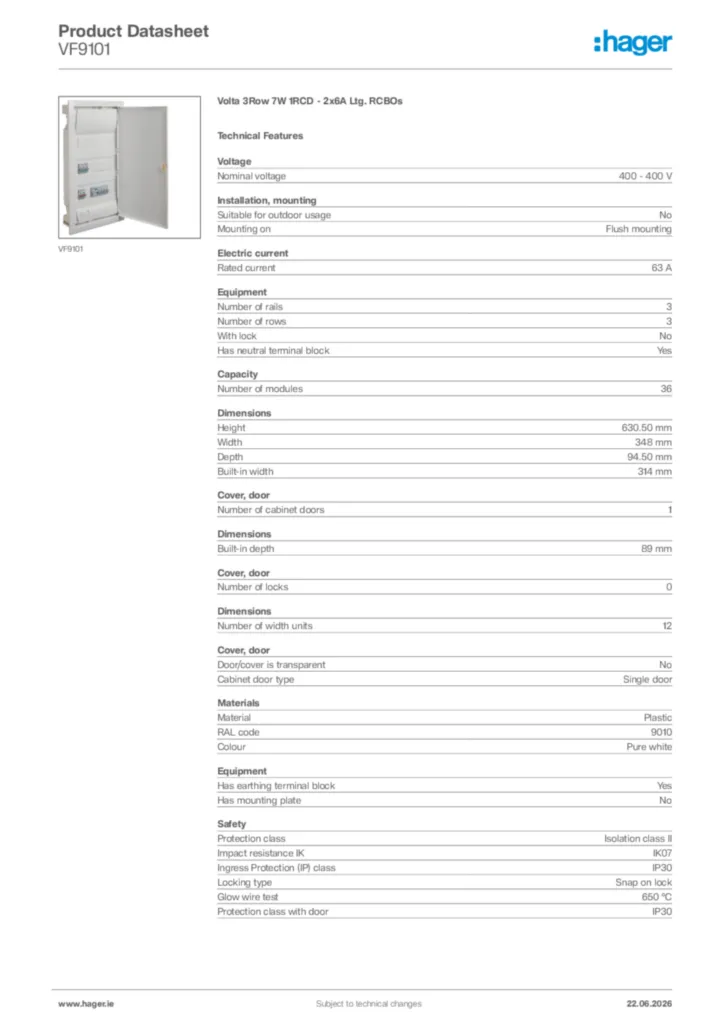

    • Product datasheet

      Image Hager Product data sheet VF9101 | Hager

      Hager Product data sheet VF9101

      Volta 3Row 7W 1RCD - 2x6A Ltg. RCBOs

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-11-14

      PDF
      150,14 kB
