Volta 4Row 7W 1RCD - 2x6A Ltg. RCBOs VF10101
EAN
3250619925714
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Push-in terminal 12 products available -
Door/operating panel 2 products available -
Quick-release fastener for housing covers 1 products available -
Lock system 1 products available -
Cross-connector for terminal block 1 products available -
See more 5 other products available
Complete your system
-
KN06E
Terminal,QC,earth, 6 connections
-
KN06NTerminal,QuickConnect,neutral,6 connections
-
KN10NTerminal,QuickConnect,neutral,10 connections
-
KN14ETerminal,QuickConnect,earth,14 connections
-
KN14NTerminal,QuickConnect,neutral,14 connections
-
KN18ETerminal,QuickConnect,earth,18 connections
-
KN18NTerminal,QuickConnect,neutral,18 connections
-
KN22ETerminal,QuickConnect,earth,22 connections
-
KN22NTerminal,QuickConnect,neutral,22 connections
-
KN26ETerminal,QuickConnect,earth,26 connections
-
KN26NTerminal,QuickConnect,neutral,26 connections
-
KN99ETerminal,QC,earth,jumper,1 Set=10piece
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onFlush mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails4
-
Number of rows4
-
With lockNo
-
Has mounting plateNo
Capacity
-
Number of modules48
Dimensions
-
Height755 mm
-
Width348 mm
-
Depth94.50 mm
-
Built-in depth89 mm
-
Number of width units12
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentNo
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
-
Locking typeSnap on lock
-
Glow wire test650 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Declaration of conformity
Declaration

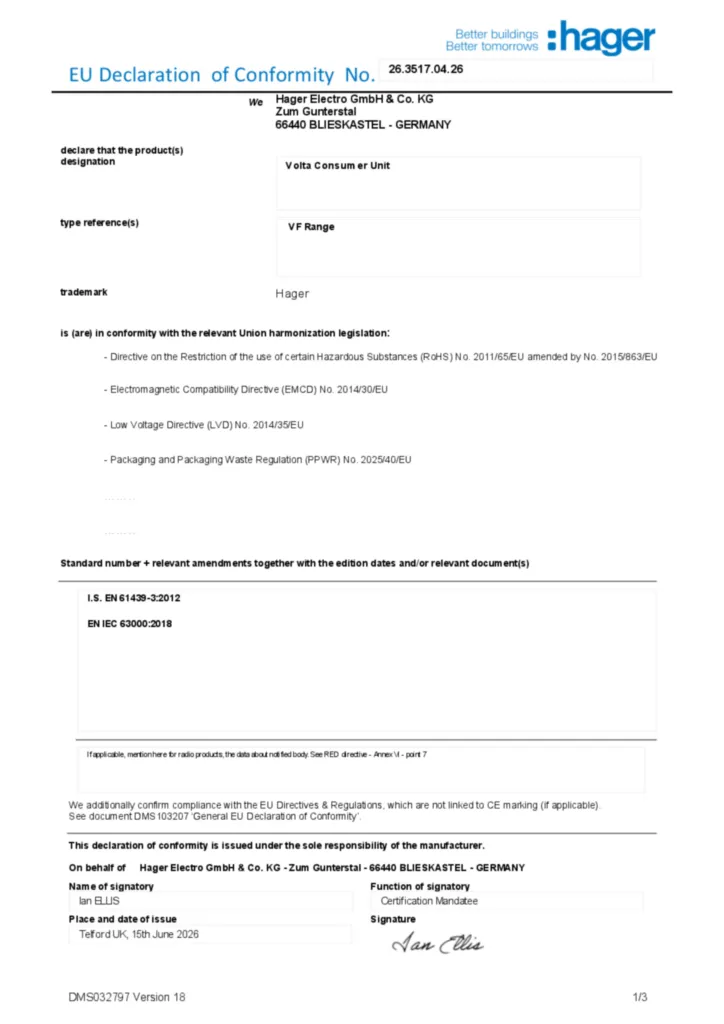

Declaration of conformity International 2022-11-14
PDF150,14 kB
More documentation
