Small distributor,vega,surface,2row,36M,IP40,brass-terminal,PE,white door VB218J
EAN
3250611019442
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Lock system 2 products available -
Components for arrangement/baying system 2 products available
Complete your system

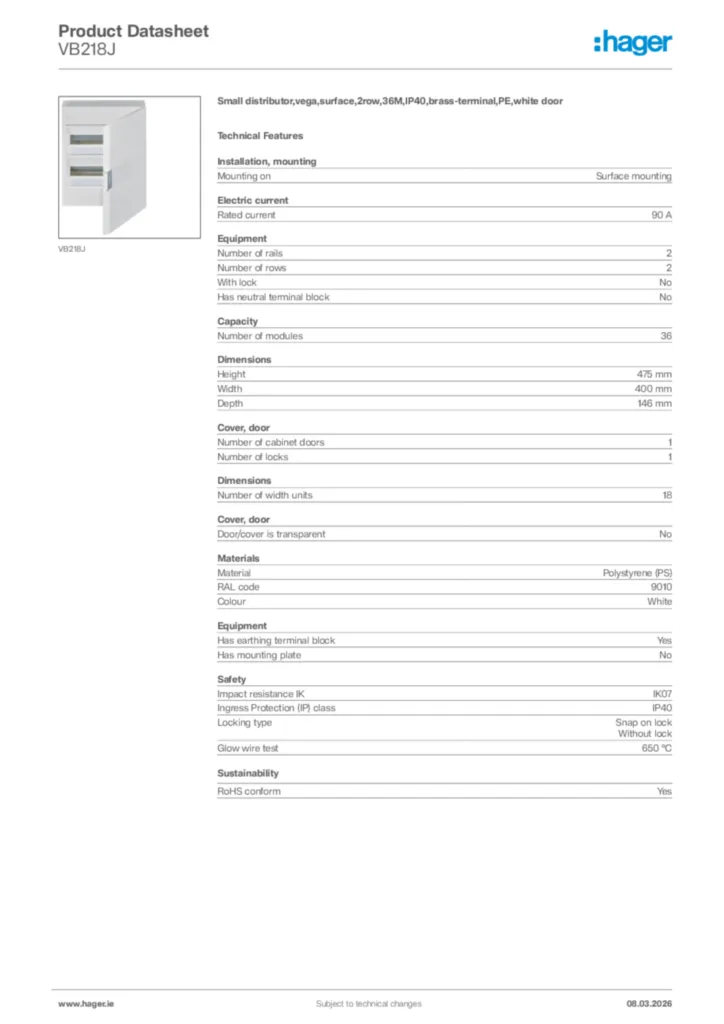

Technical properties
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current90 A
Equipment
-
Number of rails2
-
Number of rows2
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules36
Dimensions
-
Height475 mm
-
Width400 mm
-
Depth146 mm
-
Number of width units18
Cover, door
-
Number of cabinet doors1
-
Number of locks1
-
Door/cover is transparentNo
Materials
-
MaterialPolystyrene (PS)
-
RAL code9010
-
ColourWhite
Safety
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Installation manual International 2015-07-13
PDF7,72 MB -
Product certificate
Product certificate International 2024-03-19
PDF3,01 MB
Product certificate en-GB, fr-FR 2019-01-16
PDF925,70 kB
Product certificate en-GB, fr-FR 2019-01-16
PDF931,80 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-02-22
PDF224,79 kB
Declaration of conformity International 2023-09-13
PDF321,32 kB
