    • Distri­bu­tion systems
    • Enclos­ures up to 160A
    • Vega enclos­ures
    • VB218W
    catalog.pageproduct.product.info.ean
    3250611019794
    catalog.pageproduct.product.info.packqty
    1 catalog.pageproduct.product_base_unit_piece.span
    • Vega enclos­ures

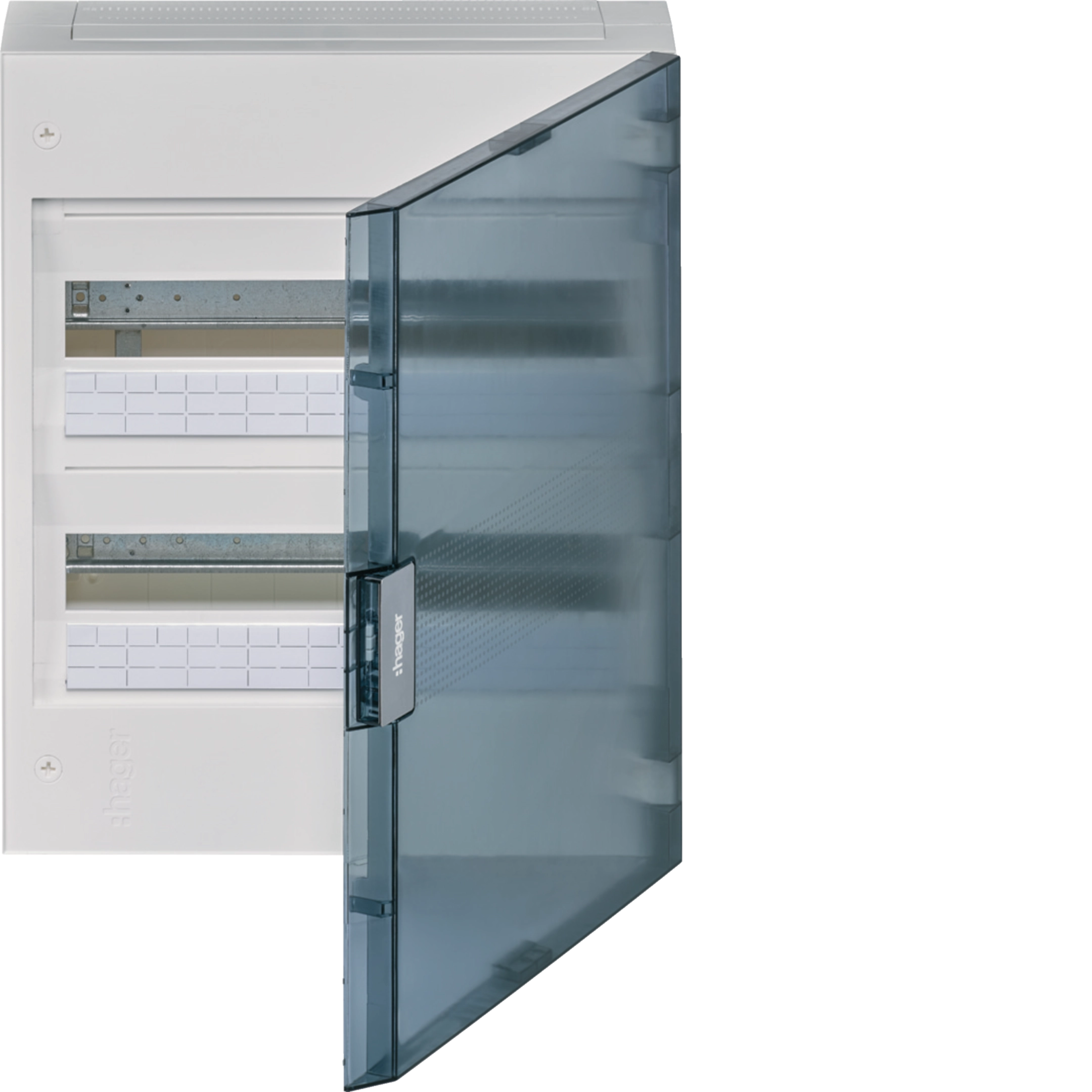

    Small distributor,vega,surface,2row,36M,IP40,QC-terminal,PE,transparent door VB218W

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Small distributor,vega,surface,2row,36M,IP40,QC-terminal,PE,transparent door

    VB218W

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    product.page.accessories.title

    product.page.accessories.associated-products

    • Door/­op­er­ating panel 1 product.page.accessories.products-available
    • Lock system 2 product.page.accessories.products-available
    • Compon­ents for arrange­ment/baying system 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Door/­op­er­ating panel
    • Lock system
    • Compon­ents for arrange­ment/baying system
    • VZ218P

      Door, vega, white, 36M, 2row, including door hinges
      €0.00  / *
    • VZ310TVB

      Key lock, vega, type 1242E, 2 keys, for transparent doors, 1-4row
      €0.00  / *
    • VZ310PVB

      Key lock, vega, type 1242E, 2 keys, for white doors, 1-4row
      €0.00  / *
    • VZ005VB

      Kit for connection, vega, horizontal, internal wiring, for 1-4 row enclosure
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current IN
      90 A
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • With lock
      catalog.pageproduct.attribute_boolean.no
    • Has neutral terminal block
      catalog.pageproduct.attribute_boolean.no
    • Has earthing terminal block
      catalog.pageproduct.attribute_boolean.yes
    • Has mounting plate
      catalog.pageproduct.attribute_boolean.no
    Capa­city
    • Number of modules
      36
    Dimen­sions
    • Height
      475 mm
    • Width
      400 mm
    • Depth
      146 mm
    • Number of width units
      18
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      catalog.pageproduct.attribute_boolean.yes
    Mater­ials
    • Material
      Poly­styrene (PS)
    • RAL code
      9010
    • Colour
      White
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C
    • Protec­tion class with door
      IP40

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Encl.,gamma,surface m.,26 M,version FR (English)
    PDF
    1,48 MB
    REACH declaration VB218W
    PDF
    RoHS report VB218W
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div VB218W

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

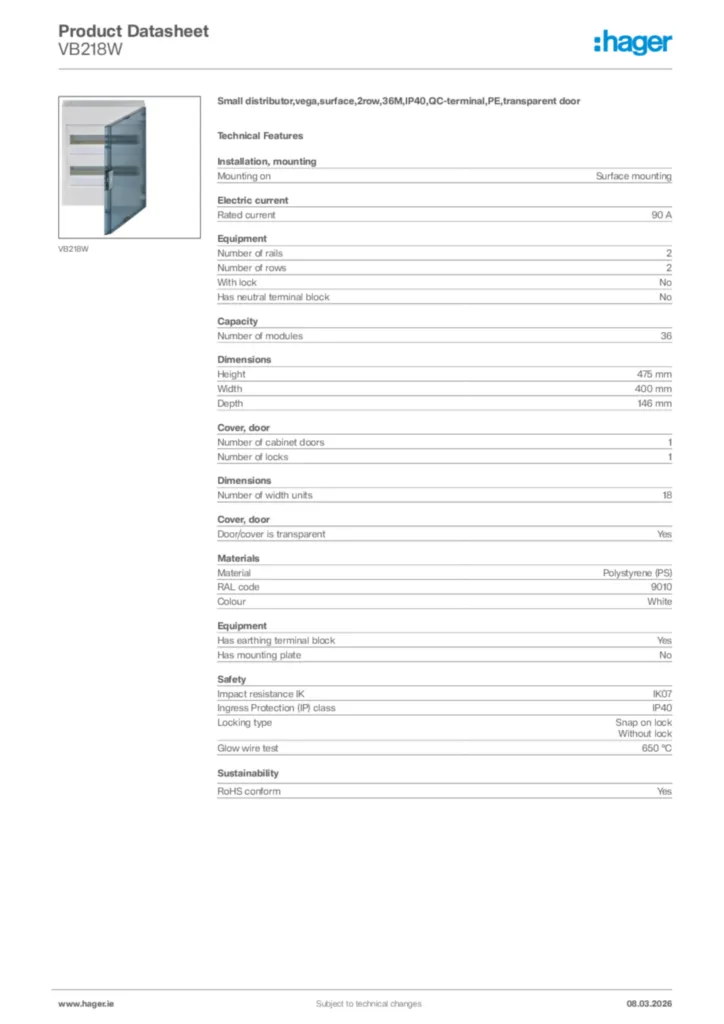

      Hager Product data sheet VB218W

      Small distributor,vega,surface,2row,36M,IP40,QC-terminal,PE,transparent door

      PDF

    • ProductInstallationManual

      catalog.pagelevel.alt_image.img

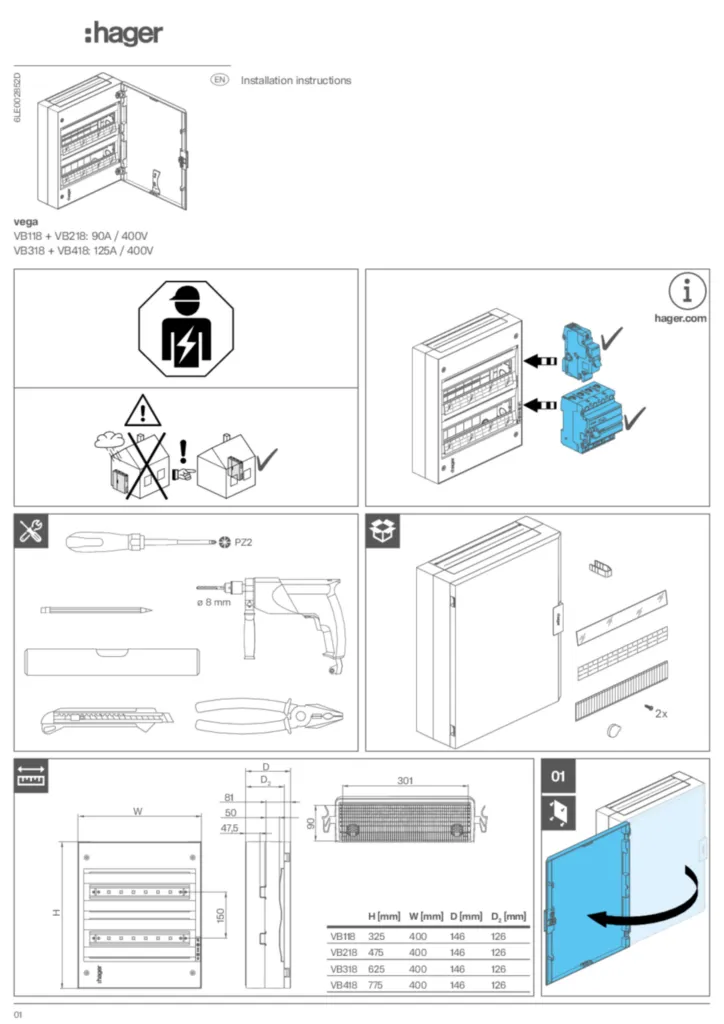

      Installation manual en-GB 2026-09-03

      PDF
      8,69 MB

    • ProductBimModels

      catalog.pagelevel.alt_image.img

      Range:VEGA-Enclosures_Surface_mounted-IP40-With_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,17 MB
      catalog.pagelevel.alt_image.img

      Range:VEGA-Enclosures_Surface_mounted-IP40-With_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,17 MB

    • ProductInspectionCertificate

      catalog.pagelevel.alt_image.img

      Product certificate International 2024-03-19

      PDF
      3,01 MB
      catalog.pagelevel.alt_image.img

      Product certificate en-GB, fr-FR 2019-01-16

      PDF
      925,70 kB
      catalog.pagelevel.alt_image.img

      Product certificate en-GB, fr-FR 2019-01-16

      PDF
      931,80 kB

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      Declaration of conformity International 2023-09-13

      PDF
      321,32 kB
      catalog.pagelevel.alt_image.img

      Declaration of conformity en-GB 2026-07-22

      PDF
      472,58 kB
