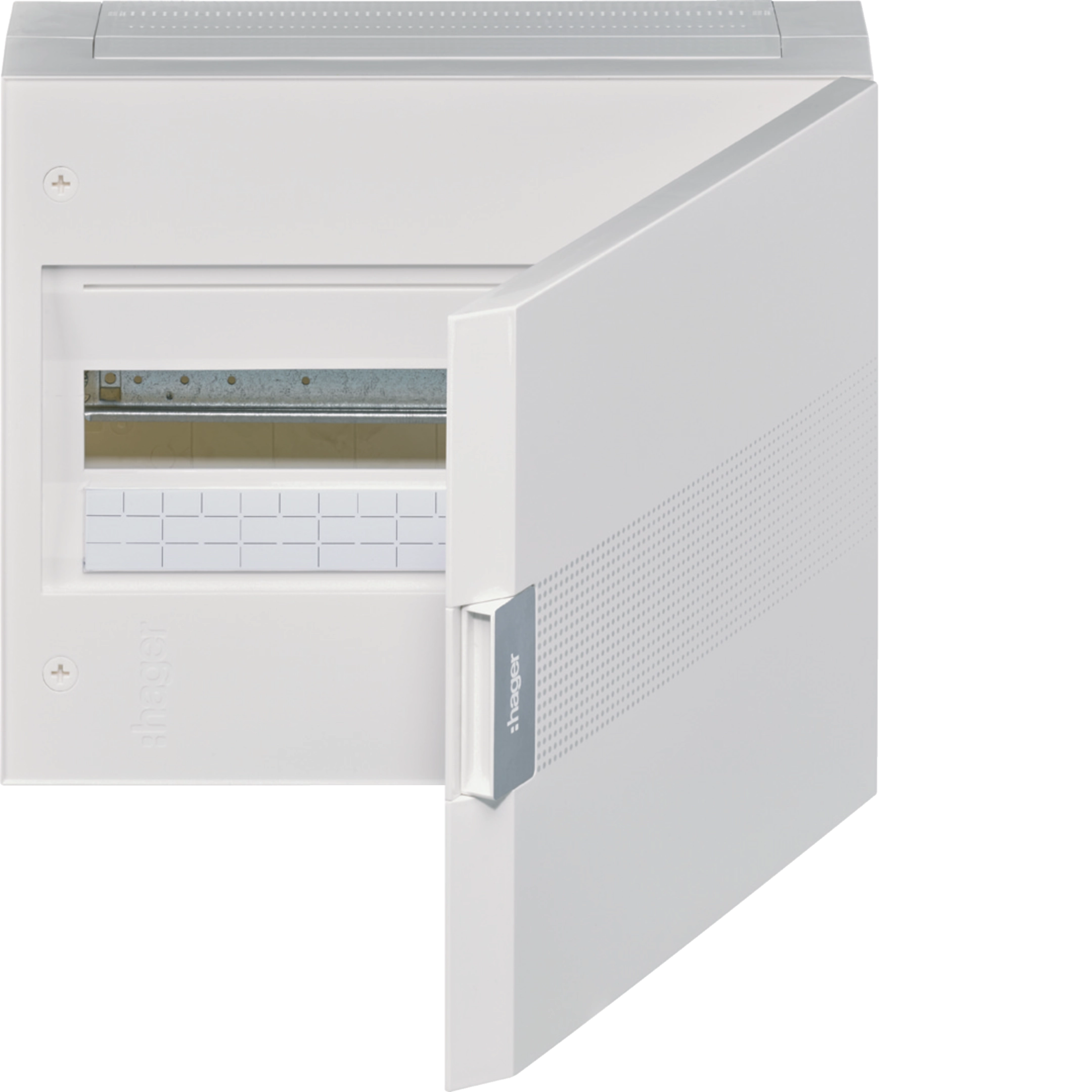

Small distributor,vega,surface,1row,18M,IP40,brass-terminal,PE,white door

VB118J

VB118J - Small distributor,vega,surface,1row,18M,IP40,brass-terminal,PE,white door
  • Distri­bu­tion systems

Small distributor,vega,surface,1row,18M,IP40,brass-terminal,PE,white door VB118J

EAN
3250611019428
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Door/­op­er­ating panel 2 products available
  • Lock system 2 products available
  • Compon­ents for arrange­ment/baying system 2 products available

Complete your system

  • Door/­op­er­ating panel
  • Lock system
  • Compon­ents for arrange­ment/baying system
  • VZ118P

    Door,vega,white,18M,1row,inkcluding door hinges
    0.00 €  / *
    Add to a list
    Add to a list
  • VZ118T

    Door,vega,transparent,18M,1row,including door hinges
    0.00 €  / *
    Add to a list
    Add to a list
  • VZ310PVB

    Key lock,vega,type 1242E,2 keys,for white doors,1-4row
    0.00 €  / *
    Add to a list
    Add to a list
  • VZ310TVB

    Key lock,vega,type 1242E,2 keys,for transparent doors,1-4row
    0.00 €  / *
    Add to a list
    Add to a list
  • VZ005VB

    Kit for connection,vega,horizontal,internal wiring,for 1-4 row enclosure
    0.00 €  / *
    Add to a list
    Add to a list
  • VZ006VB

    Kit for connection,vega,vertical,internal wiring,for 1-4 row enclosure
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Install­a­tion, mounting
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    90 A
Equip­ment
  • Number of rails
    1
  • Number of rows
    1
  • With lock
    No
  • Has neutral terminal block
    No
  • Has earthing terminal block
    Yes
  • Has mounting plate
    No
Capa­city
  • Number of modules
    18
Dimen­sions
  • Height
    325 mm
  • Width
    400 mm
  • Depth
    146 mm
  • Number of width units
    18
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    1
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Poly­styrene (PS)
  • RAL code
    9010
  • Colour
    White
Safety
  • Impact resist­ance IK
    IK07
  • Ingress Protec­tion (IP) class
    IP40
  • Locking type
    Snap on lock, Without lock
  • Glow wire test
    650 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration VB118J (english)
PDF
103,10 kB
RoHS declaration VB118J (english)
PDF
103,84 kB

Downloads

  • Product image

    Image VB118J | Hager

    Product Image VB118J

  • Installation manual

    Image Installation manual International 2015-07-13 | Hager

    Installation manual International 2015-07-13

    PDF
    7,72 MB

  • Product certificate

    Image Product certificate International 2024-03-19 | Hager

    Product certificate International 2024-03-19

    PDF
    3,01 MB
    Image Product certificate en-GB, fr-FR 2019-01-16 | Hager

    Product certificate en-GB, fr-FR 2019-01-16

    PDF
    925,70 kB
    Image Product certificate en-GB, fr-FR 2019-01-16 | Hager

    Product certificate en-GB, fr-FR 2019-01-16

    PDF
    931,80 kB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-02-22

    PDF
    224,79 kB
    Image Declaration of conformity International 2023-09-13 | Hager

    Declaration of conformity International 2023-09-13

    PDF
    321,32 kB
More documentation
