Cartridge T2 1P photovoltaic +/- for SPV340

SPV040

  • Modular devices

Cartridge T2 1P photovoltaic +/- for SPV340 SPV040

EAN
3250615514950
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • Documentations
  • More products

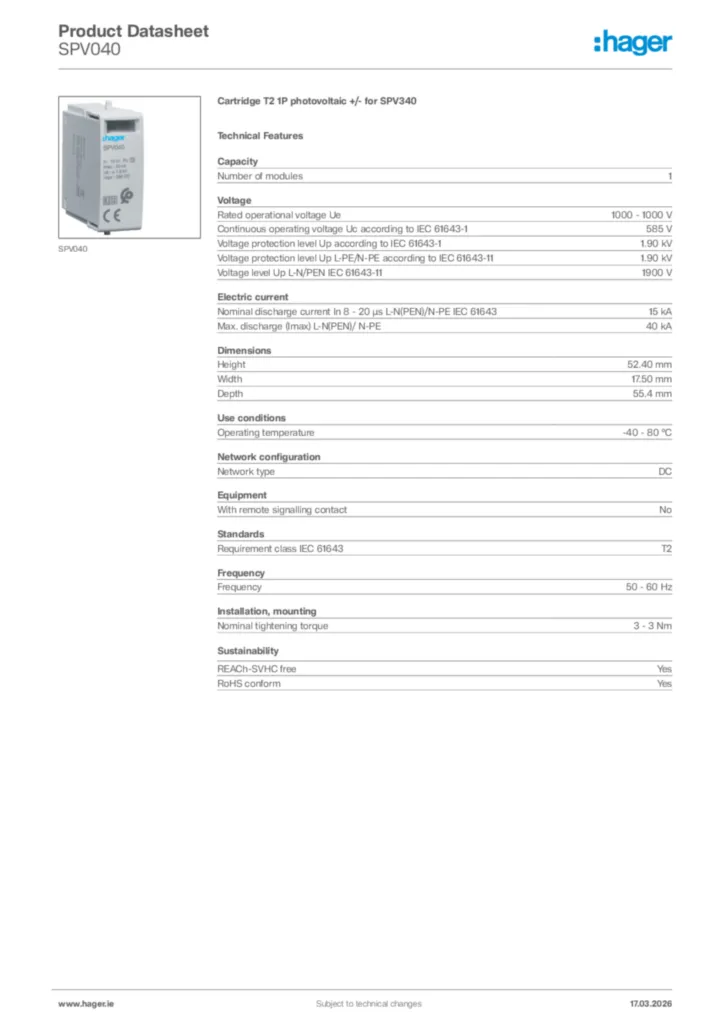

Download the data sheet

Technical properties

Capa­city
  • Number of modules
    1
Voltage
  • Rated oper­a­tional voltage Ue
    1,000 - 1,000 V
  • Continuous oper­ating voltage Uc according to IEC 61643-1
    585 V
  • Voltage protec­tion level Up according to IEC 61643-1
    1.90 kV
  • Voltage protec­tion level Up L-PE/N-PE according to IEC 61643-11
    1.90 kV
  • Voltage level Up L-N/PEN IEC 61643-11
    1,900 V
Elec­tric current
  • Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643
    15 kA
  • Max. discharge (Imax) L-N(PEN)/ N-PE
    40 kA
Dimen­sions
  • Height
    52.40 mm
  • Width
    17.50 mm
  • Depth
    55.4 mm
Use condi­tions
  • Oper­ating temper­ature
    -40 - 80 °C
Network config­ur­a­tion
  • Network type
    DC
Equip­ment
  • With remote signalling contact
    No
Stand­ards
  • Require­ment class IEC 61643
    T2
Frequency
  • Frequency
    50 - 60 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    3 - 3 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

PEP_HAGER_HAGE_00444_V01.01_EN_27082021.PDF
PDF
231,28 kB
REACH declaration SPV040 (english)
PDF
103,10 kB
RoHS declaration SPV040 (english)
PDF
103,59 kB

Downloads

  • Product image

    Image SPV040  | Hager

    Product Image SPV040

  • Declaration of conformity

    Image Declaration of conformity for Lightning rod T2 photovoltaic  | Hager

    Declaration of conformity for Lightning rod T2 photovoltaic

    Declaration of conformity International 2020-11-27

    PDF
    250,50 kB
