    • SPB140R
    EAN
    3250615515407
    Packaging
    1 Piece
    • Surge Protec­tion Device (SPD)

    Surge Protection Device 1P T2 TNC Uc 275V In 20kA Imax 40kA remote contact SPB140R

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Surge Protection Device 1P T2 TNC Uc 275V In 20kA Imax 40kA remote contact

    SPB140R

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems 2 products available

    Complete your system

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems
    • SPB040D

      Cartridge L-N Uc 275V In 20kA Imax 40kA Up 1, 35kV
      €0.00  / *
    • SPB040N

      Cartridge N-PE Uc 260V In 20kA Imax 40kA Up 1.5kV
      €0.00  / *

    Technical properties

    Archi­tec­ture
    • Type of pole
      1P
    Capa­city
    • Number of modules
      1
    Voltage
    • Rated oper­a­tional voltage Ue
      240 - 415 V
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      275 V
    • Voltage protec­tion level Up according to IEC 61643-1
      1.35 kV
    • Rated oper­a­tional voltage AC (signal contact)
      5 - 250 V
    • Rated oper­a­tional voltage DC (signal contact)
      30 - 30 V
    • Type voltage supply
      AC
    • Mode of protec­tion design
      Voltage-lim­iting type
    • Refer­ence test voltage Utest AC
      255 V
    • Overvoltage category according to IEC 60947-1
      3
    • Nominal voltage
      240 - 415 V AC ± 10%
    Elec­tric current
    • Short-­cir­cuit current rating (Isccr)
      25 kA
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      125 A
    • Max. over­cur­rent protec­tion device, series connec­tion (fuse)
      80 A
    • Nominal discharge current In
      20 kA
    • Rated oper­a­tional current AC (signal contact)
      0.005 - 1 mA
    • Rated oper­a­tional current DC (signal contact)
      1 - 1 A
    • Max. discharge current (Imax)
      40 kA
    • Residual current Ipe
      ≤ 0.45 mA
    Dimen­sions
    • Height
      96.8 mm
    • Width
      17.6 mm
    • Depth
      58.20 mm
    • Strip­ping length
      16 mm
    • Strip­ping length (signal contact)
      7 mm
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2,000 m
    Network config­ur­a­tion
    • Network type
      TN, TT
    • Network TN
      Yes
    • Network TN-C
      No
    • Network TN-C-S
      No
    • Network TN-S
      No
    • Network TT
      Yes
    • Network IT
      No
    • Network DC
      No
    Equip­ment
    • With remote signalling contact
      Yes
    • Rated load current IL
      80 A
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion flex­ible conductor (signal contact)
      0.14 -1.5 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    • Cross-sec­tion rigid conductor (signal contact)
      0.14 - 1.5 mm²
    • Connect­or/plug type
      Screw terminal
    • Number of connec­tions
      1
    • Switching contact (signal contact)
      Changeover contact
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3 - 4.5 Nm
    • Suit­able for indoor usage
      Yes
    Config­ur­a­tion
    • With integ­rated protec­tion fuse
      No
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    • Type of connec­tion (signal contact)
      Plug-in connec­tion, Screw connec­tion
    Func­tions
    • Discon­nector indic­a­tion
      Optical, Remote signalling
    • Suit­able for addi­tional system config­ur­a­tion
      No
    Fuse
    • Fuse char­ac­ter­istics
      gG
    Internal use only
    • Number of half modules of 17,5 mm
      2
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD
    Safety
    • Mode of protec­tion
      L-N, L-PEN
    • Current trip­ping factor k
      1.6
    • TOV beha­viour at UT
      350 V AC (5 s / with­stand mode), 460 V AC (120 min / safe failure mode)
    • Protec­tion class
      Isol­a­tion class II
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Poly­amide (PA), Poly­ester
    Use
    • Is access­ible
      Yes

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration SPB140R
    PDF
    RoHS report SPB140R
    PDF

    Downloads

    • Product image

      Image SPB140R | Hager

      Product Image SPB140R

    • Product datasheet

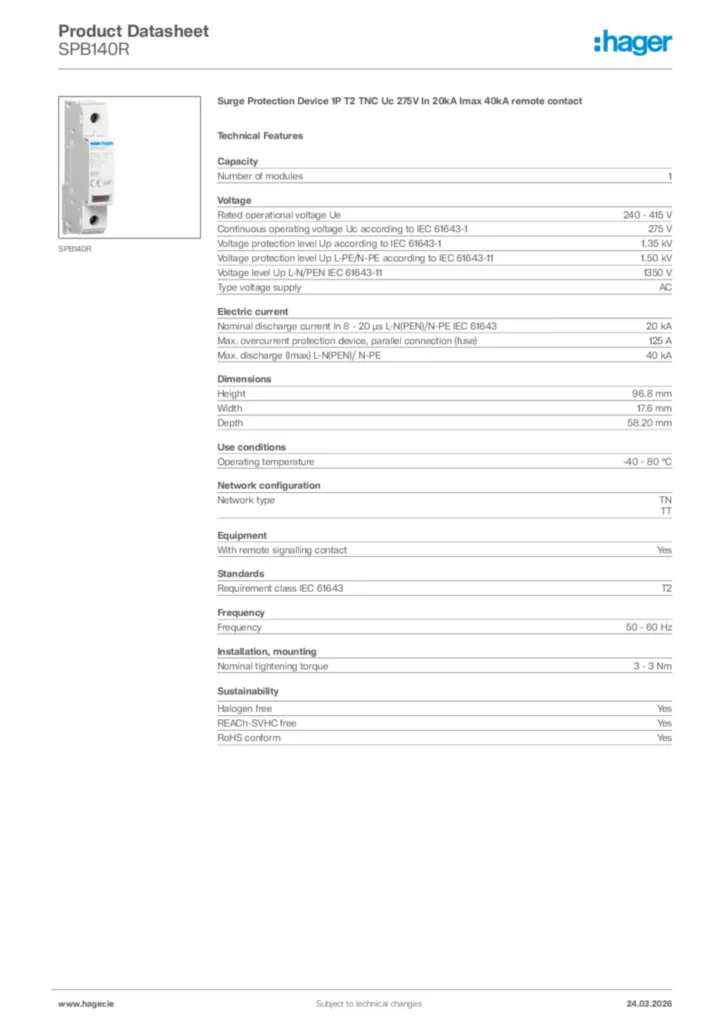

      Image Hager Product data sheet SPB140R | Hager
