    • catalog.pagelevel.title_breadcrumb.home
    • catalog.pagelevel.title_breadcrumb.first
    • Modular devices
    • Protec­tion and accessories
    • Surge Protec­tion Device (SPD)
    • SPB140D
    catalog.pageproduct.product.info.ean
    3250615515391
    catalog.pageproduct.product.info.packqty
    1 catalog.pageproduct.product_base_unit_piece.span
    • Surge Protec­tion Device (SPD)

    Surge Protection Device 1P T2 TNC Uc 275V In 20kA Imax 40kA SPB140D

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Surge Protection Device 1P T2 TNC Uc 275V In 20kA Imax 40kA

    SPB140D

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    product.page.accessories.title

    product.page.accessories.associated-products

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems 2 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems
    • SPB040D

      Cartridge L-N Uc 275V In 20kA Imax 40kA Up 1, 35kV
      €0.00  / *
    • SPB040N

      Cartridge N-PE Uc 260V In 20kA Imax 40kA Up 1.5kV
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Capa­city
    • Number of modules
      1
    Voltage
    • Continuous oper­ating voltage Uc
      275 V
    • Voltage protec­tion level Up
      1.35 kV
    • Mode of protec­tion design
      Voltage-lim­iting type
    • Type voltage supply
      AC
    • Refer­ence test voltage Utest AC
      255 V
    • Overvoltage category according to IEC 60947-1
      3
    • Nominal voltage
      240 - 415 V AC ± 10%
    Elec­tric current
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      125 A
    • Max. over­cur­rent protec­tion device, series connec­tion (fuse)
      80 A
    • Max. discharge current (Imax)
      40 kA
    • Nominal discharge current In 8 - 20 µs N-PE
      20 kA
    • Short-­cir­cuit current rating (Isccr)
      25 kA
    • Residual current Ipe
      ≤ 0.45 mA
    Dimen­sions
    • Height
      89.80 mm
    • Width
      17.6 mm
    • Depth
      65.7 mm
    • Strip­ping length
      16 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Protec­tion class
      Isol­a­tion class II
    • Mode of protec­tion
      L-N, L-PEN
    • Current trip­ping factor k
      1.6
    • TOV beha­viour at UT
      350 V AC (5 s / with­stand mode), 460 V AC (120 min / safe failure mode)
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2,000 m
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Poly­amide (PA), Ther­mo­plastic
    Network config­ur­a­tion
    • Network type
      TN, TT
    • Network TN
      catalog.pageproduct.attribute_boolean.yes
    • Network TN-C
      catalog.pageproduct.attribute_boolean.no
    • Network DC
      catalog.pageproduct.attribute_boolean.no
    • Network IT
      catalog.pageproduct.attribute_boolean.no
    • Network TT
      catalog.pageproduct.attribute_boolean.yes
    • Network TN-C-S
      catalog.pageproduct.attribute_boolean.no
    • Network TN-S
      catalog.pageproduct.attribute_boolean.no
    Equip­ment
    • With remote signalling contact
      catalog.pageproduct.attribute_boolean.no
    • Rated load current IL
      80 A
    Connec­tion
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1.5 - 25.0 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      1.5 - 35.0 mm²
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    • Connect­or/plug type
      Screw terminal
    • Number of connec­tions
      1
    Stand­ards
    • Surge protec­tion device type
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3 - 4.5 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Vertical
    • Suit­able for indoor usage
      catalog.pageproduct.attribute_boolean.yes
    Archi­tec­ture
    • Type of pole
      1P
    Config­ur­a­tion
    • With integ­rated protec­tion fuse
      catalog.pageproduct.attribute_boolean.no
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    Controls and indic­ators
    • With indic­ator lamp
      catalog.pageproduct.attribute_boolean.yes
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    • Suit­able for addi­tional system config­ur­a­tion
      catalog.pageproduct.attribute_boolean.no
    Fuse
    • Fuse char­ac­ter­istics
      gG
    Internal use only
    • Number of half modules of 17,5 mm
      2
    • Standard
      IEC/EN 61643-11
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration SPB140D
    PDF
    RoHS report SPB140D
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div SPB140D

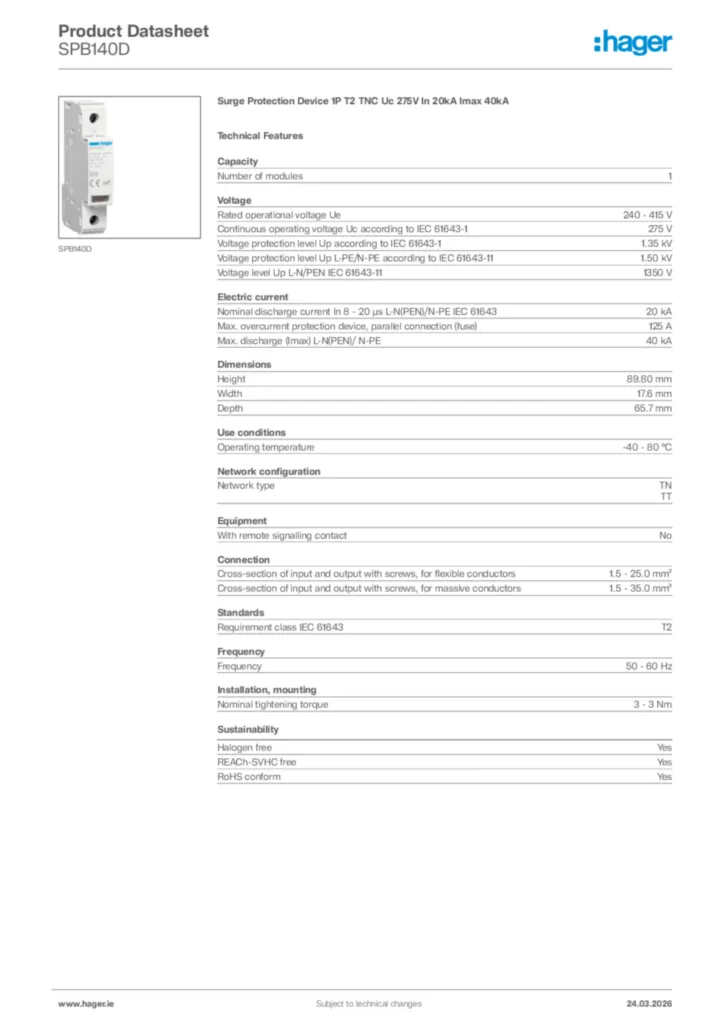

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

      Hager Product data sheet SPB140D

      Surge Protection Device 1P T2 TNC Uc 275V In 20kA Imax 40kA

      PDF

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      Declaration of conformity en-US 2026-07-15

      PDF
      269,03 kB
