MCB 1P 10kA/15kA D-3A 1M NDN103A

EAN
3250614618895
Packaging
12 Pieces

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

MCB 1P 10kA/15kA D-3A 1M

NDN103A

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Locking inter­locking func­tions 1 products available
  • Terminal cover 1 products available
  • Shunt release 1 products available
  • Auxil­i­aries contact block 2 products available
  • Modular phase busbar 1 products available

Complete your system

  • Locking inter­locking func­tions
  • Terminal cover
  • Shunt release
  • Auxil­i­aries contact block
  • Modular phase busbar
  • MZN175

    Padlockable locking kit for MCB, RCCB and RCBO
    0.00 €  / *
  • MZN120

    Terminal shield / screw shield for MCB
    0.00 €  / *
  • MZ203

    Shunt trip 230-415V AC 110-130V DC
    0.00 €  / *
  • MZ202

    Alarm contact 1C+1O 6A 240V AC
    0.00 €  / *
  • MZ201

    Auxiliary contact 1C+1O 6A 240V AC
    0.00 €  / *
  • KDN163A

    Insulated busbar 1P 63A fork 10mm² 12M
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    3 A
  • Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1
    10 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
    15 kA
  • Rated current -25°C
    3.76 A
  • Rated current at -20°C
    3.69 A
  • Rated current -15°C
    3.63 A
  • Rated current -10°C
    3.57 A
  • Rated current -5°C
    3.50 A
  • Rated current at 0°C
    3.44 A
  • Rated current 5°C
    3.38 A
  • Rated current 10°C
    3.32 A
  • Rated current 15°C
    3.26 A
  • Rated current at 20°C
    3.21 A
  • Rated current 25°C
    3.15 A
  • Rated current 30°C
    3 A
  • Rated current 35°C
    2.97 A
  • Rated current at 40°C
    2.93 A
  • Rated current at 45°C
    2.91 A
  • Rated current at 50°C
    2.87 A
  • Rated current 55°C
    2.86 A
  • Rated current 60°C
    2.85 A
  • Rated current 65°C
    2.84 A
  • Rated current 70°C
    2.83 A
Archi­tec­ture
  • Type of pole
    1P
  • Curve
    D
Capa­city
  • Number of modules
    1
Install­a­tion, mounting
  • Nominal tight­ening torque top terminal
    2.80 - 2.80 Nm
  • Nominal tight­ening torque down terminal
    2.80 - 2.80 Nm
  • Nominal tight­ening torque
    2.80 - 2.80 Nm
  • Type of bottom connec­tion for modular devices
    bicon­nect
  • Type of top connec­tion for modular devices
    Screw terminal
  • 360° mounting posi­tion possible
    Yes
Main elec­trical attrib­utes
  • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
    10 kA
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 400 V
  • Type voltage supply
    AC
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    6,000 V
Frequency
  • Frequency
    50 - 60 Hz
Connec­tion
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 - 35 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 - 25 mm²
  • Cross-sec­tion of input with screws, for flex­ible conductors
    1 - 25 mm²
  • Cross-sec­tion of input with screws, for massive conductors
    1 - 35 mm²
Safety
  • Ingress Protec­tion (IP) class
    IP20
  • Grid distance
    60 mm
Use condi­tions
  • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
    2
  • Oper­ating temper­ature
    -25 - 70 °C
Power
  • Total power loss under IN
    2.24 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    4,000
  • Number of mech­an­ical oper­a­tions
    20,000
Connectivity
  • Type of connec­tion
    Screw terminal
  • Top connec­tion align­ment for modular devices
    Aligned terminal
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Dimen­sions
  • Height
    83 mm
  • Width
    17.50 mm
  • Depth
    70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration NDN103A
PDF
Hager RoHS report NDN103A
PDF

Downloads

  • Product image

    Image NDN103A | Hager

    Product Image NDN103A

  • Product datasheet

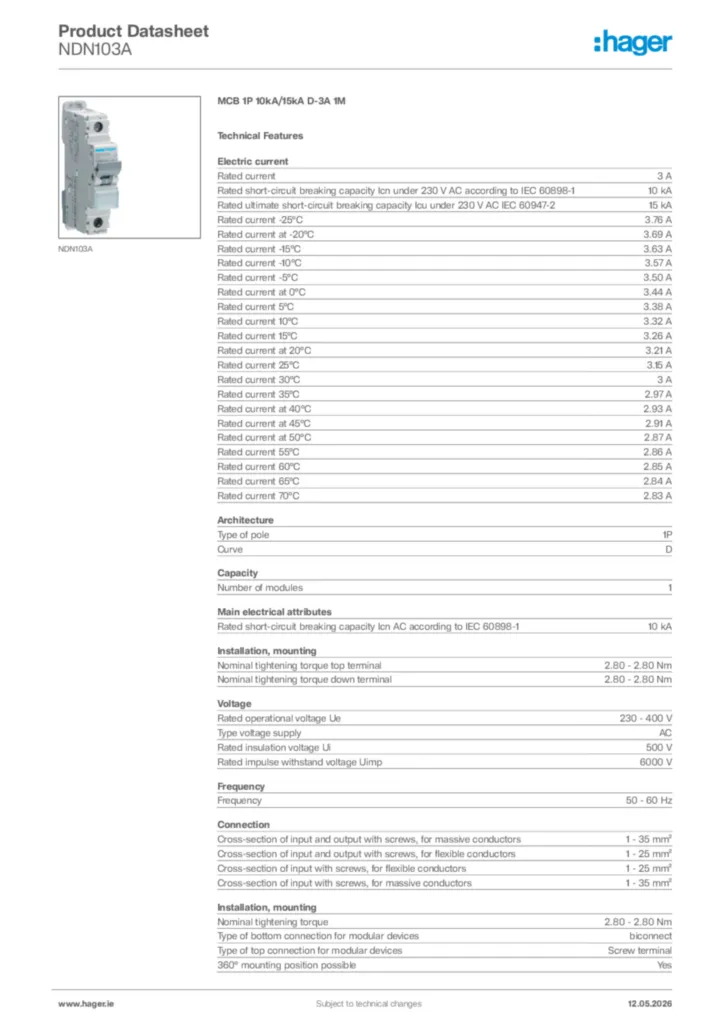

    Image Hager Product data sheet NDN103A | Hager
