    • MLN740A
    EAN
    3250614321030
    Packaging
    12 Pieces

    MCB 1P+N 6kA C-40A 1M MLN740A

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    MCB 1P+N 6kA C-40A 1M

    MLN740A

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Locking inter­locking func­tions 1 products available
    • Mech­anic accessories for low-voltage compon­ents 1 products available
    • Shunt release 1 products available
    • Auxil­i­aries contact block 2 products available
    • Modular phase busbar 2 products available

    Complete your system

    • Locking inter­locking func­tions
    • Mech­anic accessories for low-voltage compon­ents
    • Shunt release
    • Auxil­i­aries contact block
    • Modular phase busbar
    • MZN175

      Padlockable locking kit for MCB, RCCB and RCBO
      0.00 €  / *
    • LZ060

      Heat dissipation insert
      0.00 €  / *
    • MZ203

      Shunt trip 230-415V AC 110-130V DC
      0.00 €  / *
    • MZ202

      Alarm contact 1C+1O 6A 240V AC
      0.00 €  / *
    • MZ201

      Auxiliary contact 1C+1O 6A 240V AC
      0.00 €  / *
    • KB163P

      Insulated busbar 1P 63A prong 10mm² brown 13M
      0.00 €  / *
    • KBN663C

      Insulated busbar3P+N 63A prong 10mm² 48C for MCB 1P+N 1 module
      0.00 €  / *

    Technical properties

    Archi­tec­ture
    • Type of pole
      1P+N
    Elec­tric current
    • Rated current
      40 A
    • Rated service breaking capa­city Ics AC according to IEC 60898-1
      6 kA
    • Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1
      6 kA
    • Min./max. threshold value of the AC thermal oper­a­tion
      1.13 - 1.45 A
    • Min./max. threshold value of the DC thermal oper­a­tion
      1.13 - 1.45 A
    • Correc­tion factor of rating current for 2 devices placed side by side
      1
    • Correc­tion factor of rating current for 3 devices placed side by side
      0.95
    • Correc­tion factor of rating current for 4 and 5 devices placed side by side
      0.90
    • Correc­tion factor of rating current for 6 devices placed side by side
      0.85
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      6 kA
    Install­a­tion, mounting
    • Nominal tight­ening torque down terminal
      1.90 - 1.90 Nm
    • Nominal tight­ening torque top terminal
      1.90 - 1.90 Nm
    • Type of top connec­tion for modular devices
      Screw terminal
    • Type of bottom connec­tion for modular devices
      Screw terminal
    • Nominal tight­ening torque
      1.90 - 1.90 Nm
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 240 V
    • Type voltage supply
      AC
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4,000 V
    • Max. oper­ating voltage
      253 V
    • Overvoltage category according to IEC 60947-1
      3
    Frequency
    • Frequency
      50 - 60 Hz
    Capa­city
    • Number of modules
      1
    Power
    • Total power loss under IN
      7.10 W
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 70 °C
    • Max. Alti­tude
      2,000 m
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      1,000
    • Number of mech­an­ical oper­a­tions
      20,000
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Top connec­tion align­ment for modular devices
      Shifted terminal
    • Down connec­tion align­ment for modular devices
      Shifted terminal
    Connec­tion
    • Cross-sec­tion of input with screws, for massive conductors
      1 - 25 mm²
    • Cross-sec­tion of input with screws, for flex­ible conductors
      1 - 16 mm²
    Dimen­sions
    • Height
      84.70 mm
    • Width
      17.50 mm
    • Depth
      70 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    MCB 1P 6kA B-16A, 1 module
    PDF
    67,85 MB
    Hager REACH declaration MLN740A
    PDF
    RoHS report MLN740A
    PDF

    Downloads

    • Product image

      Image MLN740A | Hager

      Product Image MLN740A

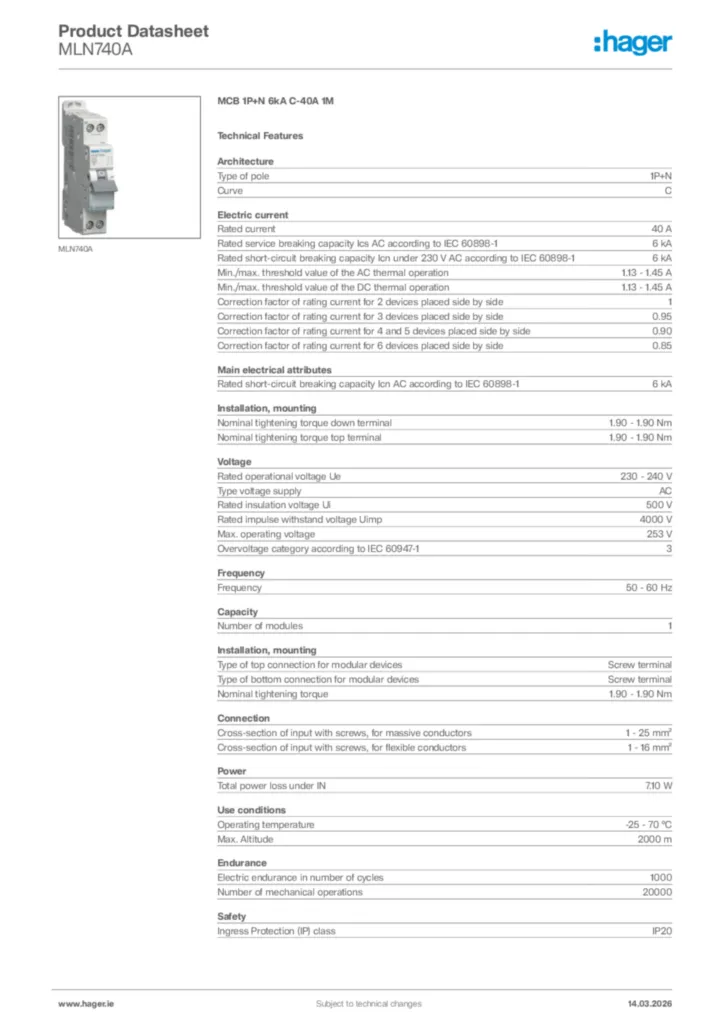

    • Product datasheet

      Image Hager Product data sheet MLN740A | Hager

      Hager Product data sheet MLN740A

      MCB 1P+N 6kA C-40A 1M

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-07-16

      PDF
      89,49 kB
